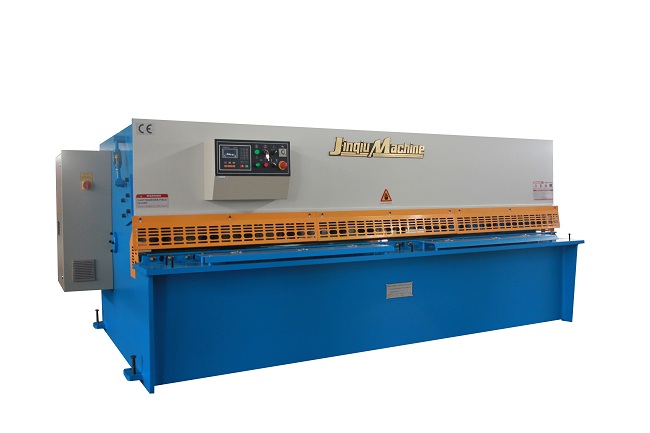

■ The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation. ■ Stepless control for the stroke; the gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety. ■ The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.
■ The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation. ■ Stepless control for the stroke; the gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety. ■ The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.
Model
Cutting Thickness (mm)
Cutting Width (mm)
Cutting Angle ( 0 )
Backgauge Range (mm)
Stroke Number (times/min)
Main Motor (kw)
Weight (kg)
Overall Dimensions (LXWXH in mm)
QC12K-4X2500
4
2500
1°30′
20-600
≥16
5.5
3400
3100X1500X1550
QC12K-4X3200
4
3200
1°30′
20-600
≥13
5.5
4300
3800X1550X1600
QC12K-4X4000
4
4000
1°30′
20-600
≥10
5.5
6500
4600X1800X1700
QC12K-4X6000
4
6000
1°30′
20-800
≥5
7.5
11000
6500 X2050X2200
QC12K-6X2500
6
2500
1°30′
20-600
≥12
7.5
4800
3150X1700X1650
QC12K-6X3200
6
3200
1°30′
20-600
≥11
7.5
6000
3850X1700X1650
QC12K-6X4000
6
4000
1°30′
20-600
≥9
7.5
8200
4650X1850X1700
QC12K-6X6000
6
6000
1°30′
20-800
≥5
11
16500
6780X2100X2300
QC12K-8X2500
8
2500
1°30′
20-600
≥11
11
5500
3180X1700X1700
QC12K-8X3200
8
3200
1°30′
20-600
≥8
11
7200
3880X1830X1720
QC12K-8X4000
8
4000
1°30′
20-600
≥7
11
8800
4680X1900X1750
QC12K-8X6000
8
6000
1°30′
20-800
≥5
18.5
18000
6880X2260X2350
QC12K-10X2500
10
2500
2°
20-600
≥10
15
7500
3180X1800X1700
QC12K-10X3200
10
3200
2°
20-600
≥8
15
8500
3880X1830X1800
QC12K-10X4000
10
4000
2°
20-600
≥8
15
9800
4850X1850X1900
QC12K-10X6000
10
6000
2°
20-800
≥6
18.5
24000
6500 X2100X2300
QC12K-12X2500
12
2500
2°
20-800
≥10
18.5
8600
3300X2030X2000
QC12K-12X3200
12
3200
2°
20-800
≥9
18.5
10700
4000X2150X2000
QC12K-12X4000
12
4000
2°
20-800
≥8
18.5
13000
4800X2230X2150
QC12K-12X5000
12
5000
2°
20-1000
≥6
18.5
16000
5900X2150X2000
QC12K-12X6000
12
6000
2°
20-1000
≥5
18.5
29000
6900X2600X2700
QC12K-16X2500
16
2500
2°30′
20-800
≥9
18.5
11000
3310X2150X2000
QC12K-16X3200
16
3200
2°30′
20-800
≥8
18.5
13800
4030X2150X2000
QC12K-16X4000
16
4000
2°30′
20-800
≥8
18.5
15300
4820X2400X2200
QC12K-16X5000
16
5000
2°30′
20-1000
≥6
22
20000
5900X2600X2700
QC12K-16X6000
16
6000
2°30′
20-1000
≥4
22
36000
7100X2700X2600
QC12K-20X2500
20
2500
2°30′
20-800
≥5
30
16000
3370X2400X2350
QC12K-20X3200
20
3200
2°30′
20-800
≥5
30
18000
4190X2540X2340
QC12K-20X4000
20
4000
2°30′
20-800
≥5
30
21500
4850 X2540X2400
QC12K-25X2500
25
2500
3°
20-800
≥5
37
19000
3450X2650X2650
QC12K-25X3200
25
3200
3°
20-800
≥5
37
23000
4130X2700X2800
QC12K-30X2500
30
2500
3°30′
20-1000
≥4
45
23500
3550X2900X3000
QC12K-30X3200
32
3200
3°30′
20-1000
≥4
45
26000
4335X3300X3280
