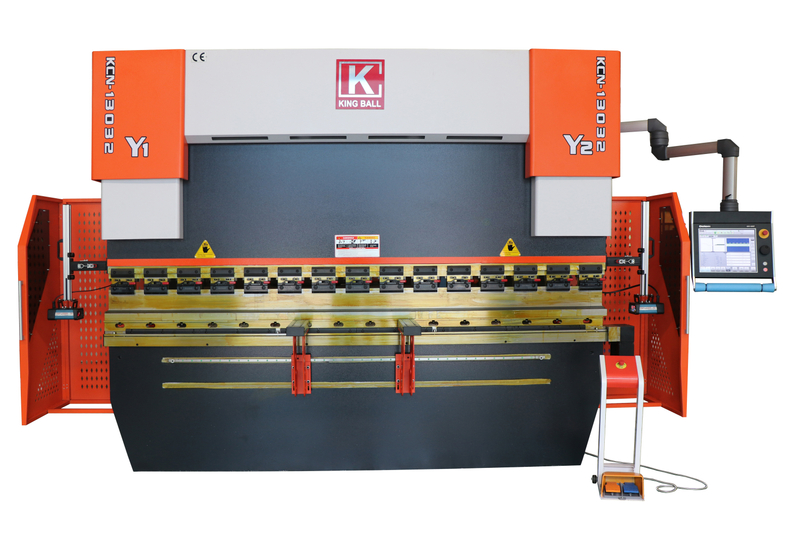

Electrohydraulic Synchronous CNC Press Brake

FEATURES

Overall welded and processed structure.,The frame is analyzed using ANSYS finite element analysis software to ensure the reliability of the machine and the precision of the machine. Electric hydraulic proportional servo synchronization, ensuring repeated accuracy
The standard 4+1 axes, imported ball screw and linear guide rail ensure the speed and accuracy of the backgauge, and more multi-axes backgauge mechanism can be used according to customer requirements.
The hydraulic system adopts the integrated control system imported from Germany, which reduces the installation of pipelines, ensures the stability of the machine , and the appearance is simple and beautiful.
C-type plates are installed on both sides of the machine frame, and the high-precision grating ruler is mounted on the C-type plate so as to avoid the influence of deformation of the fuselage on the bending accuracy during bending.
Automatic mechanical crowing mechanism Eliminate the influence of slider deformation on workpiece quality. CNC controller automatically adjusts the compensation amount, and the operation is convenient and accurate.
SpeciaL CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC

数控器和后挡料

Electro-hydraulic CNC Press Brake			KCN-6325	KCN-10032	KCN-10040	KCN-12532	KCN-12540	KCN-16032	KCN-16040	KCN-20032	KCN-20040
Capacity		kN	630	1000	1000	1250	1250	1600	1600	2000	2000
Max. Bending Length		mm	2500	3200	4000	3200	4000	3200	4000	3200	4000
Between Columns		mm	2100	2700	3200	2700	3200	2700	3200	2700	3200
Max. Shut Height		mm	420	460	460	460	460	460	460	460	460
Slide Stroke		mm	165	200	200	200	200	200	200	220	220
Throat Depth		mm	350	400	400	400	400	400	400	400	400
Down Speed		mm/min	180	180	180	180	180	180	180	180	180
Pressing Speed		mm/min	12	12	12	12	12	12	12	12	12
Return Speed		mm/min	160	160	160	160	160	160	160	160	160
Main Motor Power		kW	5.5	7.5	7.5	7.5	7.5	11	11	15	15
X axis stroke		mm	500	500	500	500	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300	300	300	300	300
R axis stroke		mm	150	150	150	150	150	150	150	150	150
R axis speed		mm/s	50	50	50	50	50	50	50	50	50
Outline Size	L	mm	3000	3700	4500	3700	4500	3700	4500	3700	4500
	W	mm	1650	1750	1750	1800	1800	1870	1920	1920	1950
	H	mm	2350	2630	2630	2630	2630	2700	2700	2700	2700
Weight		kg	5600	7500	8000	8500	9800	10000	12000	12500	13800
