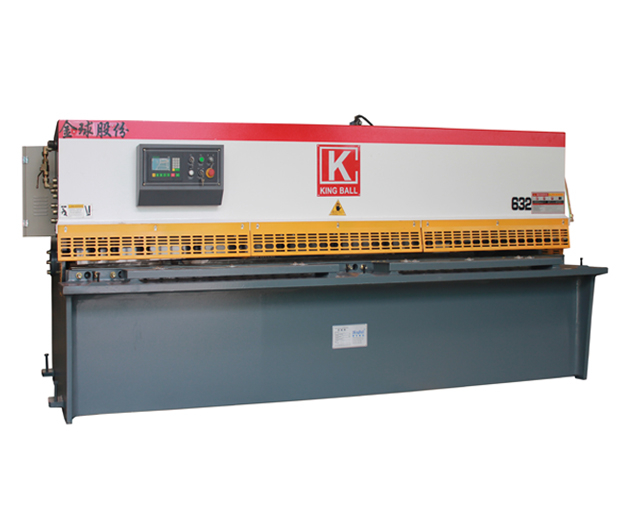

Model:QC11K-6X3200

●The second generation of shear.

● Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity.

●Advanced integrated hydraulic system with and excellent reliability quality.

●Rapidly,accurately and conveniently adjusting the blade clearance by motor

●The adjustable rake angle can minimize plate deformation.

●As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.

●Shearing in sections, shadow-line cutting.

●Counter for the motorized back gauge.

●Back support device (optional).

库存: 0
Inquire
Add to Basket

Performance Parameters

NO. Item Parameter Unit
1 Cutting thickness 6 mm
2 Cutting length 3200 mm
3 Cutting plate tensile strength 450 N/mm²
4 Back gauge 20-600 mm
5 Throat depth 100 mm
6 Shear angle 0.5-1°30′ °
7 Stroke number ≥12 times/min
8 X-axis positioning accuracy ±0.1 /
9 Main motor 7.5 kw
Return Speed 160 mm/s
10 Control axes Y1+Y2+X+R +W /
L 3935 mm
11 Overall dimension W 1840 mm
H 1995 mm
18 Weight 6800 kg

Detail Pictures

CNC
CNC-

Backgauge with ball screw linear guide.

France Schneider components, anti-interference, stable and durable.

Front safety fence.

Automatic blade clearance adjustment.

CNC1

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

DAC360T CNC controller

CNC-1

The DAC-360T control provides a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length and gap can be controlled, based on state of the art electronics.


Next to back gauge control, the DAC-360T automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is optimized based on the required cutting length, thus increasing productivity.


The back gauge control supports servo control, 2-speed AC control as well as inverter control. Depending on the application you can select either two-side positioning or single side positioning, using optional spindle correction functionality. The DAC-362T supports dual and triple gauge axes control, offering control for extra gauges and related functionality.


Full force control for clamping and cutting is available in the DAC-360T.

With its easy to use touch screen navigation on the bright LCD screen, operation is most user-friendly. The numerical programming with clear icons guides the operator through all programming functionalities.

Name Producer
CNC controller DAC360T Delem   Holland   brand
Main   motor Siemens           Germany  brand
Electrical components Schneider         France  brand
Gear  pump Boschrexroth      Germany  brand
Seal  ring NOK              Japan  brand
Hydraulic system Boschrexroth      Germany  brand
Ball screw, Linear guide    Hawk King        Taiwan  brand
Tubing connector EMB              Germany  Brand
Servo motor Delta             Taiwan  brand
Cutting Blades KingBall           China brand

DAC360T features:

Panel based housing

Bright LCD screen

Back / front gauge control

Retract function

Cutting angle and gap control

Stroke length limitation

Manual movement of all axes

Force control

Sheet thickness measurement

Return to Sender function

Second and third servo axis (DAC-362T)

Sheet support


The standard accessories

are in the below:

Anchor bolt

Hex nut

Seal ring

Washer

Grease gun

Allen wrench

Feeler gauge

Foot switch

Front support arms

Electrical box key, control panel key

Operation manuals

package
PACKAG

Package and Shipment

Shearing machine is usually packaged in plastic film, if you need other packaging, we can also meet you.
