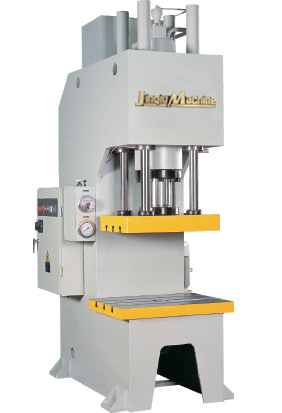

The machine is C-shaped of single column hydraulic press The machine is characterized by long working table 、deep throat ,wide feeding mouth ,rapid speed ,convenient feeding and discharging ,precise and reliable processing ,various functions and easy operation .It is widely used in press mounting ,straightening ,drawing and bending processes of mechanical manufacture filed ,which is the indispensable equipment to the area of auto , engineering machinery ,railway locomotive , metallurgy ,electricity ,petroleum machinery and aero plane industry
The machine is C-shaped of single column hydraulic press The machine is characterized by long working table 、deep throat ,wide feeding mouth ,rapid speed ,convenient feeding and discharging ,precise and reliable processing ,various functions and easy operation .It is widely used in press mounting ,straightening ,drawing and bending processes of mechanical manufacture filed ,which is the indispensable equipment to the area of auto , engineering machinery ,railway locomotive , metallurgy ,electricity ,petroleum machinery and aero plane industry
Model Name
Y41-200/ 1400×4000
Y41-300/ 1400×4000
Y41-315/ 1800×1800
Y41-400/ 1800×1800
Y41-630/ 1500×1800
Y41-630/ 800×2000
Y41-800/ 2000×2500
Y41-1000/ 2000×2500
Nominal pressure （KN）
2000
3000
3150
4000
6300
6300
8000
10000
Length of working table （㎜）
4000
4000
1800
1800
1800
2000
2500
2500
Width of working table （㎜）
1400
1400
1500
1500
1500
800
2000
2000
Max. opening height （㎜）
1500
1800
1500
1500
1500
1500
1500
1500
Throat deep（㎜）
750
750
1000
1300
1000
600
1500
1500
Pressing-head stroke （㎜）
500
600
800
800
800
500
1300
1300
Unloading down speed of pressing-head（㎜/sec）
80
80
80
60
60
60
120
120
Working speed of pressing-head（㎜/sec）
10
3.7
8
7.5
3
3
6～12
6～12
Returning speed of pressing-head（㎜/sec）
80
80
100
70
70
70
74
74
Motor power（KW）
22
22
37
37
37
37
55
55
Overall dimensions(L×W×H)(㎜)
4400×3117 ×5207
4394×4080 ×5900
2840×5000 ×5320
2840×5310 ×5320
2840×4500 ×5800
2840×4010 ×4900
2500×5000 ×7000
2500×5000 ×7500
Weight（㎏）
21500
26500
40000
47500
60000
50000
85000
100000
Model Name
Y41-200/ 1400×4000
Y41-300/ 1400×4000
Y41-315/ 1800×1800
Y41-400/ 1800×1800
Y41-630/ 1500×1800
Y41-630/ 800×2000
Y41-800/ 2000×2500
Y41-1000/ 2000×2500
Nominal pressure （KN）
2000
3000
3150
4000
6300
6300
8000
10000
Length of working table （㎜）
4000
4000
1800
1800
1800
2000
2500
2500
Width of working table （㎜）
1400
1400
1500
1500
1500
800
2000
2000
Max. opening height （㎜）
1500
1800
1500
1500
1500
1500
1500
1500
Throat deep（㎜）
750
750
1000
1300
1000
600
1500
1500
Pressing-head stroke （㎜）
500
600
800
800
800
500
1300
1300
Unloading down speed of pressing-head（㎜/sec）
80
80
80
60
60
60
120
120
Working speed of pressing-head（㎜/sec）
10
3.7
8
7.5
3
3
6～12
6～12
Returning speed of pressing-head（㎜/sec）
80
80
100
70
70
70
74
74
Motor power（KW）
22
22
37
37
37
37
55
55
Overall dimensions(L×W×H)(㎜)
4400×3117 ×5207
4394×4080 ×5900
2840×5000 ×5320
2840×5310 ×5320
2840×4500 ×5800
2840×4010 ×4900
2500×5000 ×7000
2500×5000 ×7500
Weight（㎏）
21500
26500
40000
47500
60000
50000
85000
100000
