Model:KCN-3012
Bending Force:30 ton /300 KN
Max.Bending Length:1250mm
Controller: Inovance EP700B CNC Controller
Control axes: 4 axes(Y1,Y2,X,R)
Back guage: 2 axes CNC Control(X,R )
Performance Parameters
| NO. | Item | Parameter | Unit | ||
| 1 | Bending Force | 300 | KN | ||
| 2 | Bending Length | 1250 | mm | ||
| 3 | Max.Slider Stroke | 200 | Mm | ||
| 4 | Daylight Opening | 480 | mm | ||
| 5 | Between Columns | 800 | mm | ||
| 6 | Throat depth | 250 | mm | ||
| 7 | Main motor power | 18×1 | KW | ||
| 8 | Down Speed | 200 | mm/s | ||
| 9 | Pressing Speed | 0-30 | mm/s | ||
| 10 | Return Speed | 200 | mm/s | ||
| 11 | Control axes | Y1+Y2+X+R | / | ||
| 12 | X axes Stroke | 500 | mm | ||
| 13 | X axes Speed | 300 | mm/s | ||
| 14 | R axes Stroke | 200 | mm | ||
| 15 | R axes Speed | 60 | mm/s | ||
| 16 | Backgauge Stoppers | 2 | pcs | ||
| 2 | 1700 | mm | |||
| 17 | Overall dimension | W | 1450 | mm | |
| H | 2400 | mm | |||
| 18 | Machine weight | 3000 | kg | ||
Configuration List
| Name | Producer |
| CNC controller | Inovance---China brandDelem---Netherlands brand |
| Main Ball screw | Laien---Japan brand |
| Electrical components | Schneider--- France brand |
| Main Servo motor | Inovance--- China brand |
| Servo motor(Backgauge) | Inovance--- China brand(Inovance EP700B CNC Controller)Fuji---Japan brand(DelemCNC Controller) |
| Ball screw &Linear guide (Backgauge) | Hawk King---Taiwan brand |
| Grating ruler | GIVI ---Italy brand |
| Optional-Laser Protection | DSP---Nuova---Italy brandBLPS---Keli---China brand |
| Optional-Light curtain for rear | Keli---China brand |
Configuration List
| Delem CNC Controller Model | DA53T | DA58T | DA66T | DA69T |
| Appearance |  |  |  |  |
| Screen | 10.1" TFT Colour LCD display | 15" TFT Colour LCD display | 17" TFT Colour LCD display | 17" TFT Colour LCD display |
| Resoluntion | 1024 x 600 pixels, 32 bit colour | 1024 x 768 pixels, 32 bit colour | 1280 x 1024 pixels, 16 bit colour | 1280 x 1024 pixels, 32 bit colour |
| Maximum axes | Up to 4 +1 axes () | Up to 4 +1 axes | Up to 8 +1 axes | Up to 8 +1 axes |
| Program method | numerical + 2D graphical(optional) | numerical + 2D graphical | numerical + 2D modular | numerical + 3D modular |
| Touch sensor | Full touch screen control (PCT-touch) | Full touch screen control (PCT-touch) | Full touch screen control (IR-touch) | Full touch screen control (IR-touch) |
| Storage capacity | 1 GB | 1 GB | 1 GB | 2 GB |
| Product and tools memory | 256MB | 256MB | 256MB | 256MB |
| Networking | / | Optional | Standard Windows® networking | Standard Windows® networking |
| Bend sequence calculation | / | Standrad | Standrad | Standrad |
| Offline software | Profile-53TL | Profile-58TL | Profile-TL | Profile-T3D |
| Tandem capability | Optional | Optional | Optional | Optional |
| Language | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR |
| Control Axes | ||
| Ram stroke | ||
| Y1 | Left sychronous thoothed belt control , ball screw transmission control axes | |
| Y2 | Right sychronous thoothed belt control , ball screw transmission control axes | |
| Back Guage | ||
| X | Back gauge moving axes (front and back)Standrad:X axes---one servo motor | |
| R | Back gauge moving axes (up and down)Standrad:R axes---one servo motor | |
| Z | Back gauge stopper fingers moving axes (left and right)Standrad:Z axes---ManuallyUpgraded:Z1,Z2 axes---two servo motors | |
| Worktable Crowning | ||
| W | CNC Worktable Crowning Standrad:W axes---Motorized mechanical crowning | |
Back Guage Display (X,R,Z axes)
1 AXES BACK GAUGE(X)
1 axes back gauge, actually we mean 3+1 axes.1 axes back gauge is X axes. Z axes with manual linear guide. Fingers up and down, left and right can be moved manually.
2 AXES BACK GAUGE(X,R)
2 axes back gauge, actually we mean 4+1 axes. 2 axes back gauge are X axes and R axes Z axes with manual linear guide. Fingers left and right can be moved manually.
4 AXES BACK GAUGE(X,R,Z1,Z2)
4 axes back gauge, actually we mean 6+1 axes.4axes back gauge are X axes, R axes, Z1 axes and Z2 axes.
CNC Worktable Crowning(W axes)-----standrad above 1600mm
The CNC crowning system calculates the compensation value according to theoverall deformation of the slider and the table surface.This allows the deformationcurve of the bed to be seamlessly aligned with the compensation curve, ensuringthe best straightness and angular consistency of our products.
Exaggerated to Demonstrate
Standrad:W axes---Motorized crowning
Detail Pictures

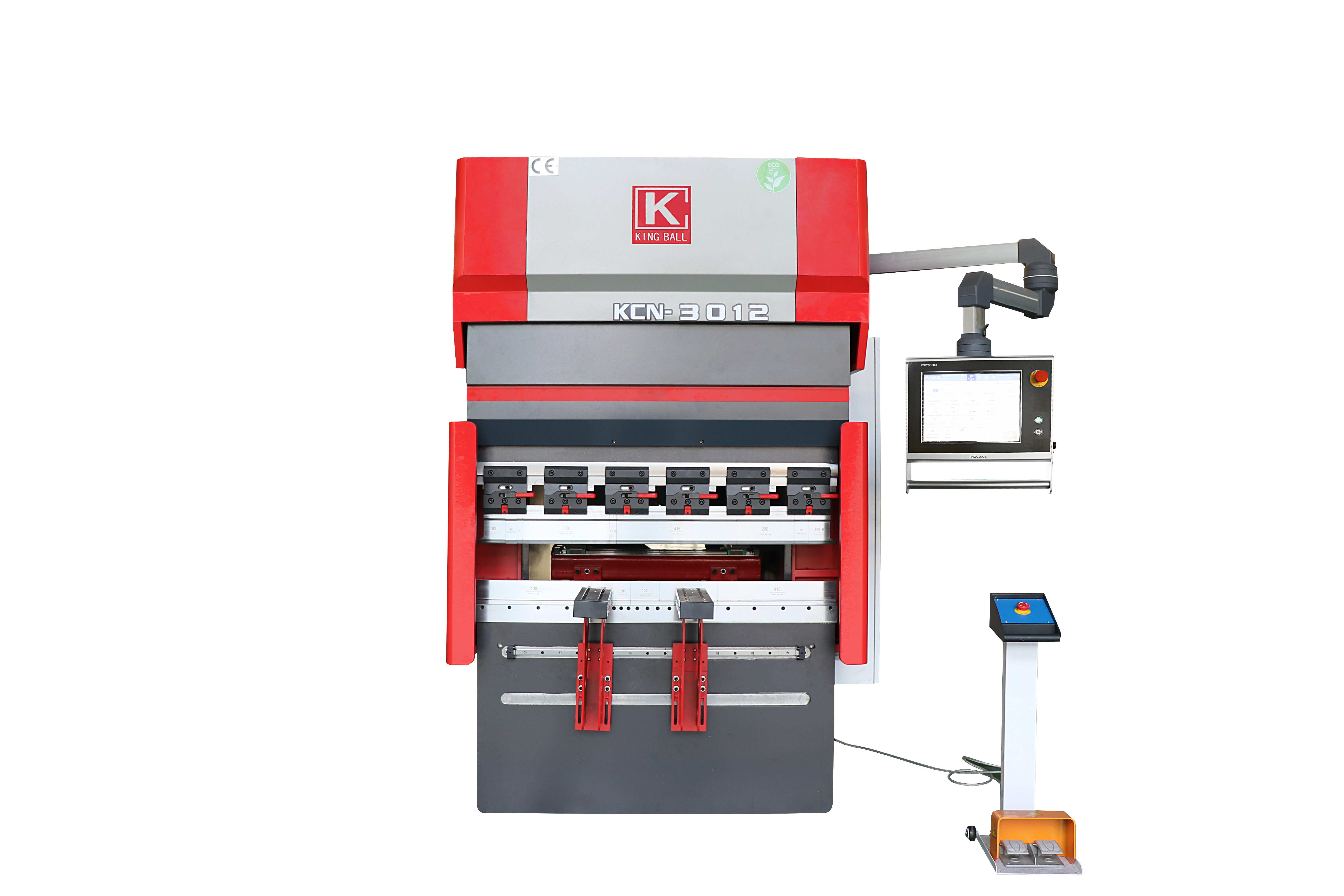

Front

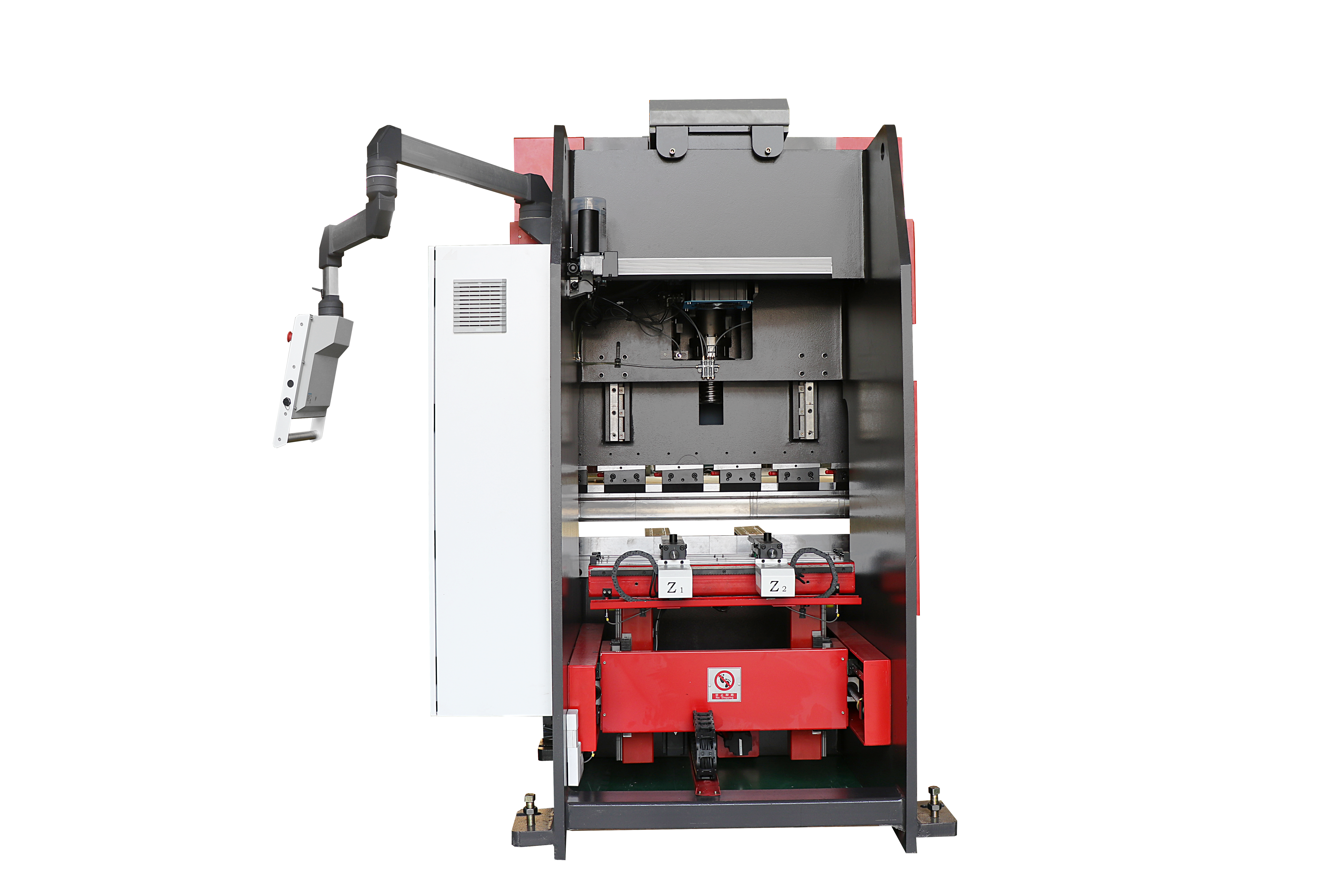

Back
Inovance---China brand
EP700B CNC controller
"Hot-key” touch navigation
10.1" high resolution colour TFT
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Crowning control
Tool / material / product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
TandemLink (option)
USB memory stick interfacing
Profile-T offline software
Technical Data
DA-53T
| Standard | ||
| Display | Colour LCD display | |
| Type | 10.1"TFT, high brightness | |
| Resolution | 1024 x 600 pixels, 32 bit colour | |
| Backlight | LED | |
| Storage capacity | 1 GB | |
| Product and tools memory | 256MB | |
| Exchangeable memory | USB flash memory drive | |
| Offline software | Profile-53TL | |
| Options | ||
| Tandem capability | TandemLink | |
The Z axes stoppers move left and right on two linear guides manually.
The Z1,Z2 stoppers move left and right on two linear guides automatically by CNC controller.
Z axes
2 axes back guage(4+1 axes)
Z1,Z2 axes
4 axes back guage(6+1 axes
Z1,Z2 axes
6 axes back guage(8+1 axes)
Main Ball screw ---Laien---Japan brand
-Heavy duty ball screw from Japan,high precision, high strength, long life.
Electrical components---Schneider--- France brand
-All electrical components imported from France
-Neat wiring,Stable and durable performance,ensuring
long service life
Servo Motor and drive---Inovance---China famous brand
-satisfy high precision positioning requirements.
Servo Motor and drive(Backgauge)---Fuji---Japan brand
Servo Motor and drive(Backgauge)---Inovance---China brand
-satisfy high precision positioning requirements
Ball screw ,Linear guide---Hawk King---Taiwan brand
-Backgauge with ball screw and linear guide, high precision, fast speed and low noise.
Grating ruler---GIVI---Italy brand
-High-precision grating scale mounted
on C-board.
Double sliding front support arm installed on the linear guide, movable easy.
One-key type quickly release clamping.
The guideway use the brass, wear-resisting,long service life.
Two sides door-type safety guard
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
Antomatic lubrication pump
Cabinet air conditioner
| Optional | Name | Description |
 | Laser safety protection | ●DSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the machine. |
 | Safety light curtain | China brand SDKELI safety light curtain, installed on the back of the machine, if someone enters the machine, the machine ispowered off. |
 | Tool cabinet | Total 6 layers 3 layers for punch 3 layers for die |
 | Double-sided quick release clamping | Both sides can be quickly clamped and released |
 | Automatic Laser bending angle measurement system---DATAM---German brand | ●Angle measurement ●Spring-back measurement ●Very high accuracy ●Works contactless |
 | Wila Hydraulic Clamping | ●Extremely fast press brake tooling changes ●Extremely accurate clamping, positioning and alignment ●Individual clamping pins for each tool segment for superior clamping force ●Vertical and horizontal tool loading and unloading for maximum speed and safety ●Professional finish, including a slide rule for ease of tool positioning |
 | Delem DA53T Controller | *"Hot-key” touch navigation *10.1" high resolution colour TFT *Up to 4 axes (Y1,Y2 + 2 aux. axes) *Crowning control *Tool / material / product library *Servo and frequency inverter control *Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. *TandemLink (option) *USB memory stick interfacing *Profile-T offline software |
 | Delem DA58T Controller | *2D graphical touch screen programming *15" high resolution colour TFT *Bend sequence calculation *Crowning control *Servo and frequency inverter control *Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. *USB, peripheral interfacing *Profile-T offline software |
 | Delem DA66T Controller | *2D graphical touch screen programming mode *3D isualization in simulation and production *17” high resolution colour TFT *Full Windows application suite *Delem Modusys compatibility (module scalability and adaptivity) *USB, peripheral interfacing *User specific application support within the controllers multitasking environment *Sensor bending & correction interface *Profile-TL offline software |
 | Delem DA69T Controller | *3D and 2D graphical touch screen programming mode *3D visualisation in simulation and production *17" high resolution colour TFT *Full Windows application suite *Delem Modusys compatibility (module scalability and adaptivity) *USB, peripheral interfacing *User specific application support within the control's multitasking environment *Sensor bending & correction interface *Profile-T3D offline software |

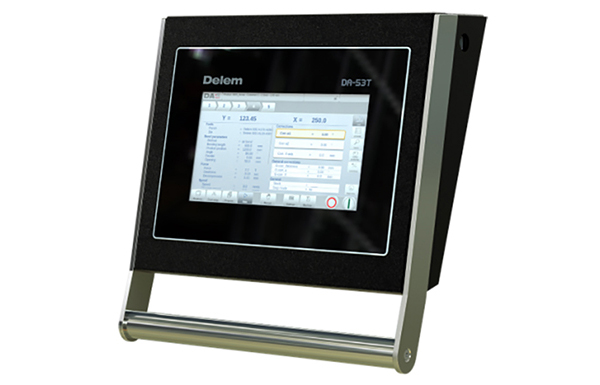

Delem DA53T CNC controller
DA-53T features
*"Hot-key” touch navigation
*10.1" high resolution colour TFT
*Up to 4 axes (Y1,Y2 + 2 aux. axes)
*Crowning control
*Tool / material / product library
*Servo and frequency inverter control
*Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
*TandemLink (option)
*USB memory stick interfacing
*Profile-T offline software
Technical Data
DA-53T
| Standard | ||
| Display | Colour LCD display | |
| Type | 10.1" TFT, high brightness | |
| Resolution | 1024x600 pixels, 32 bit colour | |
| Touch capacity | Full touch screen control (PCT-touch) | |
| Backlight | LED | |
| Storage capacity | 1 GB | |
| Product and tools memory | 256MB | |
| Exchangeable memory | USB flash memory drive | |
| Offline software | Profile-53TL | |
| Options | ||
| Tandem capability | TandemLink | |
Delem---Netherlands brand
DA58T CNC controller
DA-58T features
2D graphical touch screen programming
15" high resolution colour TFT
Bend sequence calculation
Crowning control
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
USB, peripheral interfacing
Profile-T offline software
Technical Data
DA-58T
| Standard | ||
| Display | Colour LCD display | |
| Type | 15"TFT, high brightness | |
| Resolution | 1024 x 768 pixels, 32 bit colour | |
| Touch capacity | Full touch screen control (PCT-touch) | |
| Backlight | LED | |
| Storage capacity | 1 GB | |
| Product and tools memory | 256MB | |
| Exchangeable memory | USB flash memory drive | |
| Offline software | Profile-58TL | |
| Options | ||
| Networking | Standard Windows® networking | |
| Tandem capability | TandemLink | |
| Correction aids | Protractor interfacing | |
Delem---Netherlands brand
DA66T CNC controller
DA-66T features
2D graphical touch screen programming mode
3D isualization in simulation and production
17” high resolution colour TFT
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface
Profile-TL offline software
Technical Data
DA-66T
| Standard | ||
| Display | Colour LCD display | |
| Type | 17"TFT, high brightness | |
| Resolution | 1280 x 1024 pixels, 16 bit colour | |
| Touch capacity | Full touch screen control (PCT-touch) | |
| Backlight | LED | |
| Storage capacity | 1 GB | |
| Product and tools memory | 256MB | |
| Characteristics | 3D graphics acceleration | |
| Networking | Standard Windows® networking | |
| Safety system | Emergency switch | |
| OEM machine functions | Integrated OEM-panel | |
| Exchangeable memory | USB flash memory drive | |
| Offline software | Profile-TL | |
| Options | ||
| Bending aids | Part support control | |
| Backgauge programming | X1-X2 angle programming | |
| Program selection | Barcode reader interfacing | |
| Correction aids | Protractor interfacing | |
| Advanced deflection systems | Frame deflection compensation | |
| Sensor bending | Sensor bending correction interfacing | |
| Thickness measurement | Sheet thickness measurement and compensation system | |
| Tandem capability | TandemLink | |
| Bus expansion | 2nd HSB Modusys bus | |
Delem---Netherlands brand
DA69T CNC controller
DA-69T features
3D and 2D graphical touch screen programming mode
3D visualisation in simulation and production
17" high resolution colour TFT
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control's multitasking environment
Sensor bending & correction interface
Profile-T3D offline software
Technical Data
DA-69T
| Standard | ||
| Display | Colour LCD display | |
| Type | 17"TFT, high brightness | |
| Resolution | 1280 x 1024 pixels, 32 bit colour | |
| Touch capacity | Full touch screen control (PCT-touch) | |
| Backlight | LED | |
| Storage capacity | 2GB | |
| Product and tools memory | 256MB | |
| Characteristics | 3D graphics acceleration | |
| Networking | Standard Windows® networking | |
| Safety system | Emergency switch | |
| OEM machine functions | Integrated OEM-panel | |
| Exchangeable memory | USB flash memory drive | |
| Offline software | Profile-T3D | |
| Options | ||
| Bending aids | Part support control | |
| Backgauge programming | X1-X2 angle programming | |
| Program selection | Barcode reader interfacing | |
| Correction aids | Protractor interfacing | |
| Advanced deflection systems | Frame deflection compensation | |
| Sensor bending | Sensor bending correction interfacing | |
| Thickness measurement | Sheet thickness measurement and compensation system | |
| Tandem capability | TandemLink | |
| Bus expansion | 2nd HSB Modusys bus | |
