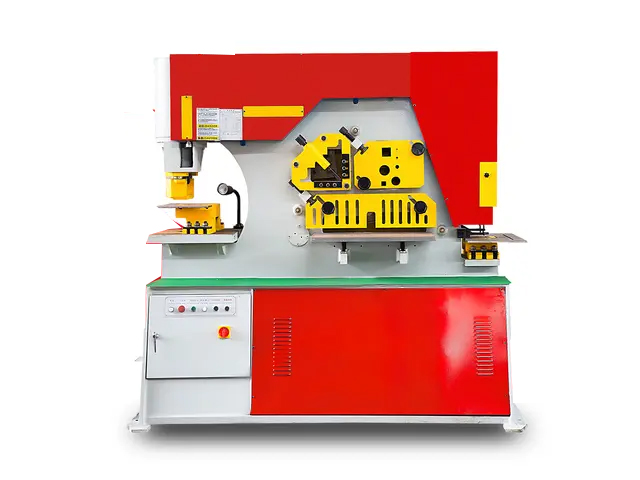

Q35Y Series Hydraulic Ironworker
Double cylinders hydraulic punch & shear machine
Five independent stations for punch, shear, notcher, section cut

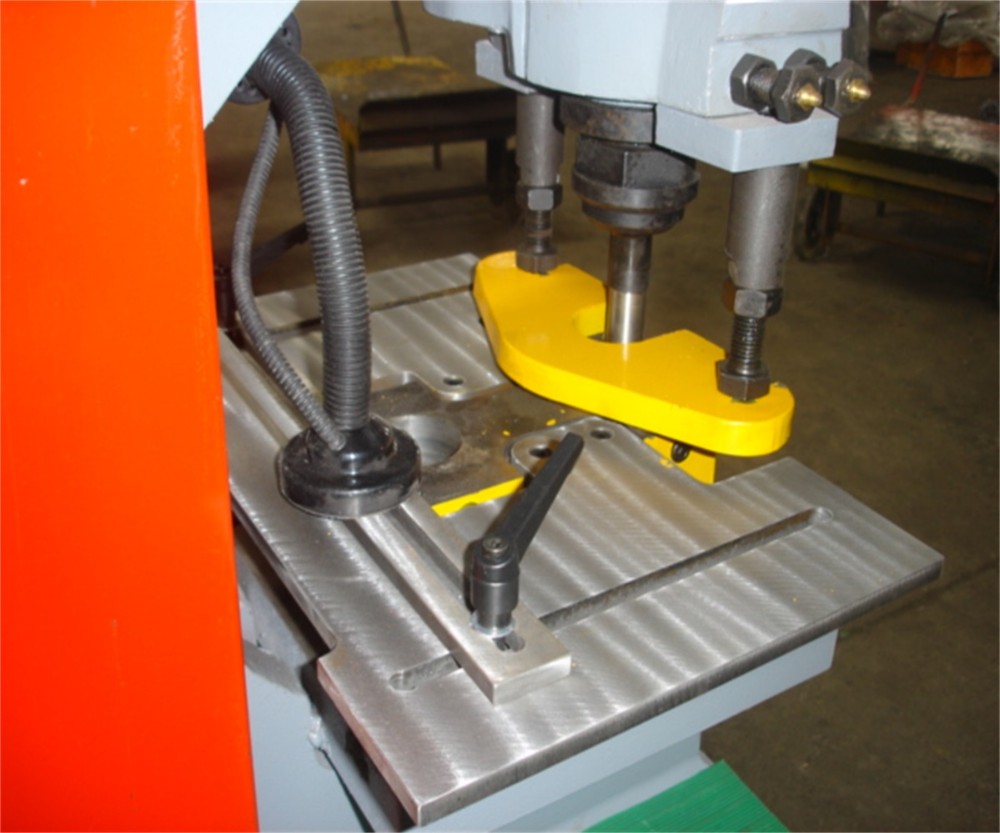

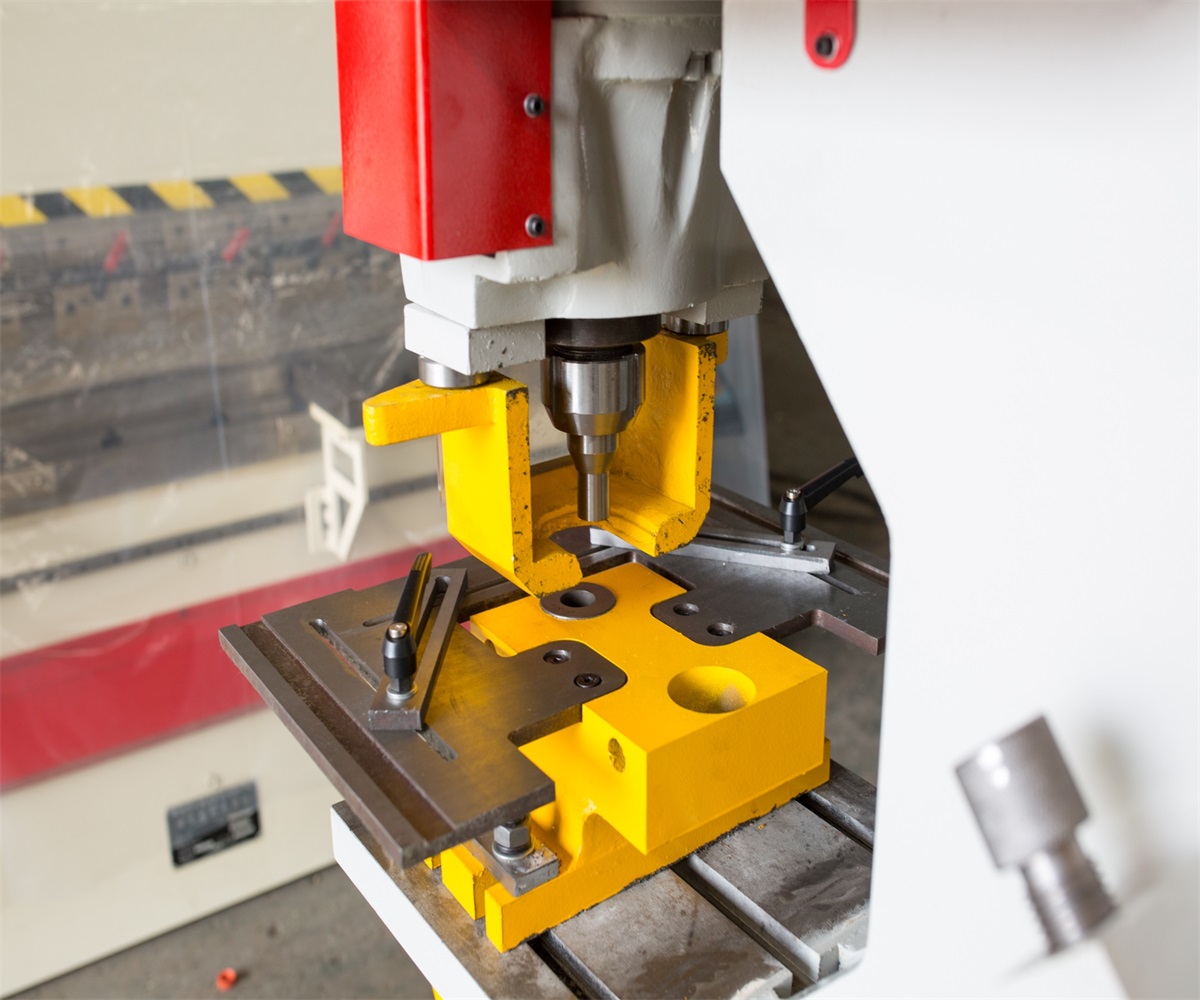

Large punch table with multi-purpose bolster
Removable table block for overhang channel / joist flange punching applications
Universal die bolster, easy change punch holder fitted, punch adapters supplied

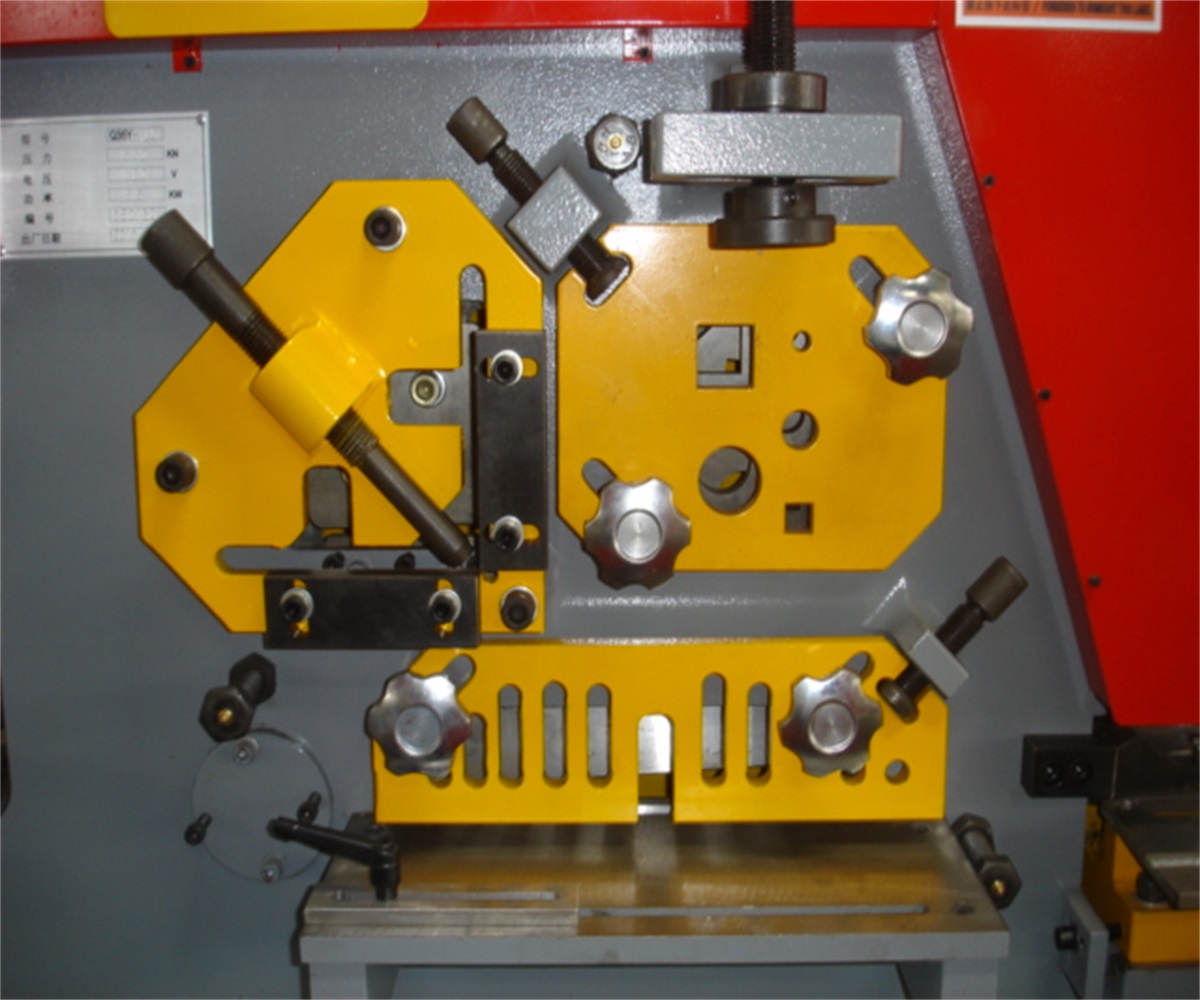

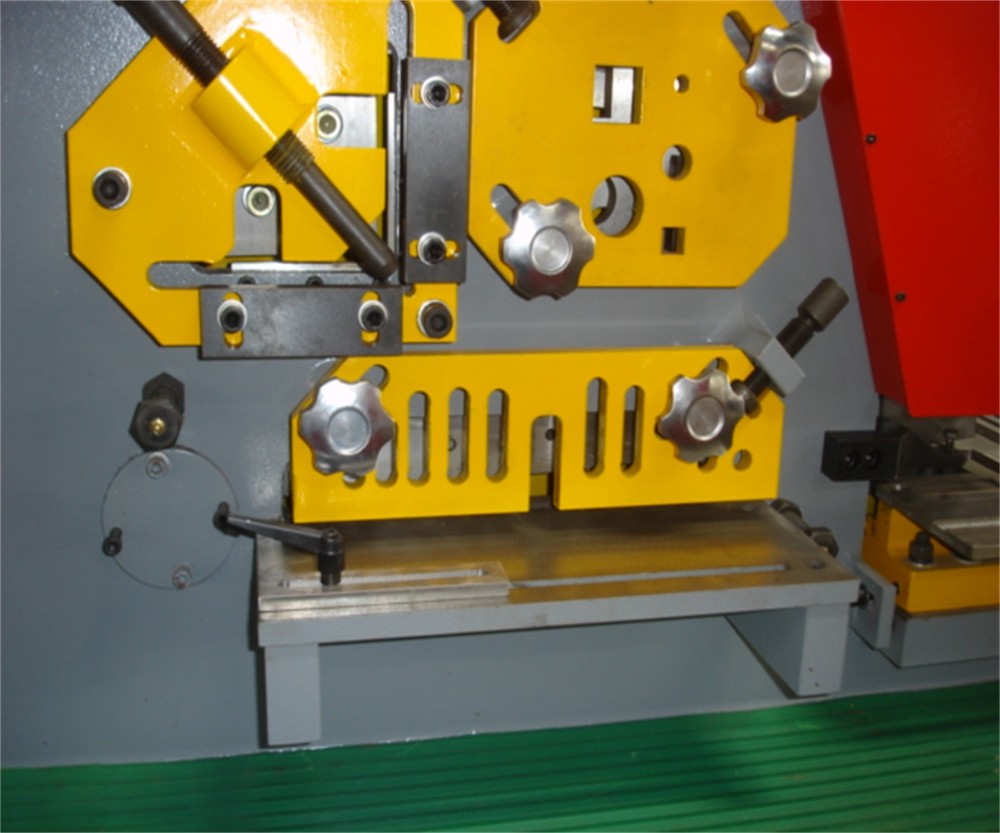

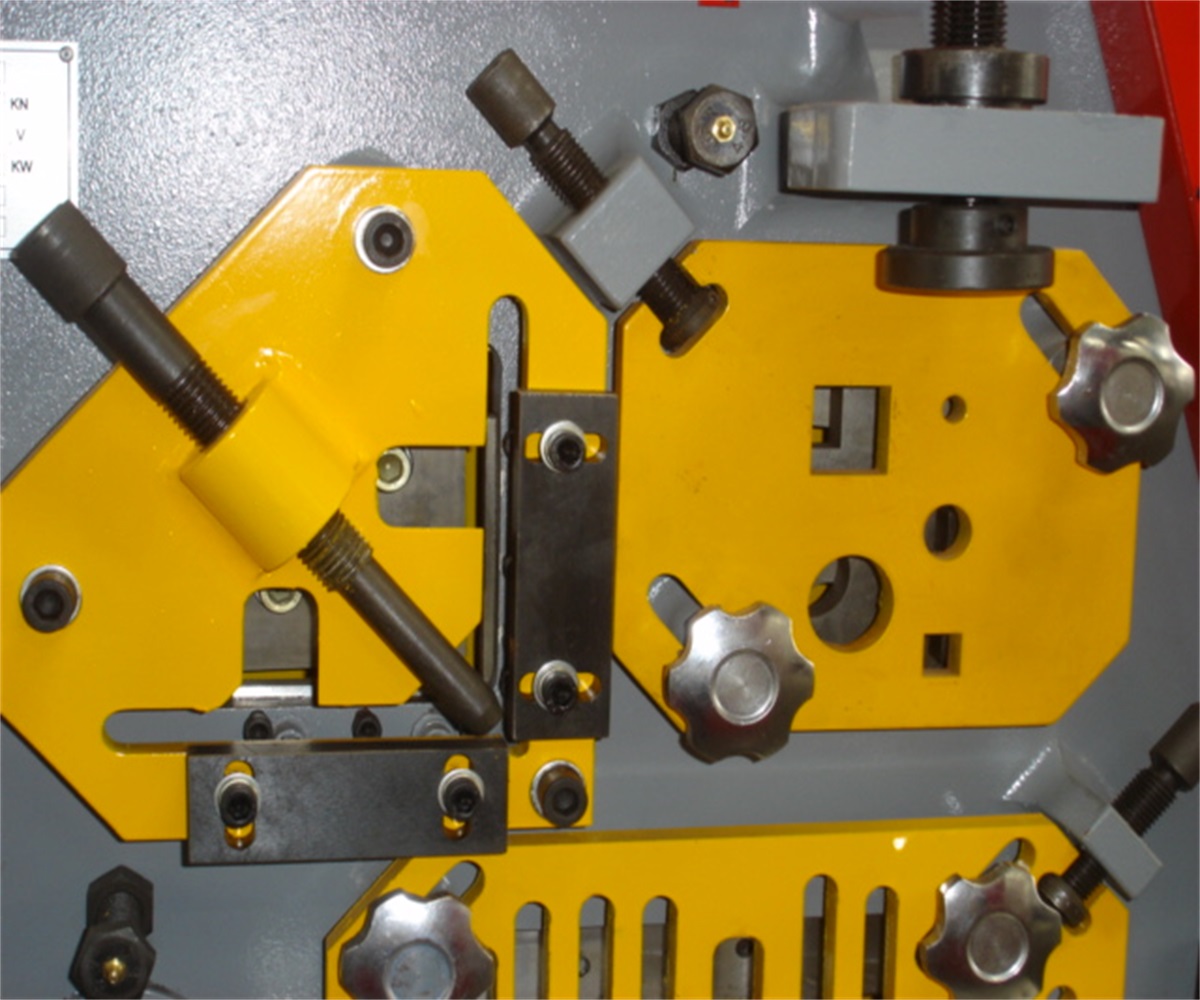

Angle, round & square solid monoblock crop station

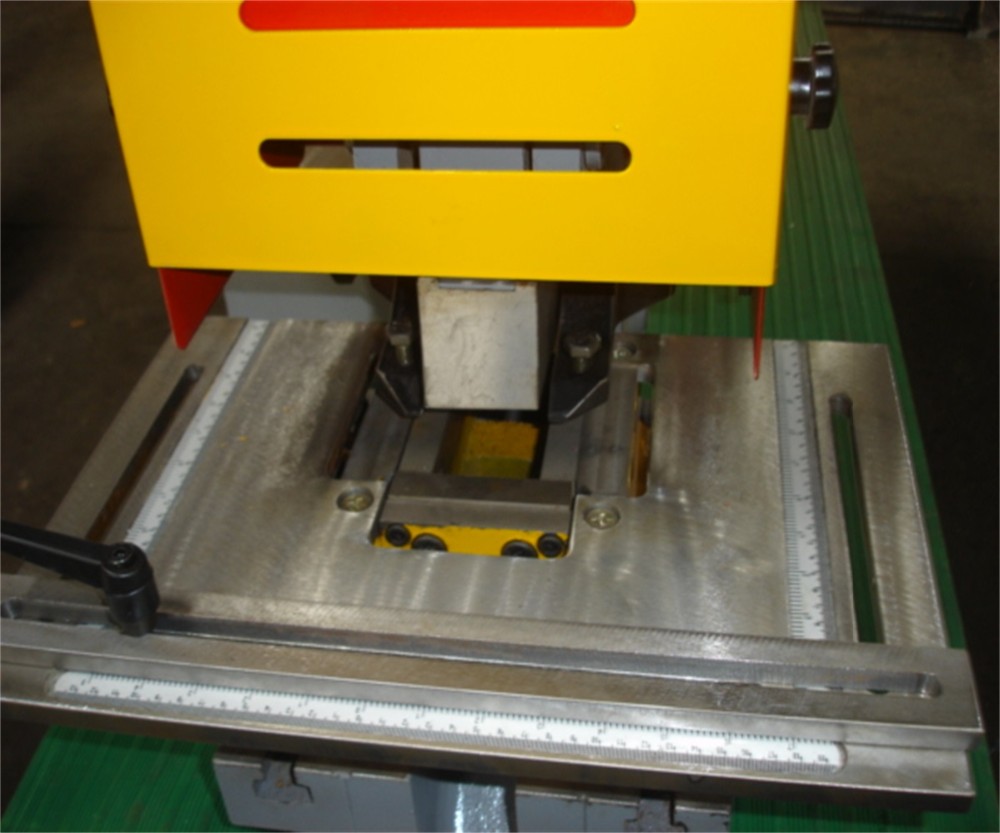

Rear notching station, Low power inching and adjustable stroke at punch station
Centralised pressure lubrication system

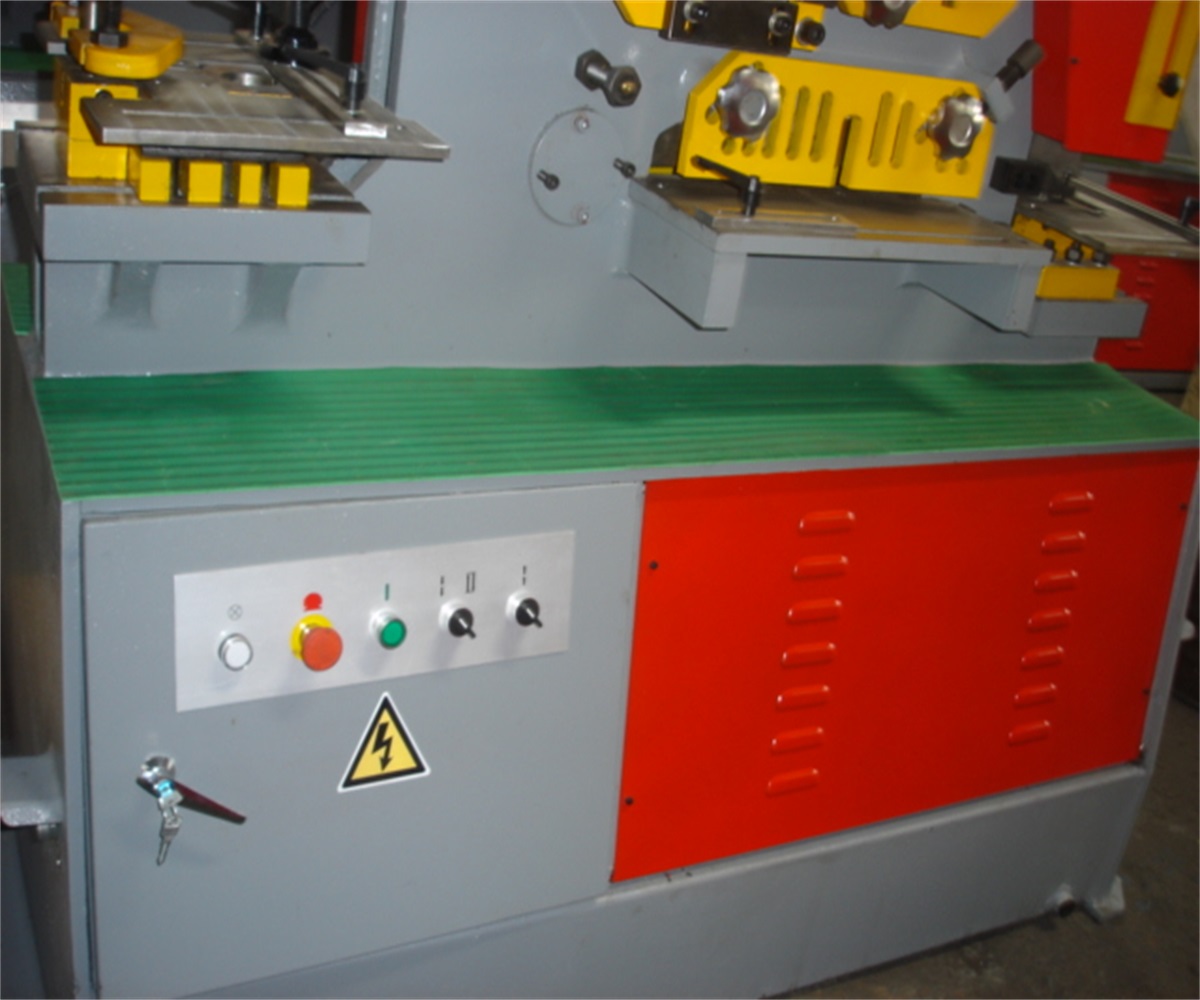

Electric panel with overload protaction elements and ingetrated controls
Safety movable foot pedal
Technical Parameters
Detail Pictures
| Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
| Punching Pressure (T) | 90 | 115 | 145 | 200 | 250 |
| Max. cutting thickness of sheet plates (mm) | 20 | 25 | 30 | 40 | 50 |
| Material strength (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angle of Shear (°) | 8° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T*W)(mm) | 20*330 10*480 | 25*330 16*600 | 30*335 20*600 | 40*335 30*600 | 50*300 30*750 |
| Max. length of cylinder stroke (mm) | 80 | 80 | 80 | 100 | 100 |
| Trips frequency (times/min) | 12-20 | 10-18 | 8-16 | 8-16 | 6-12 |
| Depth of throat (mm) | 355 | 400 | 600 | 600 | 600 |
| Max. punching diameter (mm) | 30 | 35 | 38 | 40 | 45 |
| Motor power (KW) | 7.5 | 7.5 | 11 | 18.5 | 18.5 |
| Overall dimensions (L*W*H)(mm) | 1950*900*1950 | 2355*960*2090 | 2800*1100*2500 | 2800*1100*2500 | 3200*1440*2500 |
| Weight(kg) | 2400 | 4000 | 6400 | 7500 | 12800 |
The Hydraulic Ironworker warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
Front

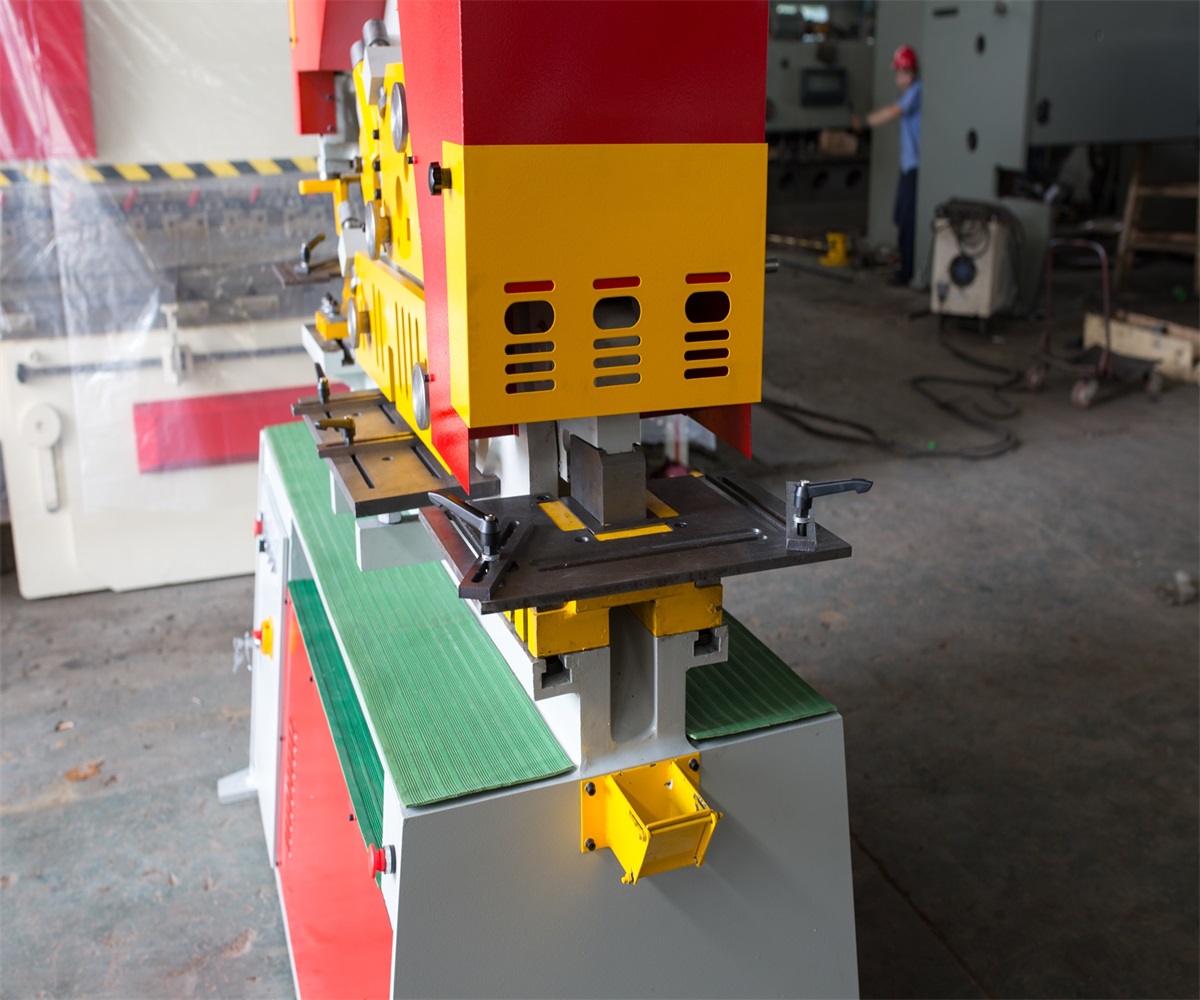

flank
