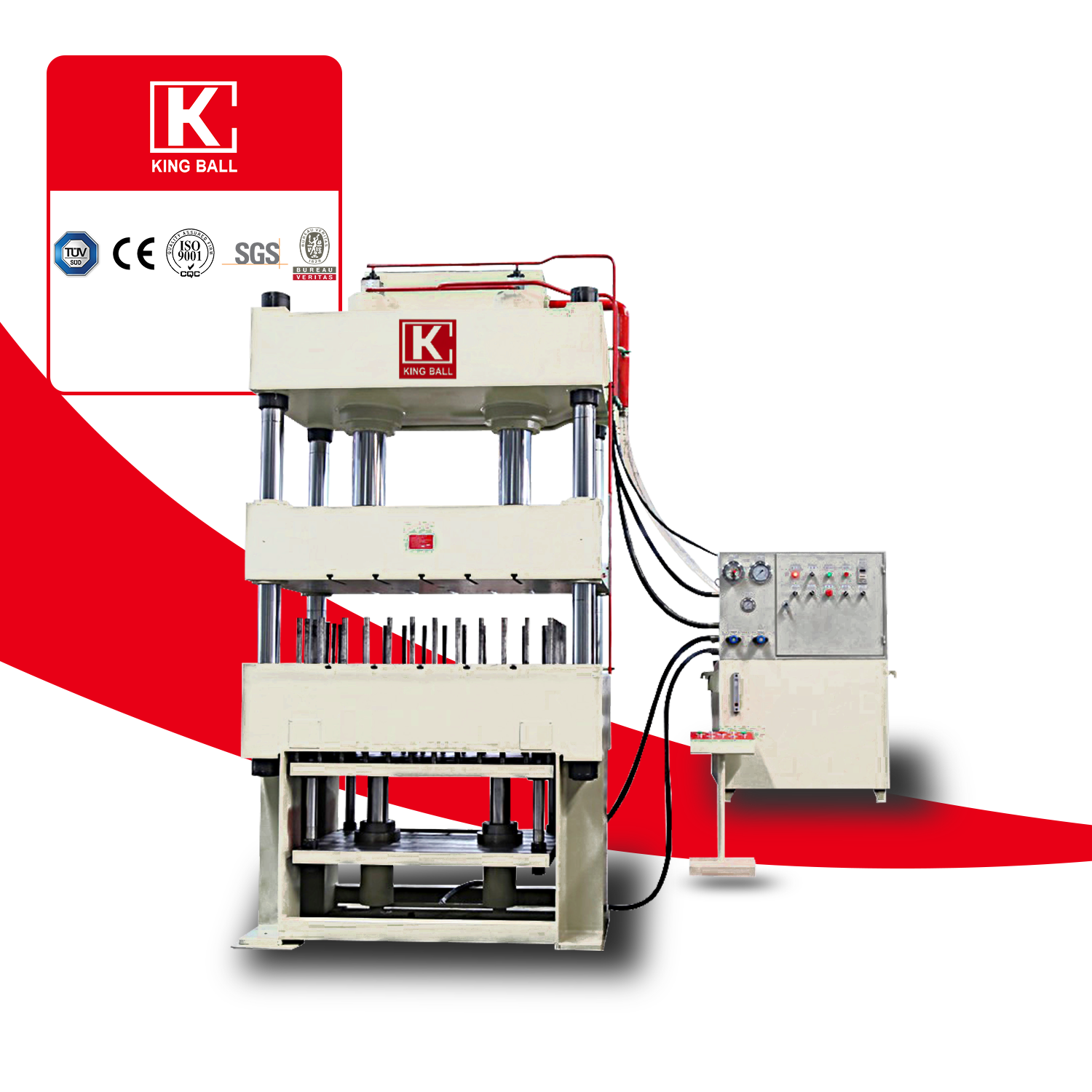

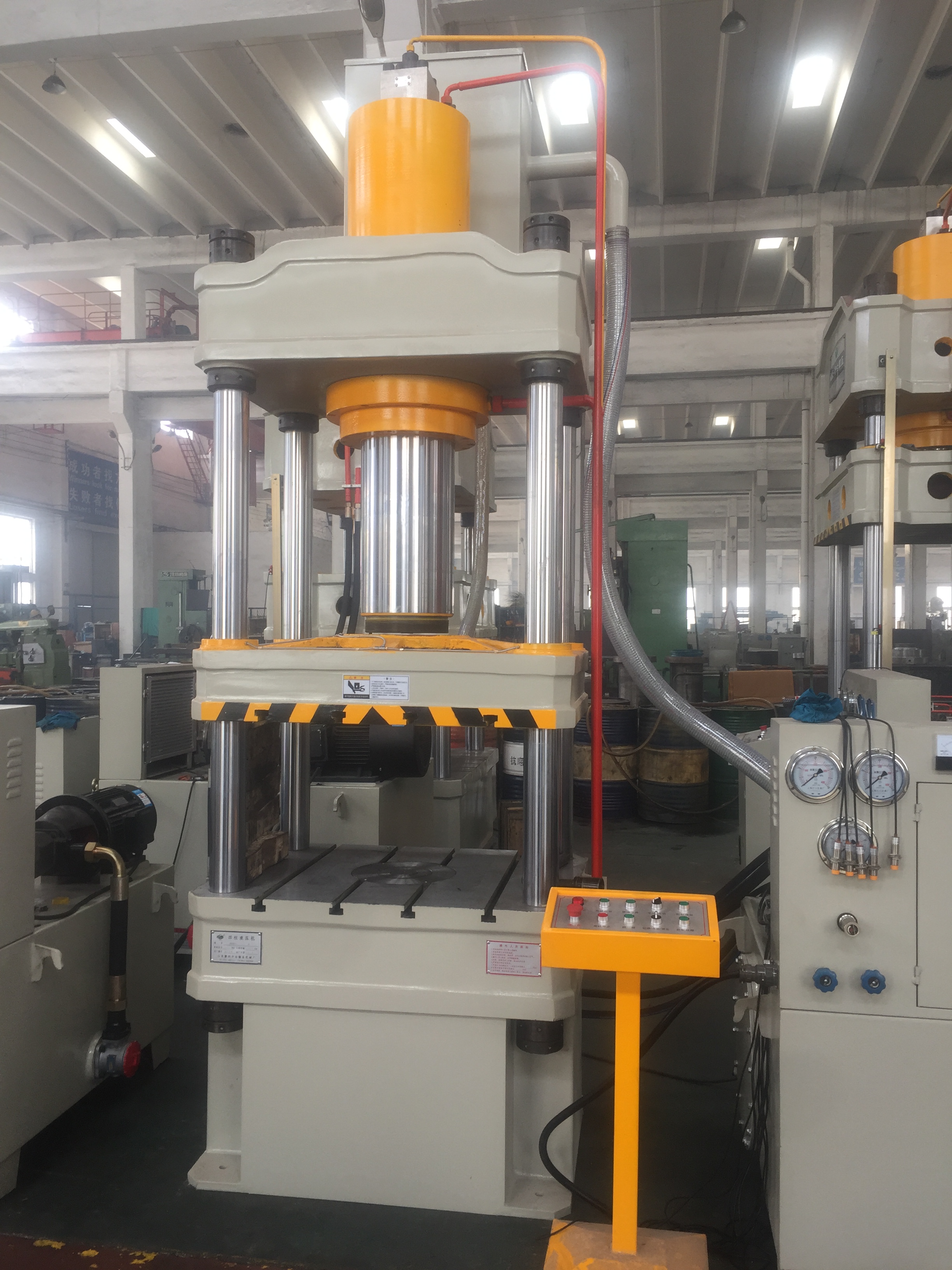

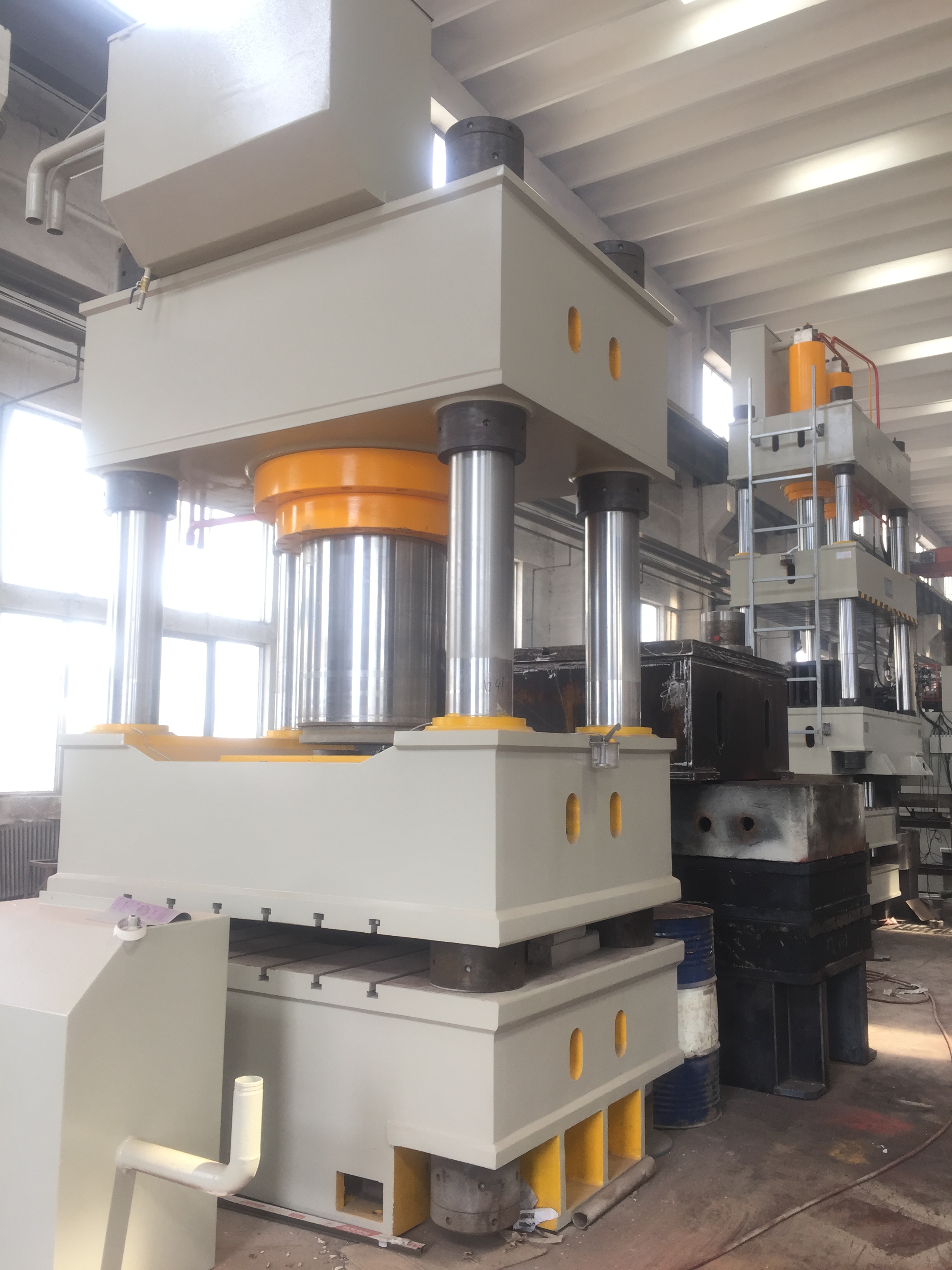

Deep Drawing Hydraulic Press-Y27

These series of hydraulic press used for metal drawing, bending and forming.

1.Car body parts, brake piece, oil tank, chassis, bridge shell, bumper, wheelbarrow tray

2.Household electric appliance: washing machine parts, electric rice cooker parts, refrigerator parts, etc.

3.Kitchen utensils: washing tank, pot of equipment, stainless steel utensils, various other containers.

Others: agricultural implement and machinery, monocycle, aerospace

库存： 0

Inquire

Add to Basket

Technical Parameters

Item			Unit	Y27-200	Y27-250	Y27-315	Y27-400	Y27-500	Y27-630	Y27-800	Y27-1000	Y27-1000A	Y27-1250	Y27-1600	Y27-2000	Y27-2500	Y27-3000
Nominal force			KN	2000	2500	3150	4000	5000	6300	8000	10000	10000	12500	16000	20000	25000	30000
Return force			Mpa	240	400	600	500	900	850	900	1250	1250	1250	2000	2000	2250	2250
Working pressure			KN	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Cushion pressure			Mm	400	400	630	630	1600	2000	2000	1600	1600	1600	2400	2400	3000	3000
Daylight of slide			Mm	1120	1120	1250	1250	1500	1500	1500	1800	2200	1800	2000	2100	2000	2500
stroke	Upper slide	Mm	710	710	800	800	900	900	900	1000	1500	1000	1200	1300	1100	1600
stroke		Cushion	Mm	250	250	300	300	300	350	300	365	500	400	400	350	400	400
Table size	L-R	Mm	900	1000	1200	1200	1400	1600	3200	3200	4000	4000	4000	4500	4500	4500
Table size		F-B	Mm	900	1000	1200	1200	1400	1600	2200	2300	2300	2500	2500	2500	2500	2500
Cushion size	L-R	Mm	660	700	800	800	900	1120	1550	2550	1500	3370	3820	3750	3820	3820
Cushion size		F-B	Mm	600	600	650	650	900	1120	1700	1800	1800	1870	1870	1800	1700	1600
Speed of slide	Descent	Mm/s	80	100	100	100	1400	100	300	300	300	350	350	350	350	350
		Pressing	Mm/s	5-12	4-10	5-12	4-10	4-10	5-12	8-22	12-30	12-30	12-30	12-30	12-30	12-30	12-30
		Return	Mm/s	70	60	60	60	50	60	200	250	250	300	300	300	300	300
Table hight above floor			Mm	700	700	750	750	700	500	500	900	400	400	400	350	350	350
Overall dimensions	L-R	Mm	2450	2600	2850	2850	5800	4150	5400	5400	6200	6200	6200	6700	6700	6700
Overall dimensions		F-B	Mm	1300	1300	1500	1500	2600	2600	2900	300	5200	3200	3200	3300	3300	3300
Motor power			KW	15	15	22	22	22	2x22	96	160	160	160	200	380	410	500

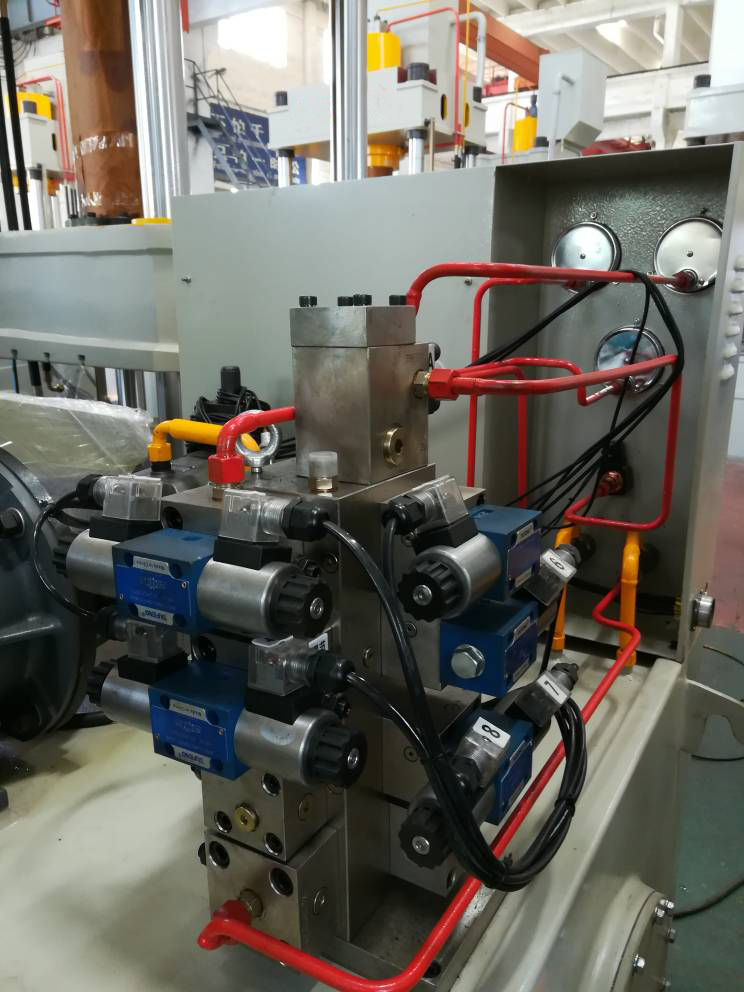

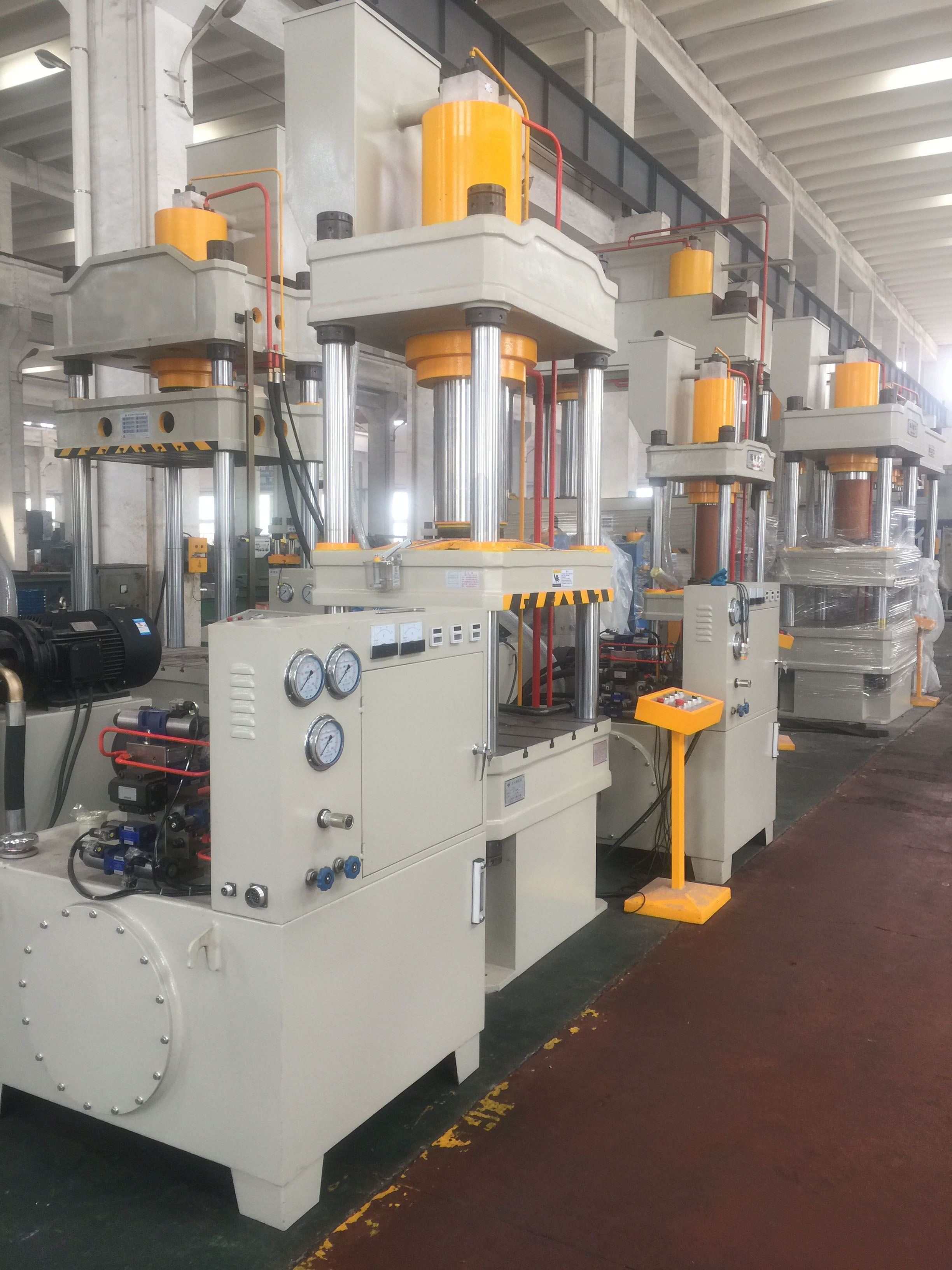

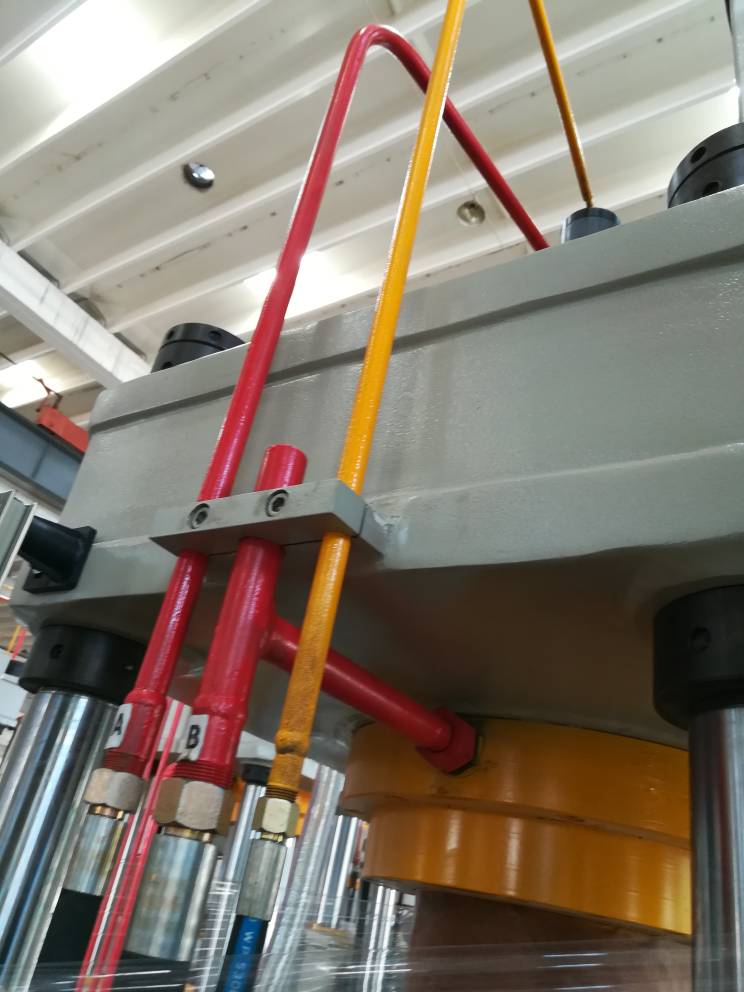

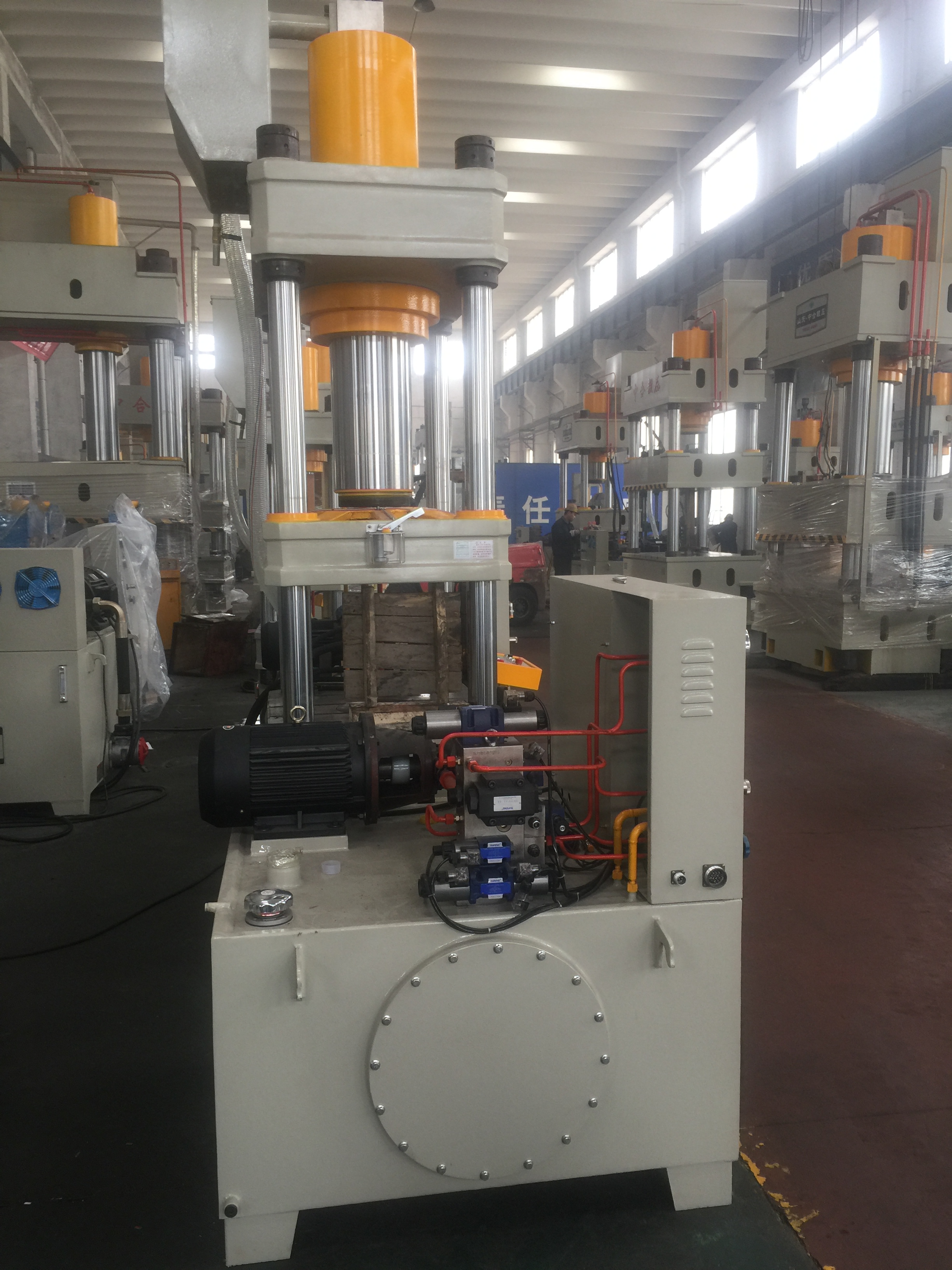

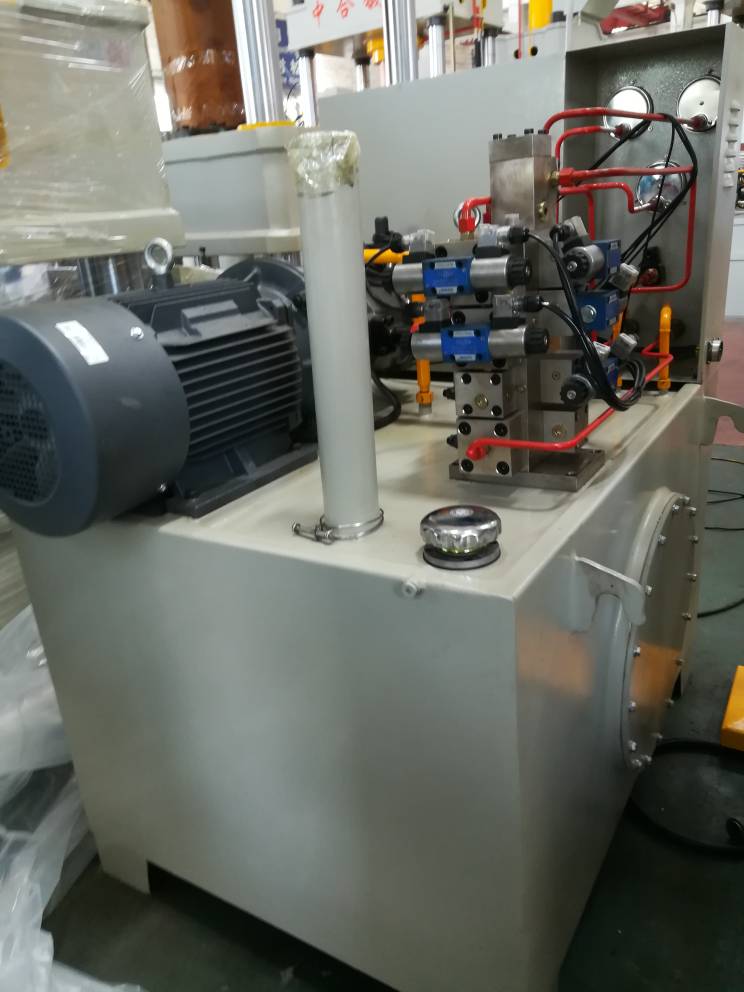

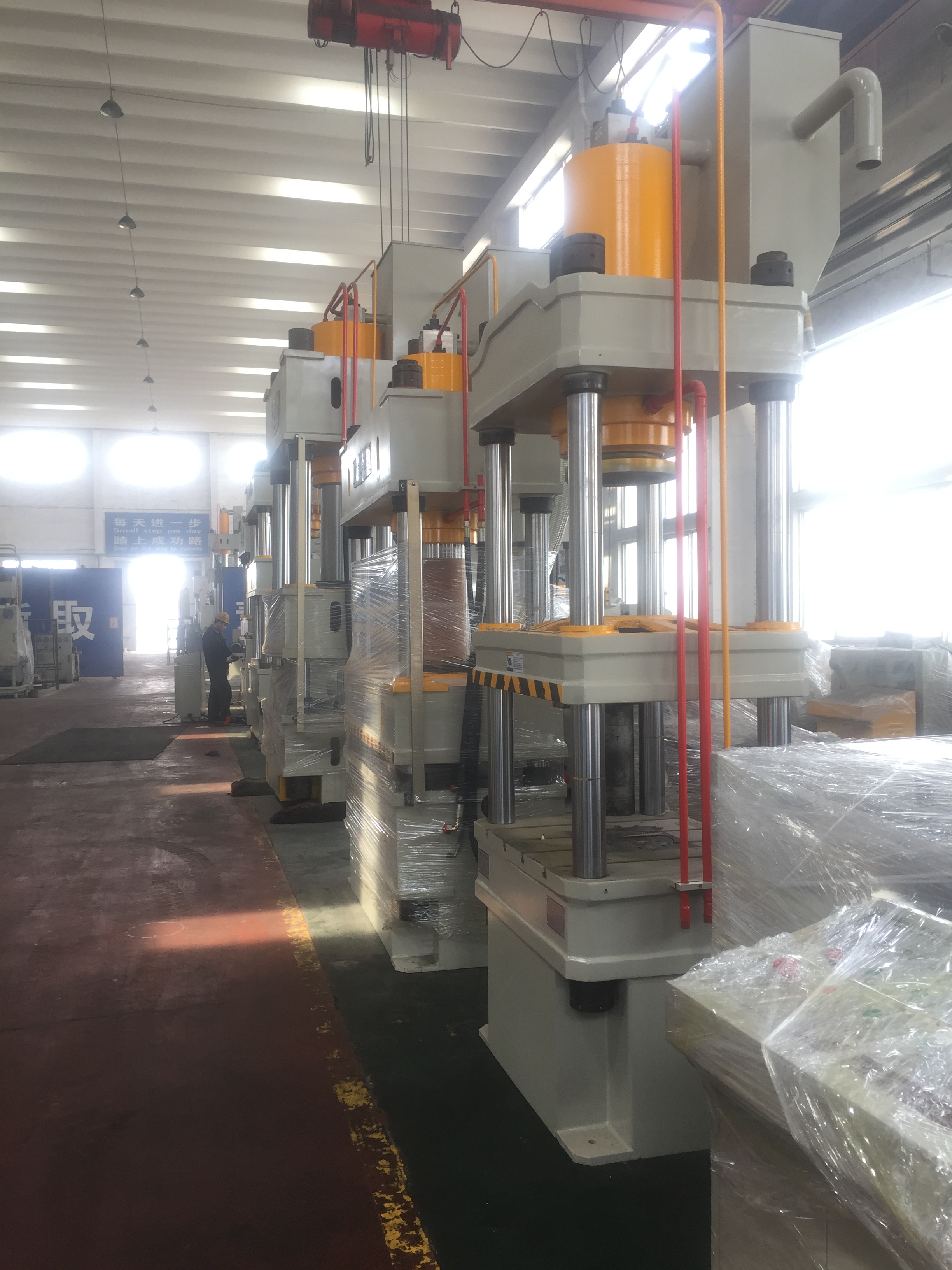

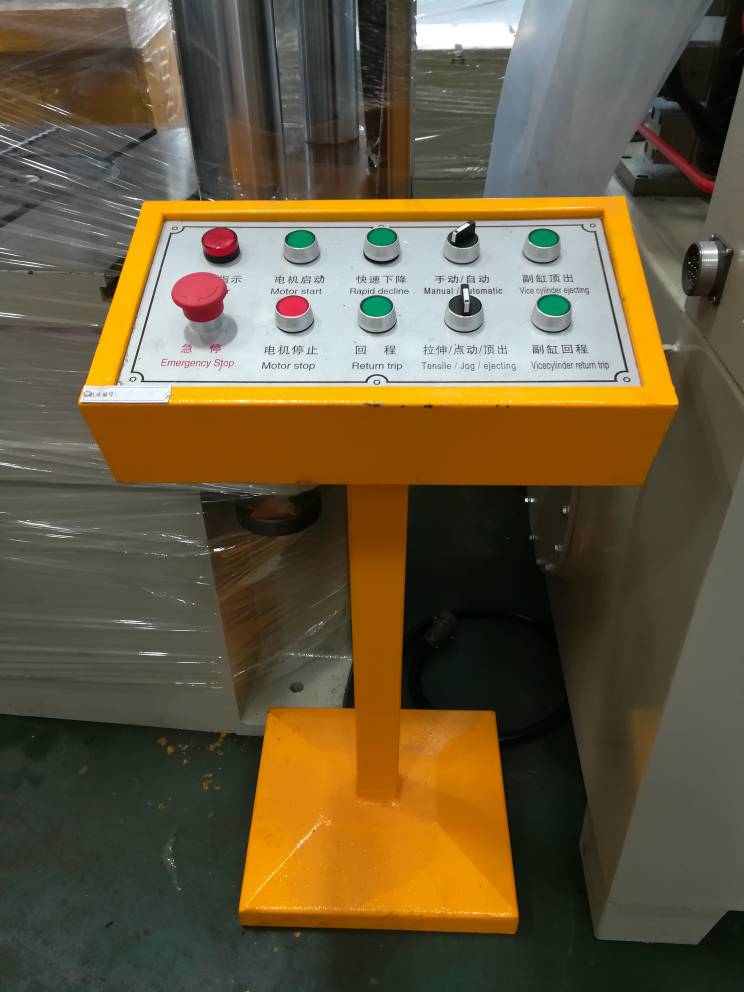

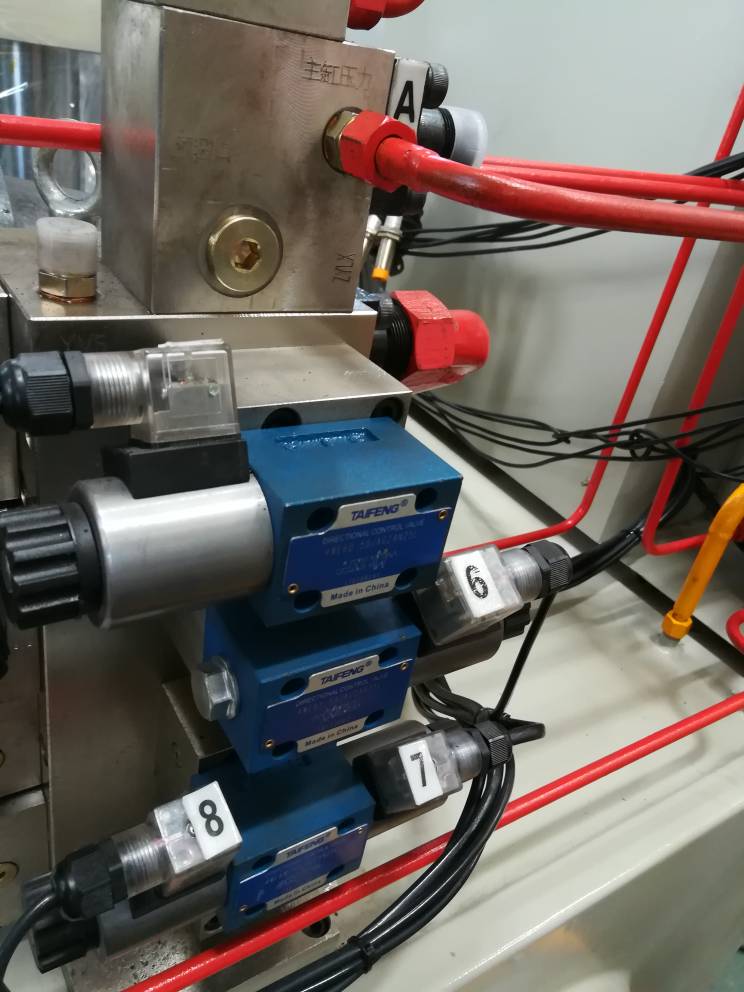

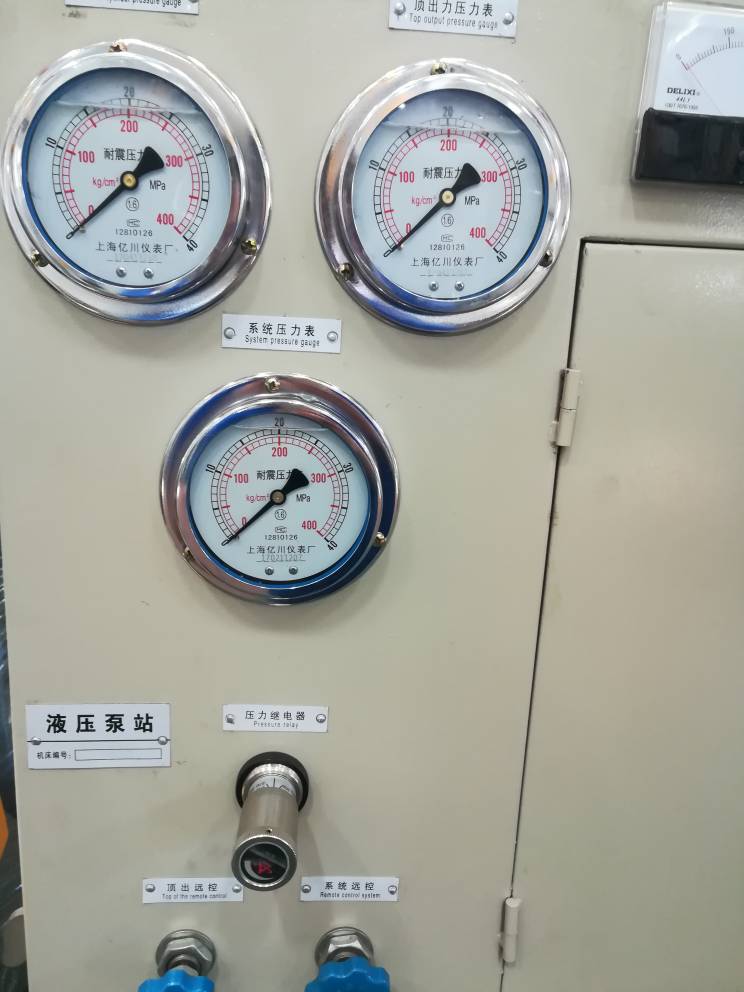

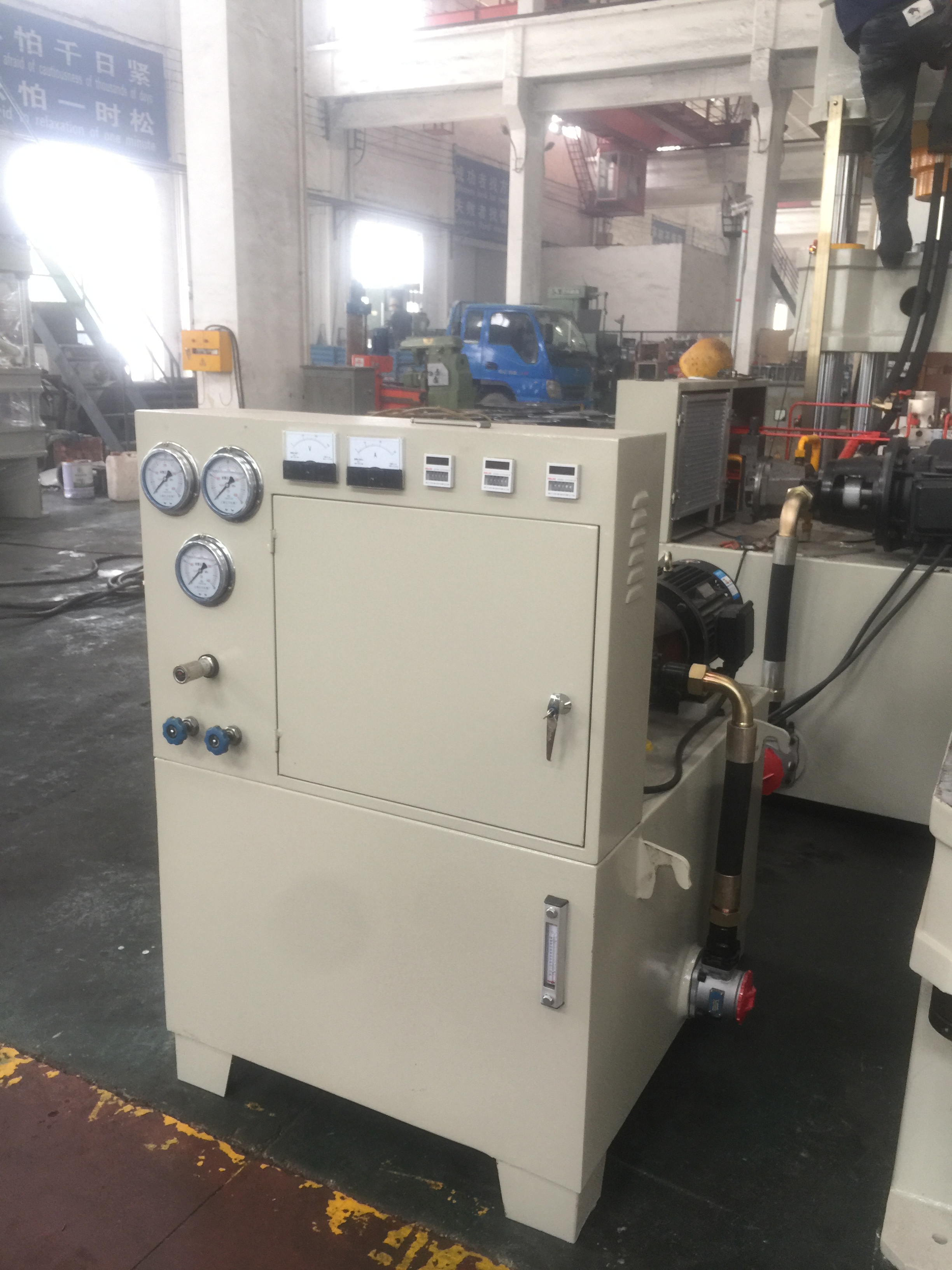

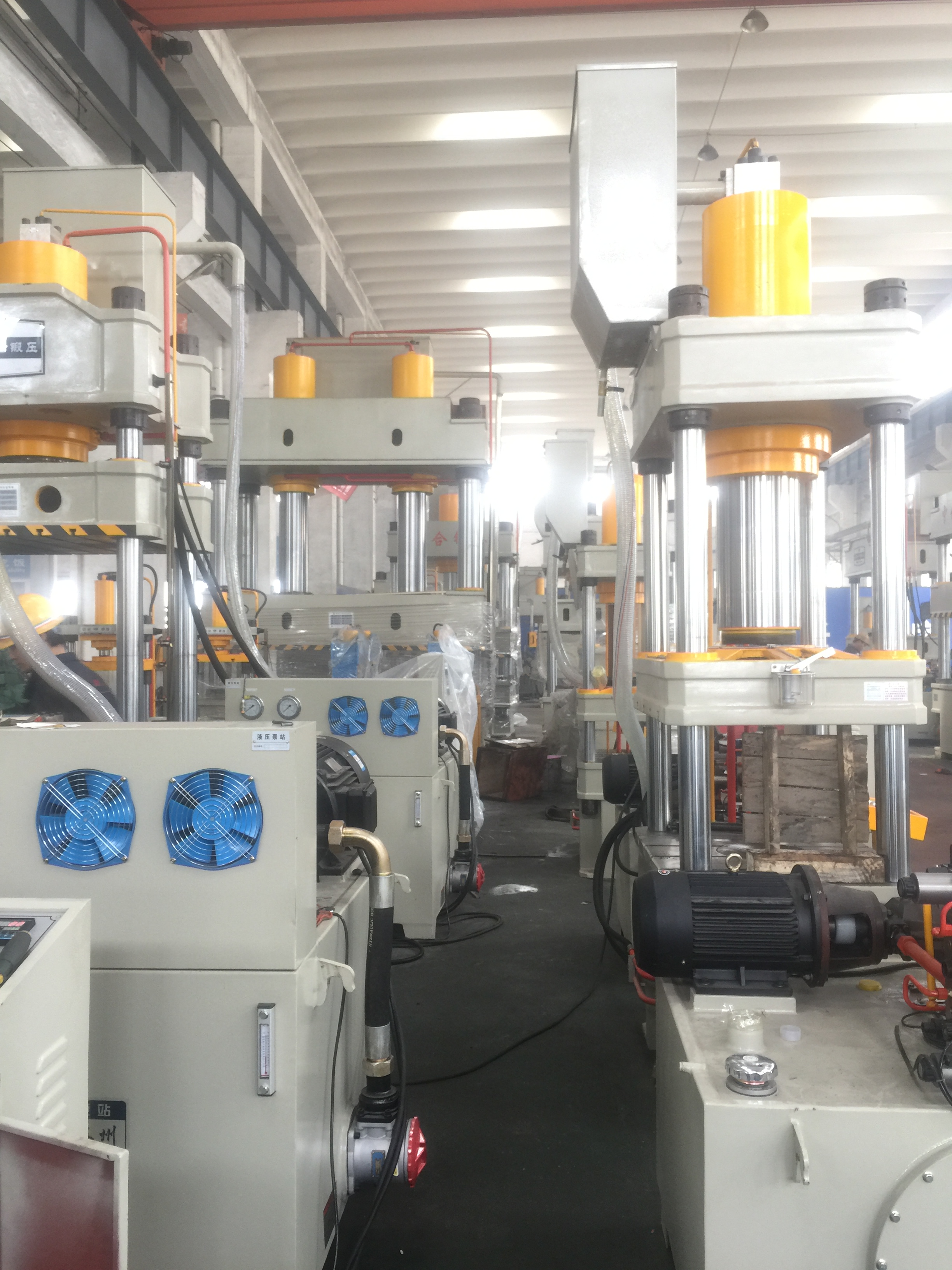

Detail Pictures

The Deep Drawing Hydraulic Press-Y27 warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
