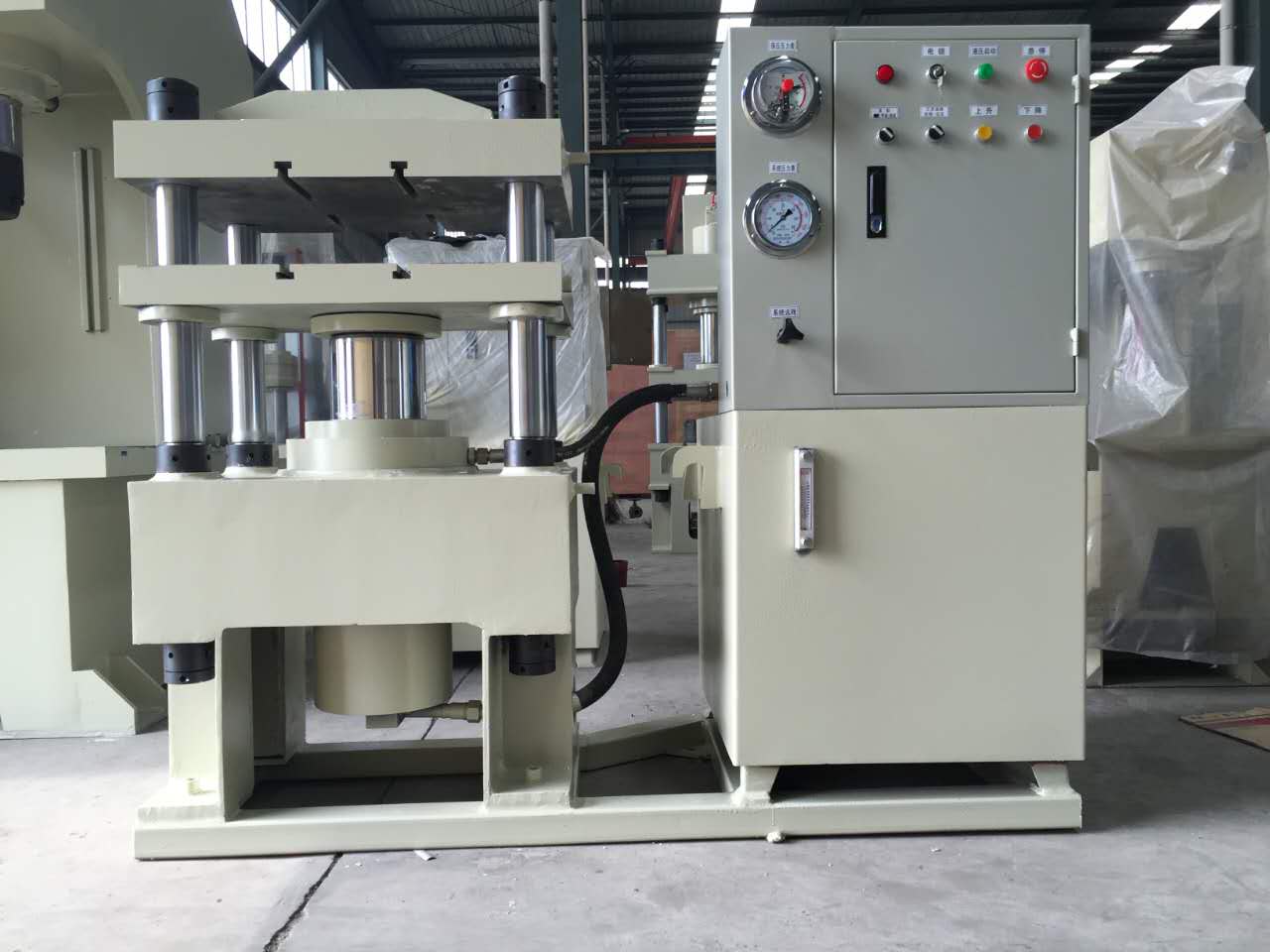

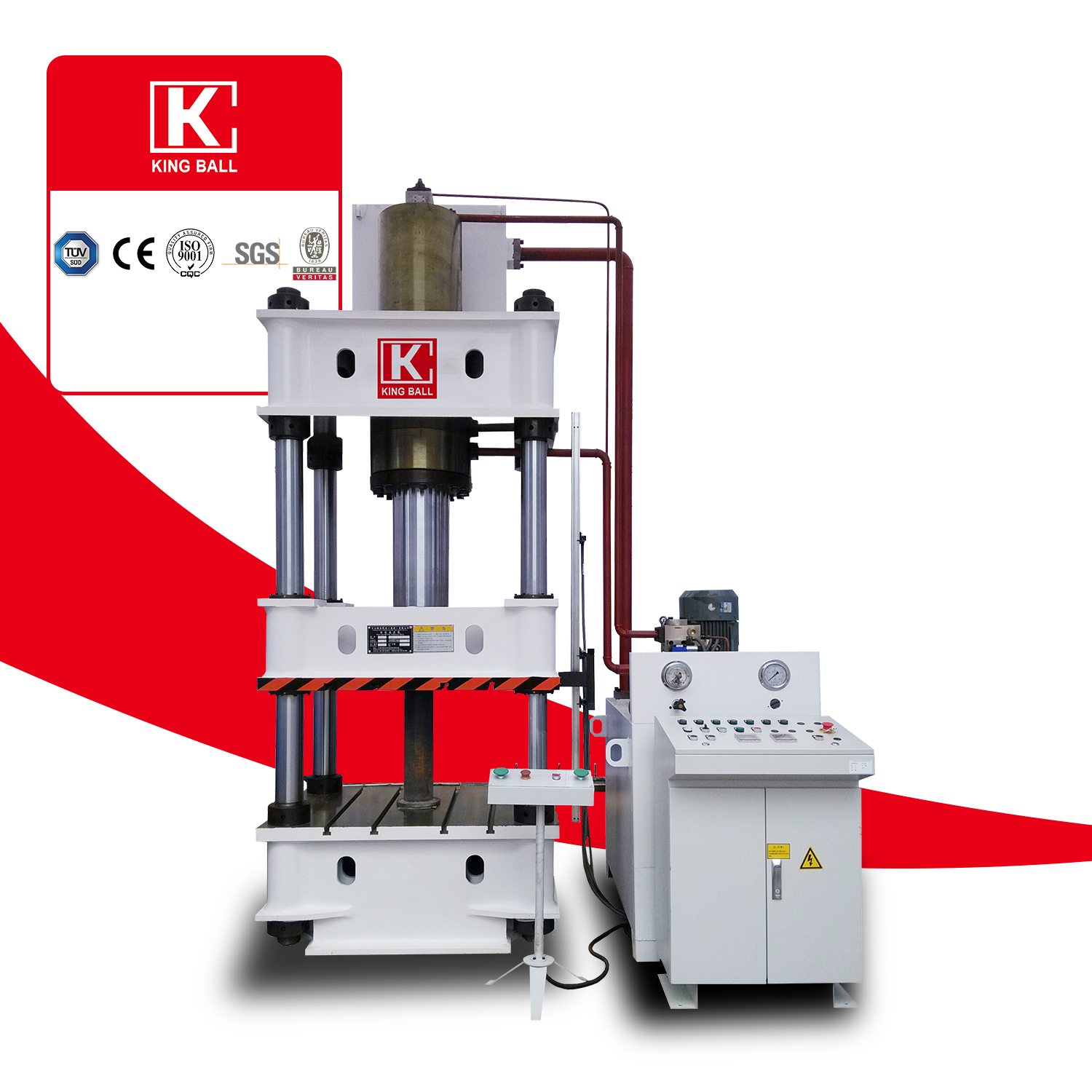

Four-column Hydraulic Press -Y32

This machine has independent power sector and electrical systems, and the use of relay control, can implement adjustment and semi-automatic operation. The machine working pressure, sliding fast stroke range can be adjusted according to process requirements; and to complete the process of constant pressure forming two processes given way. Constant pressure molding method after the suppression of the process, with the holding pressure and delay automatic return action.

库存： 0

Inquire

Add to Basket

Performance Parameters

No.	Name	Producer
1	Major Low voltage electrical	Schneider
2	Pump	Taifeng China
3	Main Motor	Siemens
4	Seal ring	NOK Japan
5	Hydrualic system	Taifeng China

Technical Parameters

Item	Unit	Y32-63	Y32-100	Y32-160	Y32-200	Y32-315	Y32-400	Y32-500	Y32-630	Y32-800	Y32-1000
Nominal pressure	KN	630	630	1000	2000	3150	4000	5000	6300	8000	10000
Knockout force	KN	160	160	250	400	630	630	1000	1600	2000	2000
Daylight	mm	800	800	800	1120	1250	1250	1500	1500	1500	1600
Slide stroke	mm	500	500	500	710	800	800	900	900	900	1000
Knockout stroke	mm	200	200	200	250	300	300	3600	360	360	450
Descent	mm/s	40	40	38	80	120	100	＞100	＞100	＞100	＞150
Pressiug	mm/s	7	7	10	5-12	5-12	4-10	4-10	5-12	5-12	4-10
Return	mm/s	580	580	70	70	65	50	50	60	90	100
L-R	mm	550	550	630	900	1200	1200	1400	1600	2000	2000
F-B	mm	630	630	630	900	1200	1200	1400	1600	1600	1800
Table hight above fioor	mm	700	700	700	550	700	700	715	500	300	300
L-R	mm	2370	2370	2200	2450	2830	2850	3300	3600	4800	7010
F-B	mm	900	900	1200	1300	1500	1500	1500	1800	2854	3000
Hight above fioor	mm	2770	2770	1800	3650	4300	4400	5400	5300	5400	5740
Motor power	KW	7.5	7.5	11	15	22	22	22	44	60	60

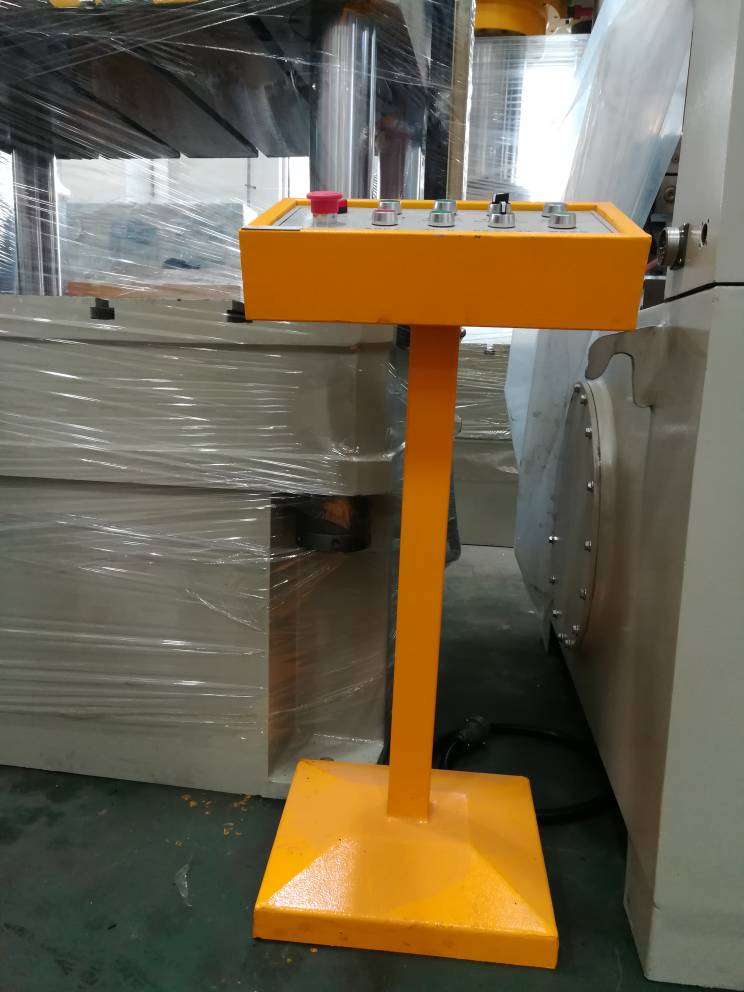

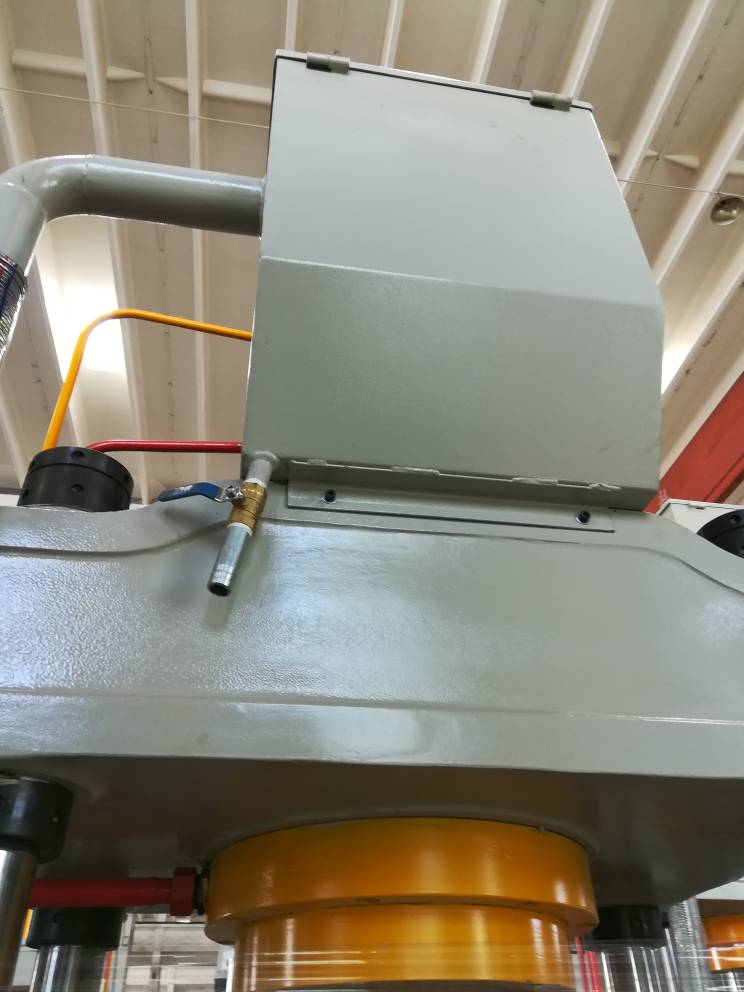

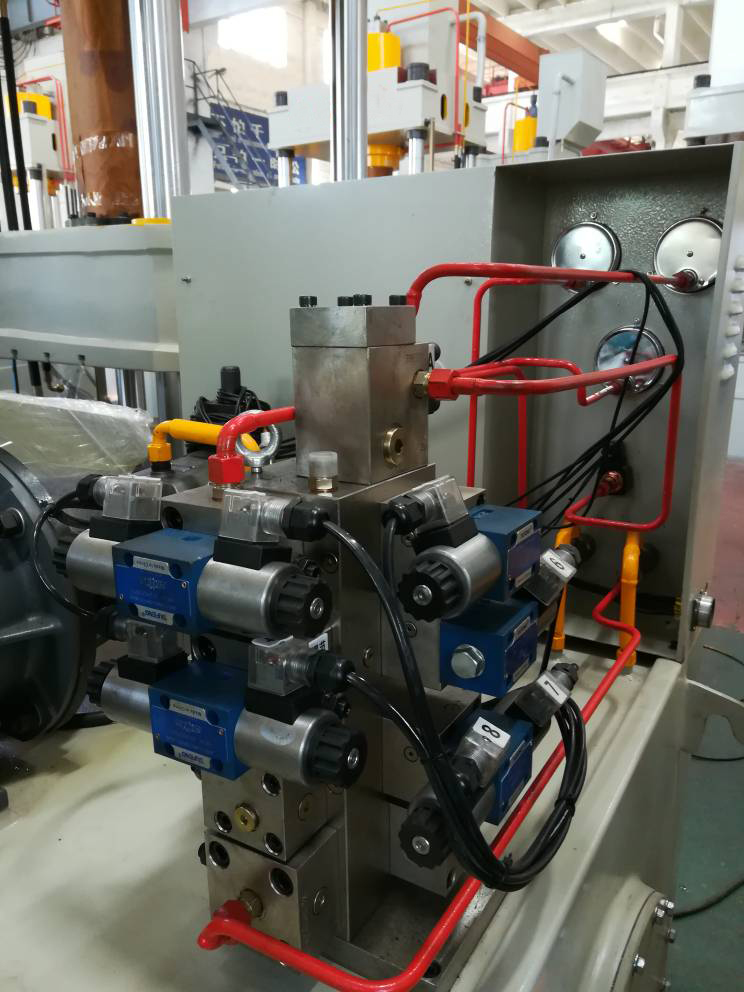

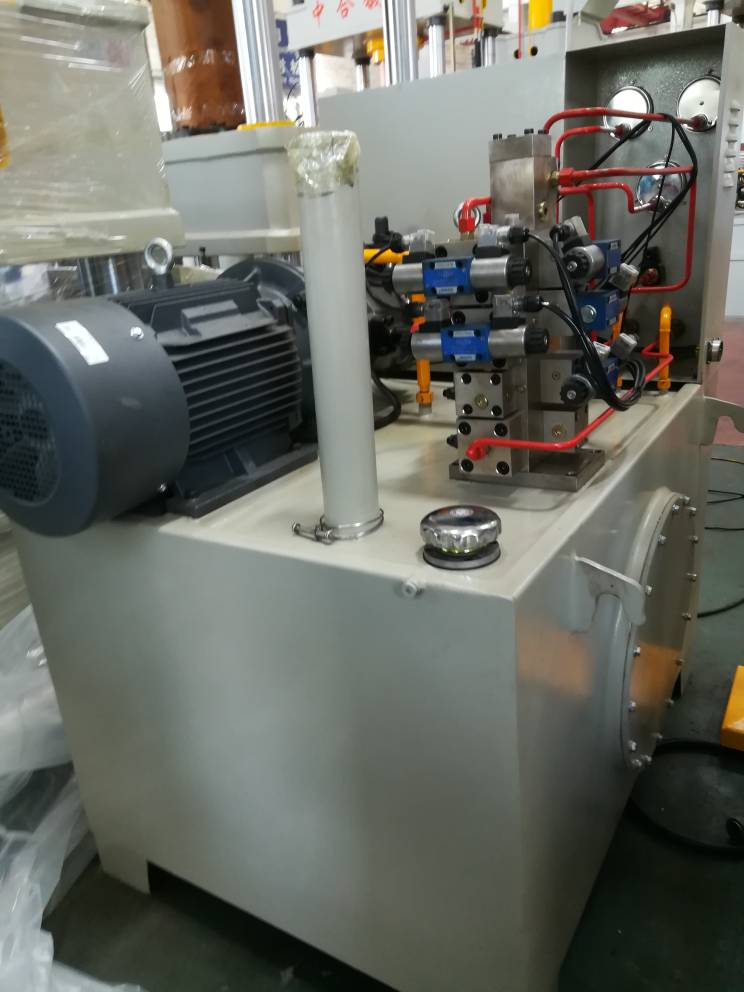

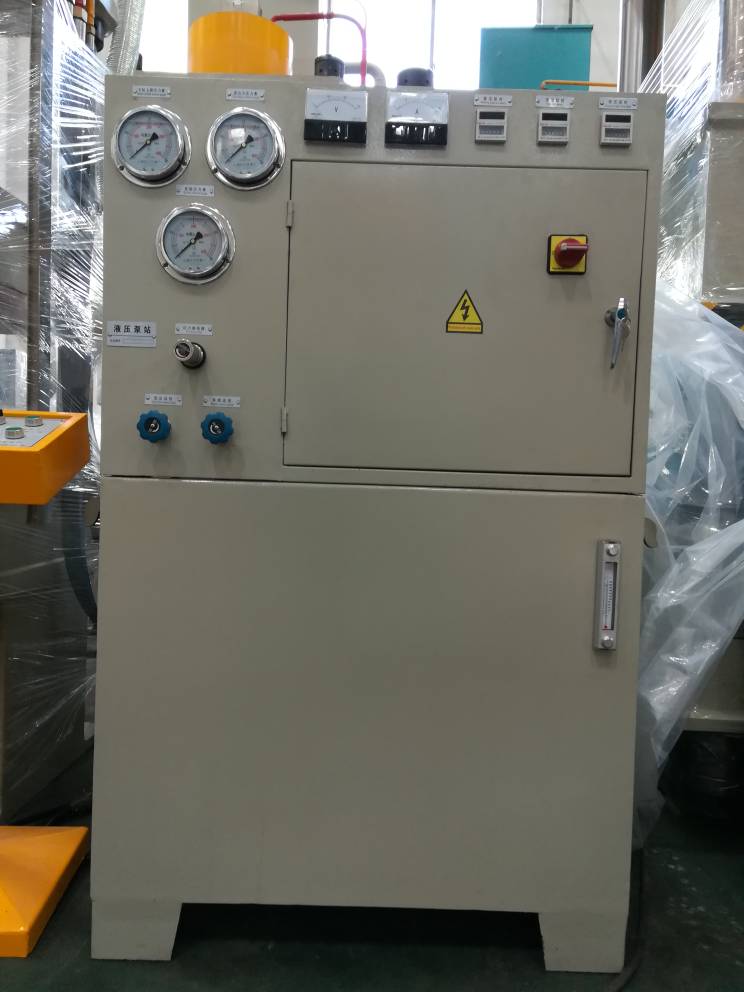

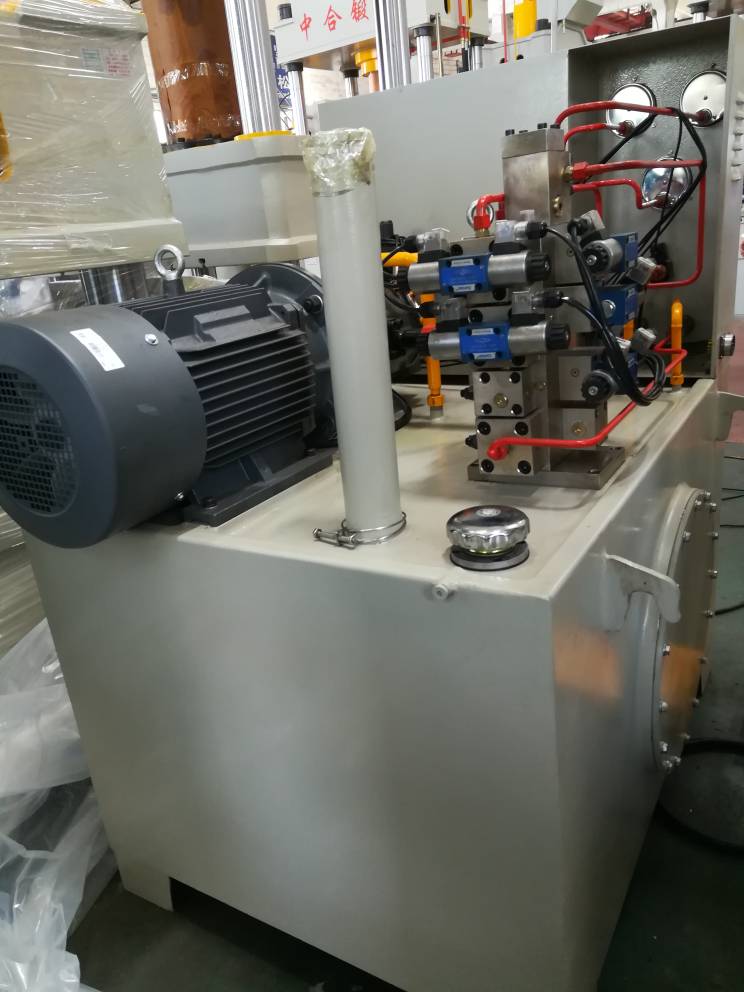

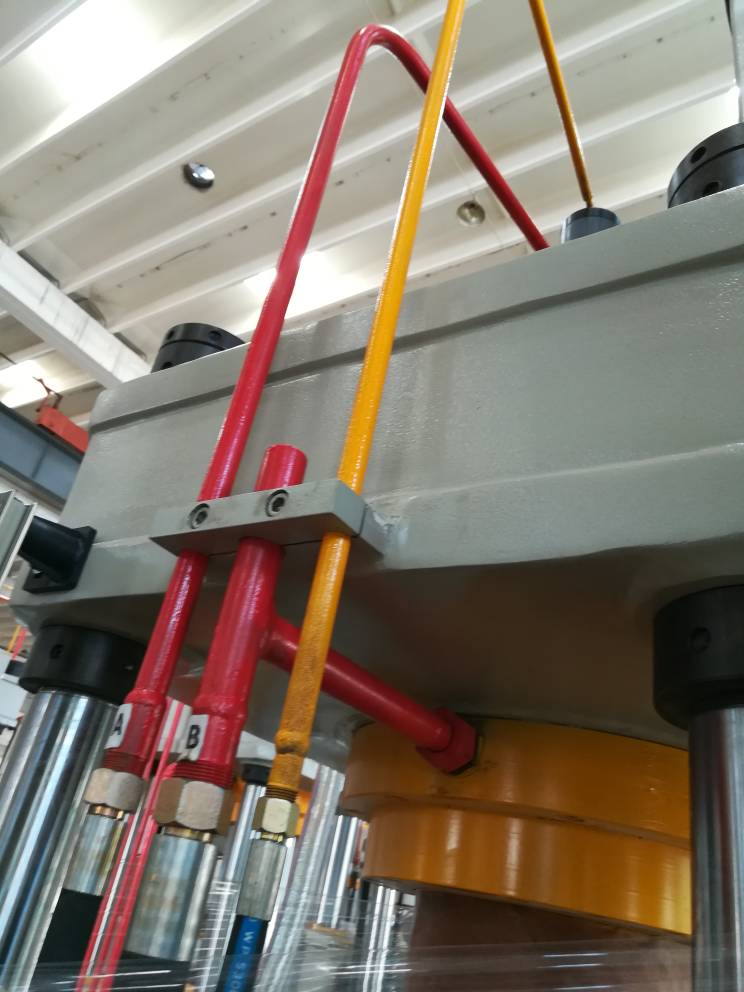

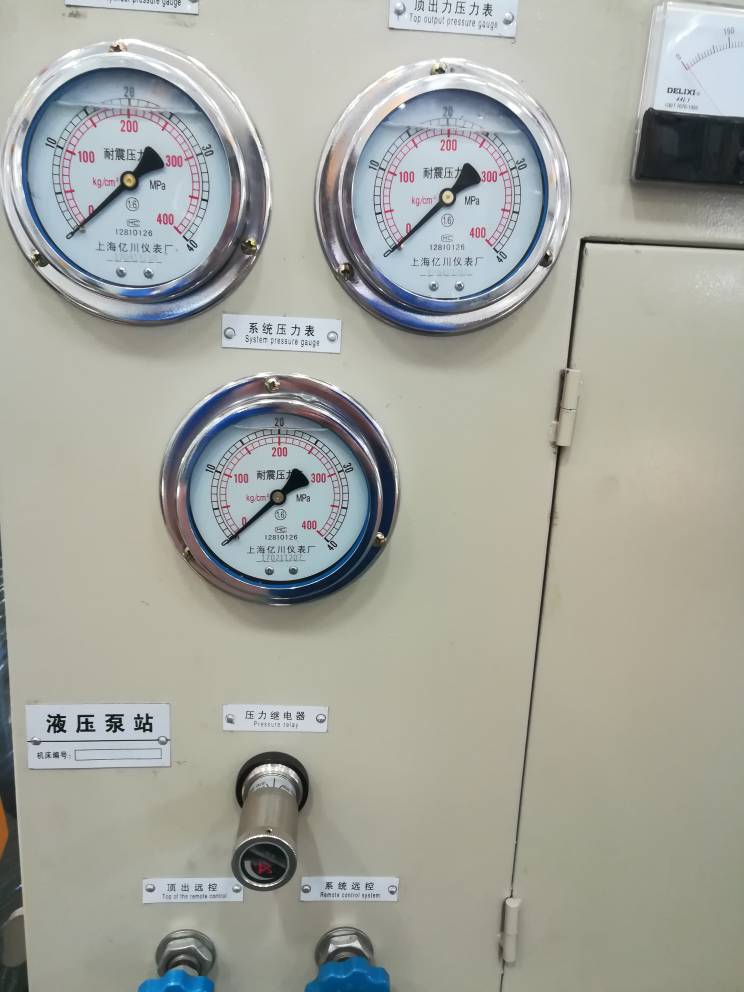

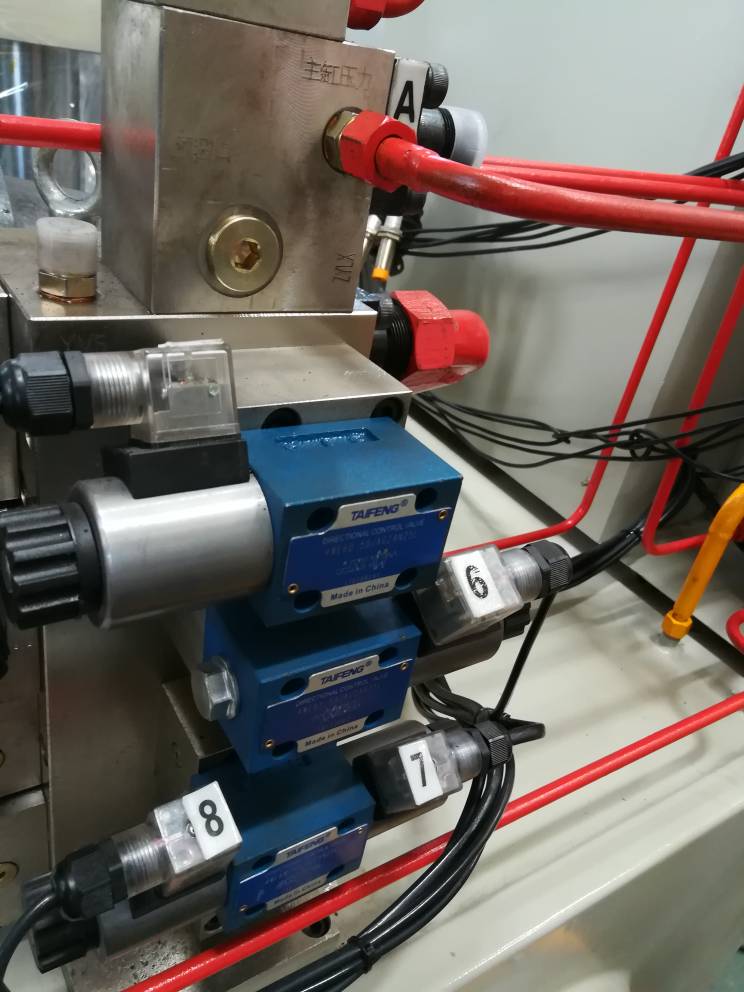

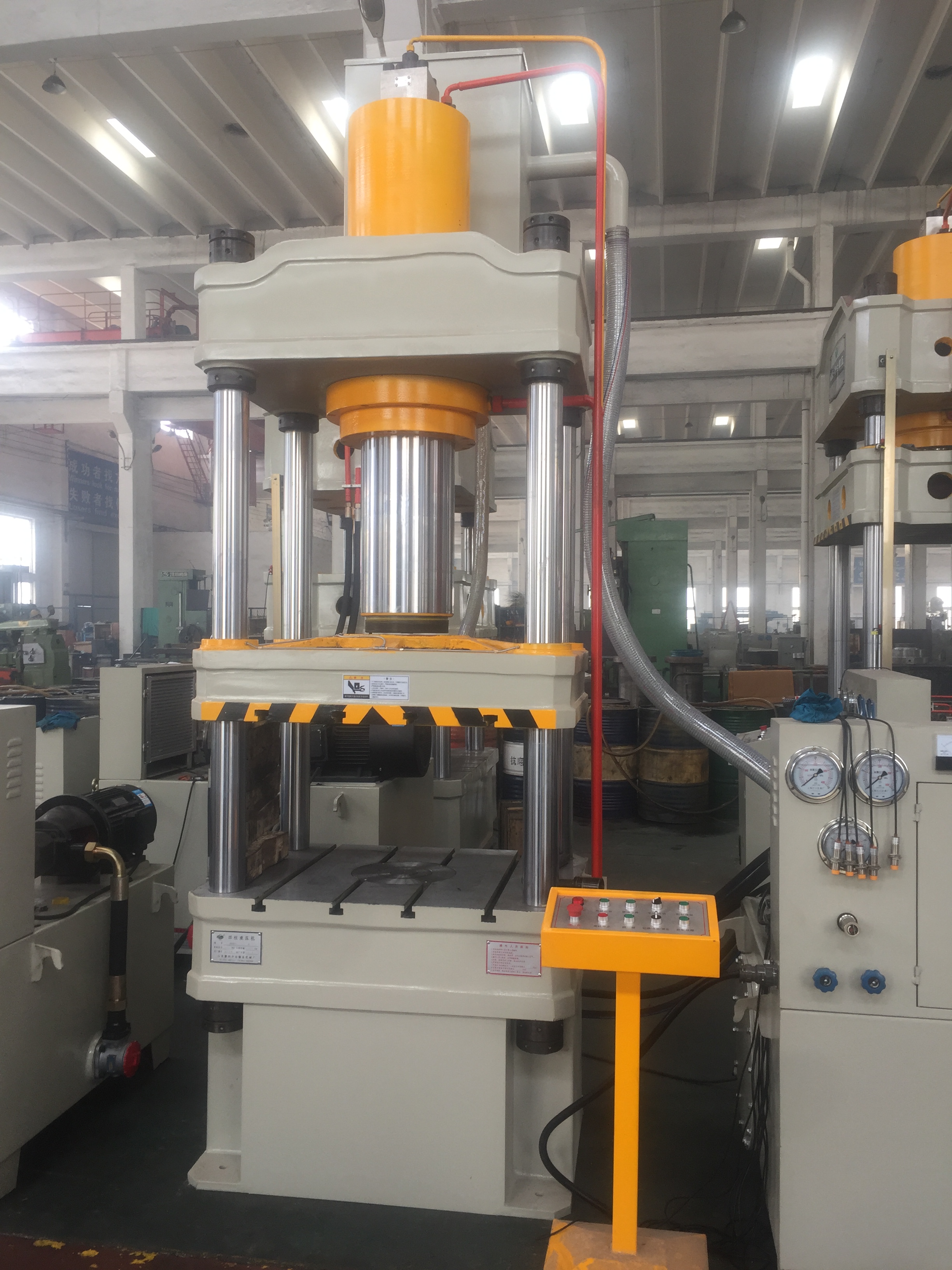

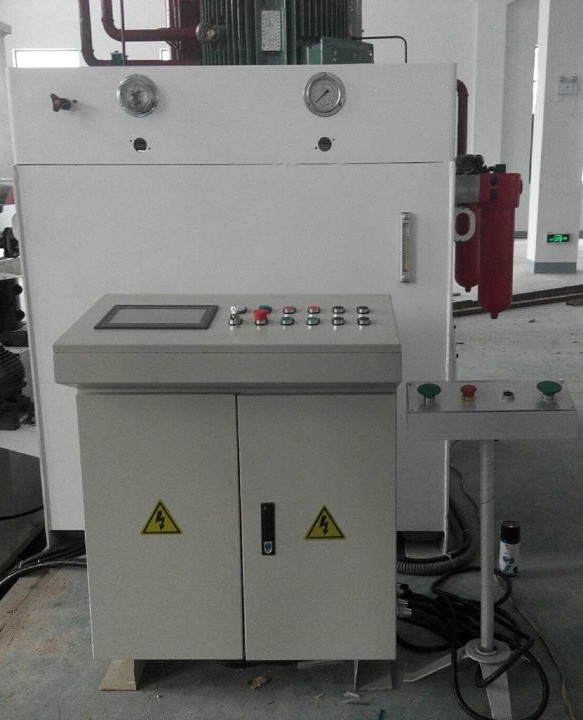

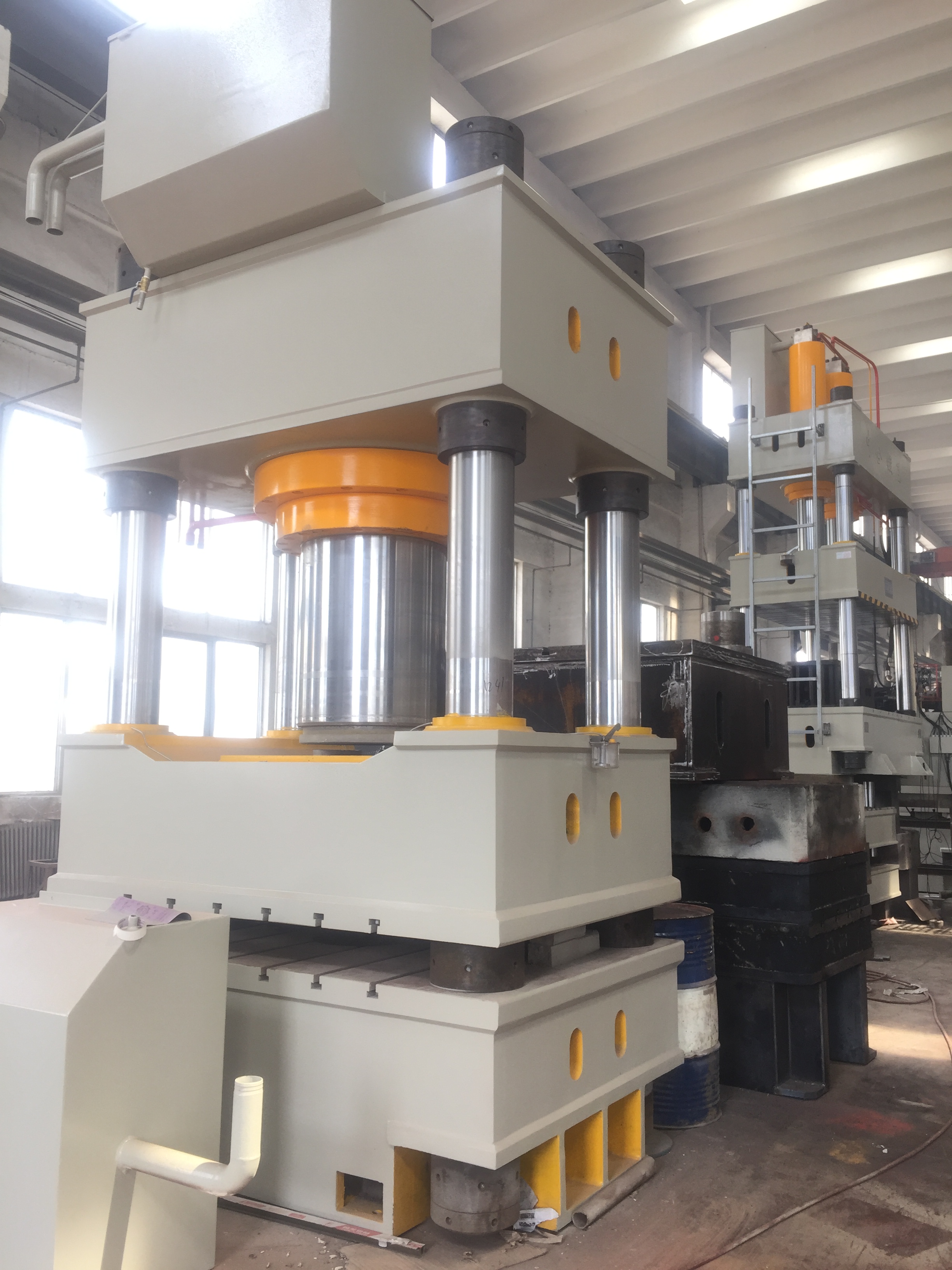

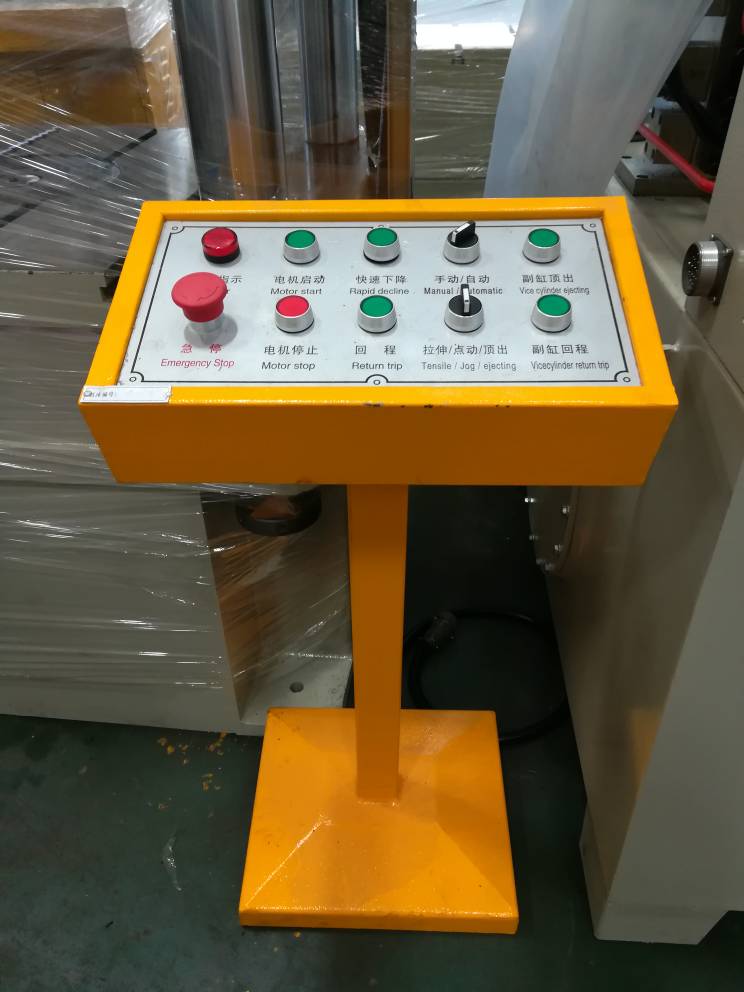

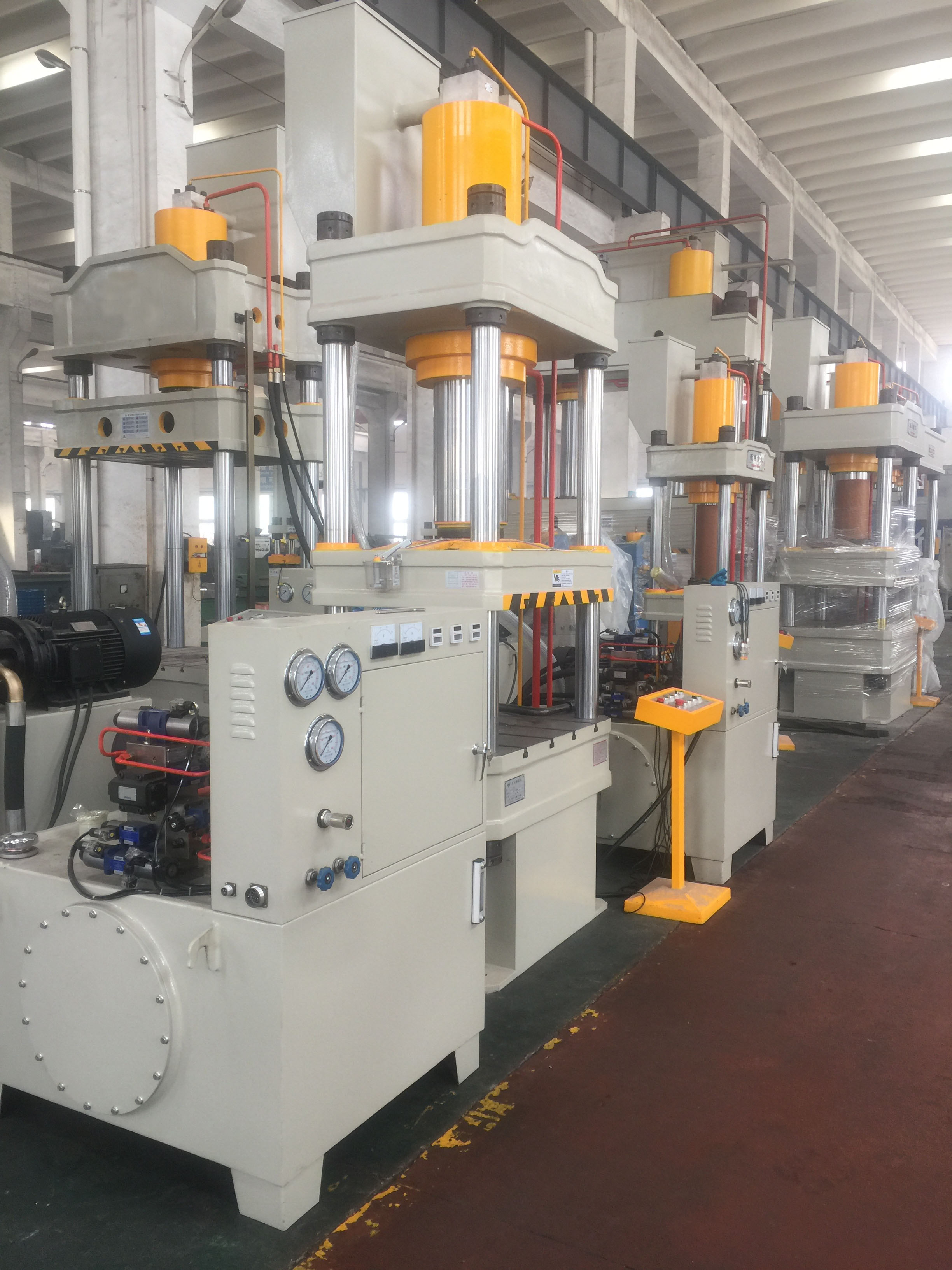

Detail Pictures

The Four-column Hydraulic Press -Y32 warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
