Full Servo Turret Punching Machine
With graphics function, step and continuous punch function.
Simple and convenient international G code programming.
The international RS232 standard interface is convenient for communication with the computer.
Equipped with advanced all-digital AC servo motor and servo system.
Semi-closed loop feedback of pulse encoder.
On-site programming, background programming.
Language selection: Chinese and English.
With graphic simulation function.
It is convenient to backup system parameters, ladder diagrams and processing programs, and realize online processing of large-capacity processing programs.
Interpolation, position detection and servo control are carried out in nanometers, which can realize high-speed and high-precision processing.
Using ultra-high-speed serial data bus, with fewer wiring cables.
High degree of integration, using special software, short startup time.
The control system is easy to learn and easy to operate.
Performance Parameters
| NO. | Item | Parameter | Unit | Remark |
| 1 | Impulse force | 300（30） | KN（T） | Optional 400（40） |
| 2 | Frame structure | "O" type closed | Fireplace tempering treatment | |
| 3 | Max sheet size | X-axis 5000 | mm | X-axis secondary positioning |
| 4 | Y-axis ¨1250¨1500¨2000¨2500 | mm | ||
| 5 | Max sheet thickness | 6.35 | mm | |
| 6 | Maximum diameter of one punching | Φ88.9 | mm | customize |
| 7 | Punching frequency | 1800 | hpm | |
| 8 | The highest punching frequency (1mm distance and 6mm stroke) | 800 | hpm | |
| 9 | The highest punching frequency (25.4mm distance 6mm stroke) | 400 | hpm | |
| 10 | Number of control axes | 5（X、Y、R、T、C） | piece | |
| 11 | Mold form | Long-oriented 85 series international standard mould | ||
| 12 | Distribution of turret stations¨28¨32 stations | þ10A、11B、5C、2D¨16A、11B、3C、2D(Including rotating stations: 1B, 1C） | standard | customize |
| 13 | Repositioning cylinder | 2 | set | |
| 14 | Maximum speed of sheet movement | 106 | m/min | |
| 15 | Worktable structure | Brush/ Steel Ball Composite Table | ||
| 16 | Turret speed | 30 | rpm | |
| 17 | Precision | ±0.10 | mm | |
| 18 | The useful life of the knife | Not less than 500,000 times | ||
| 19 | Max loading | 156 | Kg | |
| 20 | Power consumption | 5.2 | KW/h | |
| 21 | Air pressure | 0.6 | MPa | |
| 22 | Voltage | 380±5% | V | |
| 23 | Machine weight | ¨14¨16¨20¨25 | T | |
| 24 | Mold height | 209 | mm | |
| 25 | Machine size | ¨5200¨5500¨6400¨7400x5200x2280 | mm |
Servo system and its main spare parts list
| Item | Specification | Brand |
| Servo punch motor | 55KW×350rpm | SYNMOT |
| Wave filter | DL-180EBT | SYNMOT |
| Encoder | Resolver multi-pair pole 1024 lines | Tamagawa, Japan |
| Cooling oil tank | 96 liters in volume, cooling capacity 1200ml-min | SYNMOT |
| Encoder line | TRVVP twisted pair shielded wire | Taiwan |
| magnetic steel | AH class | Yunsheng, Ningbo |
| Temperature Sensor | PL3FC-312-S2-1 | NTC,Japan |
| Drive controller | 90KW | Imported components |
| DSP | TI 28324 | AB Rockwell, USA |
| Module | 400A | Fuji, Japan |
| CPLD | Alter, USA | |
| PCB | SYNMOT-90KW | DELTA |
| IPM | PM800HXS120 | Mitsubishi,Japan |
| Drive fan | DELTA | |
| Hall sensor | MRSS31U | NEC, Japan |
| Input isolation reactor | 90KVA | Yingfeng, Shanghai |
Detail Pictures
The Full Servo Turret Punching Machine warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.

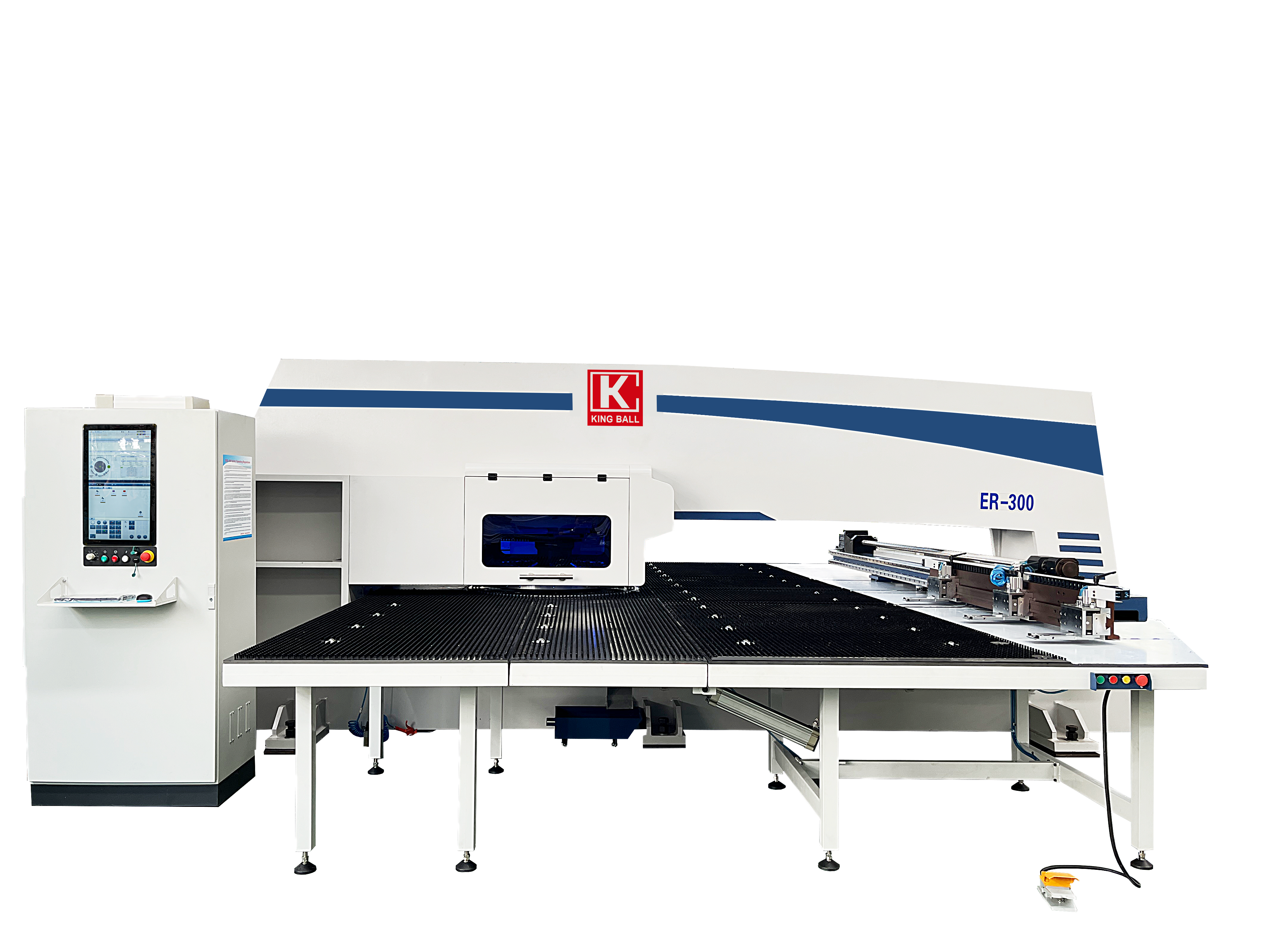

Front

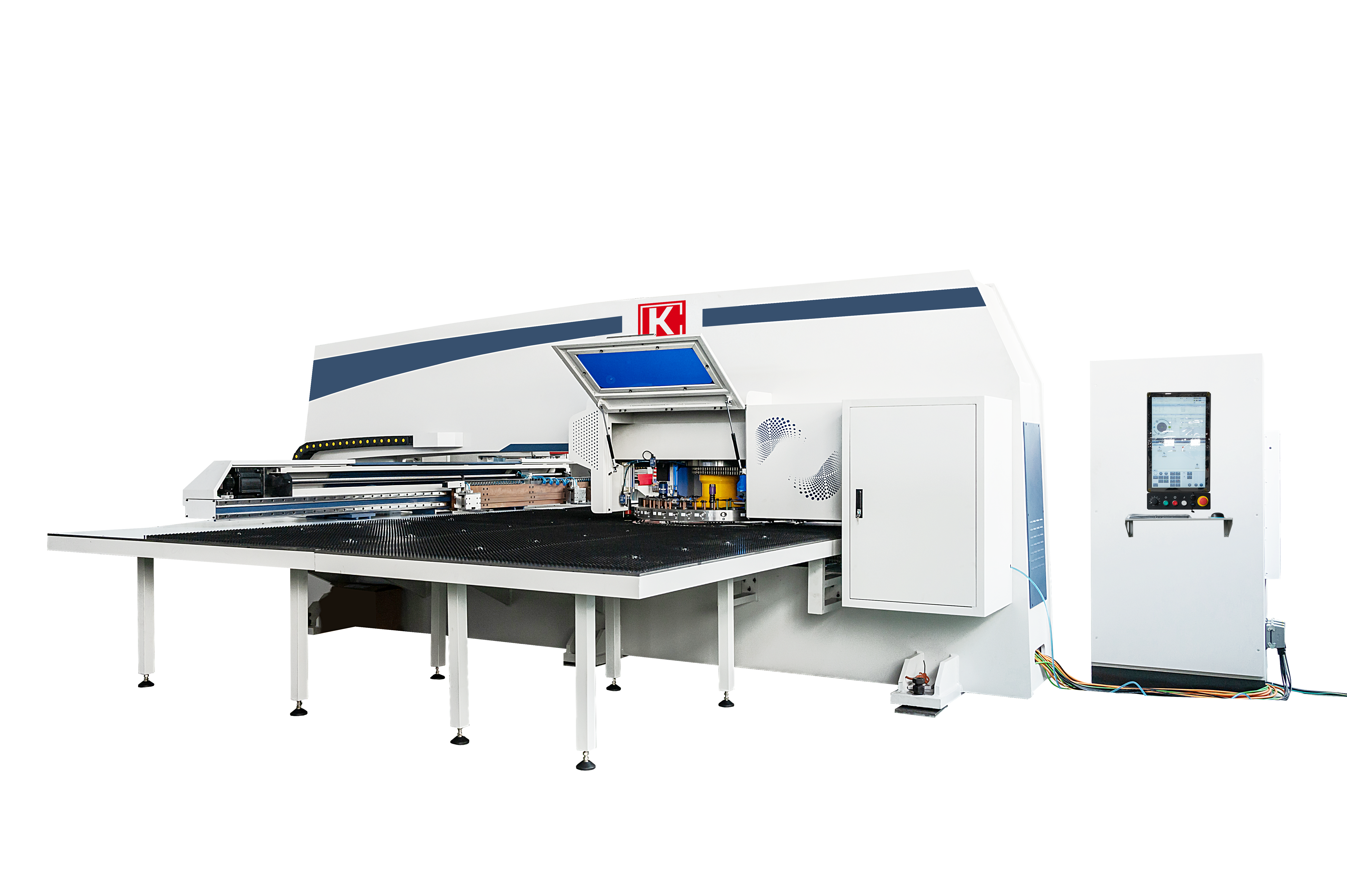

Back
| Picture | Item | Qty | Unit | Supplier | Description |
 | Control system | 1 | set | Langen Industrial Control System | Special industrial control system for CNC turret punch press |
 | Servo unitand motor | 4(x-5kw y-7.5kw t-2kw c-1.5kw) | set | Panasonic | High precision;high speed;strong adaptability; good stability. |

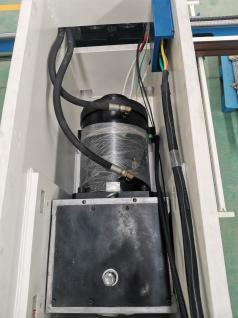

 | Main drive servo motor | 1 | set | SYNMOT | High stamping tonnage; permanent magnet synchronization;energy saving and consumption saving |

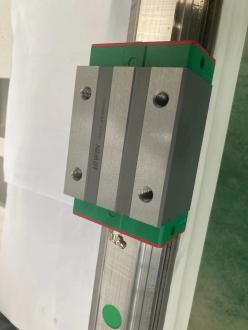

 | Linear Guides | 4(x-30 y-45) | piece | HIWIN | High positioning accuracy;suitable for high-speed movement, can bear the load in the up, down, left and right directions at the same time;strong impact load bearing capacity;low dust production and low noise. |
 | Ball screw | 2(x-5050 y-5050) | piece | TBI,Taiwan | High positioning accuracy;suitable for high-speed movement, can bear the load in the up, down, left and right directions at the same time;strong impact load bearing capacity;low dust production and low noise. |
 | Screw support bearing | 8(6207 7207) | piece | NSK,Japan | High precision;long useful life; load-resistant. |
| Turntable support bearing | 4(30220) | piece | NSK,Japan | High precision;long useful life; load-resistant. | |
 | Double chain | 2 | set | TSUBAKI,Japan | Double-row high-precision transmission chain imported from Japan. |

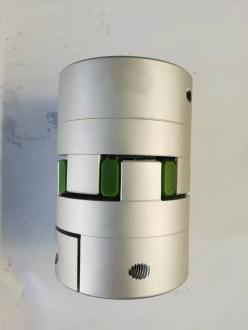

 | Coupling | 2/10 | piece | MANON,Shanghai | Domestic well-known brand, high transmission accuracy and high stability |

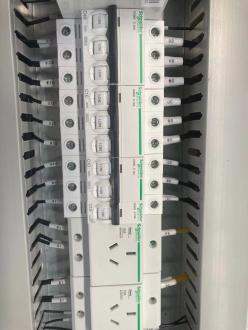

 | Electrical components | 1(WithElectric cabinet) | set | Schneider | An international brand with high working stability and safety. |
 | Power switch | 1(WithElectric cabinet) | piece | MW,Taiwan | The power consumption is small, the conversion rate is high, the voltage regulation range is wide, and the conversion speed is fast. |
 | Servo transformer | 1 | piece | SANO | The mechanical strength is good, the ability to withstand short circuits is strong, the performance to withstand overvoltage shocks is good, the capacity range is large, the loss is low, the overload capacity is strong, and the operating life is long. |
 | Pneumatic Components | 1 | set | AirTAC | Big international brand, fast response speed and long useful life. |
 | Valve | 1 | set | AirTAC | |
 | Proximity switch | 1 | set | RIKO,Taiwan | Fast response and high precision |
