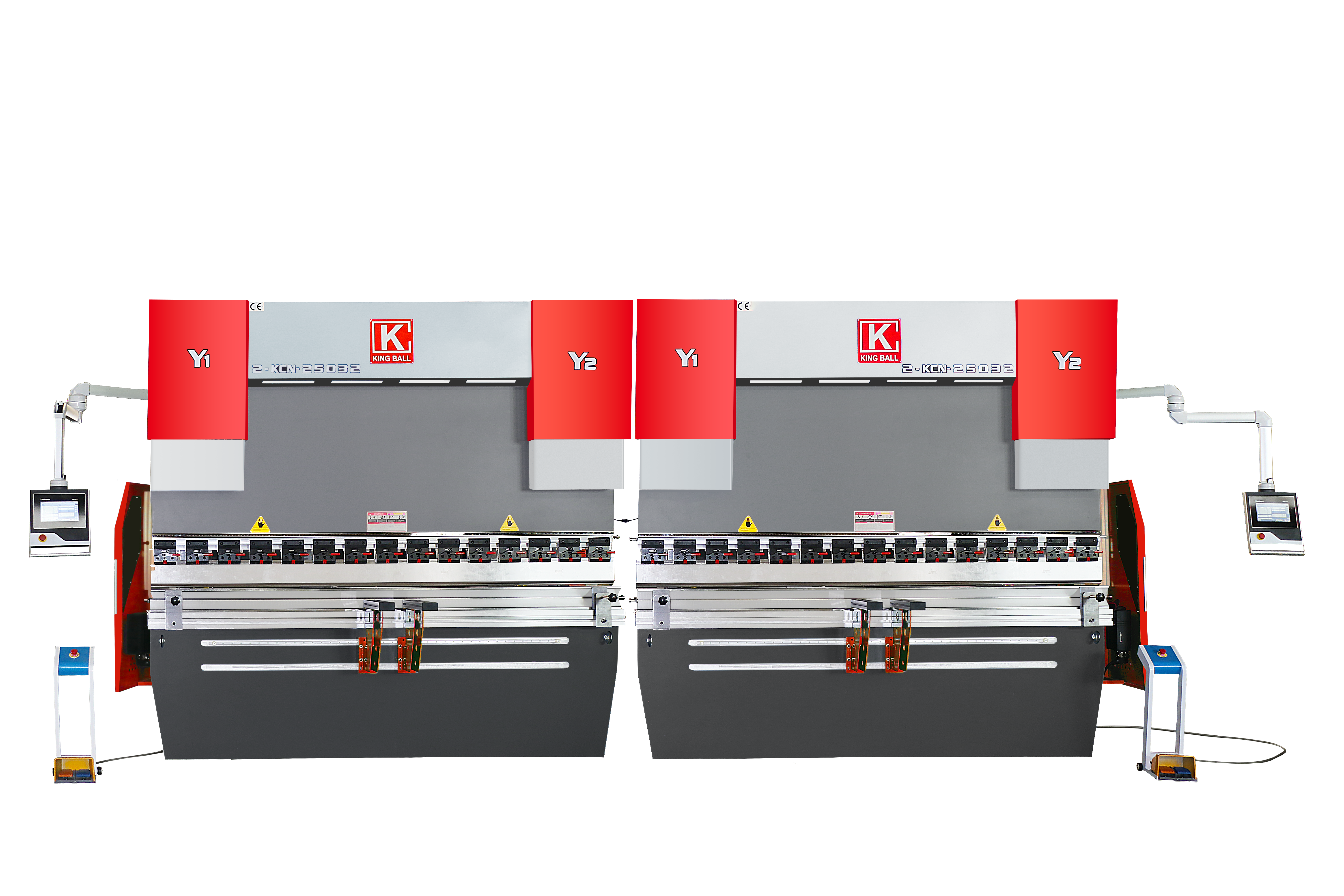

Tandem Hydraulic CNC Plate Press Brake
Bending Force: 400Ton-3200Ton
Bending Length:6000mm-16000mm
Controller Brand: DELEM, CYBELEC, ESA
Control Axes: 4+1/6+1/8+1axes
Overall welded and processed structure.The frameis analyzed using ANSYS finite elementanalysis software to ensurethe reliability of the machine and the precision of the machine.
Electic hydraulicproportional servo synchronization ensuring repeated accuracy.
The standard 4+ 1 axes,im ported ball serew and linearguide rall ensure the speed and acuracy ofthe backgauge.and more m uli-axes backgauge mechanism can be used accordingto customerrequirements.
The hydraulic system adopts the integrated control system imported from Germany which reduces theinstallatiorof pipelines, ensures the stability ofthe machine,and the appearance is simple and beautiful.
C-type plates are installed on both sides of the machine frame, and the high-precision grating ruler is mounted on the C-type plate so as to avoidthe infuence ofdeformation of the fuselage on the bending accuracyduring bending.
Automatic mechanical crowing mechanism eliminate the inftuence of sliderde for maion on workpiece quality. CNccontroller automatically adlusts the compensalonamount and the operaton is convenlent and accurate.
SpeciaL CNC controler normally uses Holland DELEM,taly ESA, Swiss CYBELEC.
Performance Parameters
| NO. | Item | Model：4016 | Model：6325 | Model：10032 | Model：10040 | Model：12532 | Model：12540 | Model：16032 | Model：16040 | Model：20032 | Model：20040 | Model：25032 | Model：25040 | Model：25060 | Model：30032 | Model：30040 | Model：30060 | Model：40040 | Model：40050 | Model：40060 | Model：50040 | Model：50050 | Model：50060 | Model：60050 | Model：80060 | Unit | ||
| 1 | Bending Force | 400 | 630 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 | 5000 | 5000 | 6000 | 8000 | KN | ||
| 2 | Bending Length | 1600 | 2500 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 | 4000 | 5000 | 6000 | 4000 | 5000 | 6000 | 5000 | 6000 | mm | ||
| 3 | Max.Slider Stroke | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | Mm | ||
| 4 | Daylight Opening | 430 | 460 | 480 | 480 | 480 | 480 | 480 | 480 | 480 | 480 | 530 | 530 | 530 | 530 | 530 | 530 | 580 | 580 | 580 | 590 | 590 | 590 | 630 | 800 | mm | ||
| 5 | Between Columns | 1200 | 2100 | 2600 | 3100 | 2600 | 3100 | 2600 | 3100 | 2600 | 3100 | 2600 | 3100 | 4800 | 2600 | 3100 | 4800 | 3100 | 4000 | 4800 | 3100 | 4000 | 4800 | 4000 | 4800 | mm | ||
| 6 | Throat depth | 300 | 320 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | 600 | mm | ||
| 7 | Main motor power | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 | 15 | 15 | 18.5 | 18.5 | 18.5 | 22 | 22 | 22 | 30 | 30 | 30 | 37 | 37 | 37 | 45 | 55 | KW | ||
| 8 | Down Speed | 80 | 80 | 160 | 160 | 160 | 160 | 130 | 130 | 130 | 130 | 120 | 120 | 120 | 120 | 120 | 120 | 110 | 110 | 110 | 100 | 100 | 100 | 100 | 100 | mm/s | ||
| 9 | Pressing Speed | 12 | 12 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | mm/s | ||
| 10 | Return Speed | 160 | 160 | 130 | 130 | 130 | 130 | 120 | 120 | 120 | 120 | 110 | 110 | 110 | 100 | 100 | 100 | 100 | 100 | 100 | 90 | 90 | 90 | 90 | 80 | mm/s | ||
| 11 | X axes Stroke | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 600 | 600 | 600 | 700 | 700 | 700 | 700 | 800 | mm | ||
| 12 | X axes Speed | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | mm/s | ||
| 13 | R axes Stroke | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | mm | ||
| 14 | R axes Speed | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | mm/s | ||
| Overall dimension | L | 2100 | 3000 | 3700 | 4500 | 3700 | 4500 | 3700 | 4500 | 3700 | 4500 | 3700 | 4500 | 6500 | 3700 | 4500 | 6500 | 4500 | 5500 | 6500 | 4500 | 5500 | 6500 | 5500 | 6500 | mm | ||
| 15 | W | 1450 | 1650 | 1750 | 1750 | 1800 | 1800 | 1870 | 1920 | 1920 | 1950 | 2150 | 2150 | 2200 | 2180 | 2250 | 2300 | 2400 | 2600 | 2650 | 2800 | 2800 | 2800 | 3000 | 3000 | mm | ||
| H | 2150 | 2350 | 2450 | 2450 | 2450 | 2450 | 2450 | 2700 | 2700 | 2700 | 3100 | 3200 | 3400 | 3200 | 3300 | 3500 | 4000 | 4150 | 4300 | 4100 | 4200 | 5200 | 5300 | 5600 | mm | |||
Configuration List
| Name | Producer |
| CNC controller | Delem---Netherlands brand |
| Main motor | Siemens---German brand |
| Gear pump | First---USA brand |
| Hydraulic system | Bosch rexroth---German brand |
| Tubing connector | EMB--- German Brand |
| Electrical components | Schneider--- France brand |
| Servo motor and drive | Fuji---Japan brand |
| Seal ring | NOK ---Japan brand |
| Ball screw ,Linear guide | Hawk King---Taiwan brand |
| Grating ruler | GIVI ---Italy brand |
| Optional-Main motor servo motor (380V,3P,50Hz) Voltage can be customized | Fuji---Japan brand(Be used for Delem & ESA) Inovance---China brand(Be used for CT600S) |
| Optional-Laser Protection | DSP---Nuova---Italy brand BlPS---Keli---China brand |
| Optional-Light curtain for rear | Keli---China brand |
Configuration List
| Delem CNC Controller Model | DA53Tx | DA58Tx | DA66S | DA69S |
| Appearance |  |  |  |  |
| Screen | 15" high resolution color TFT | 18,5" high resolution color TFT | 24" high resolution color TFT | 24" high resolution color TFT |
| Resoluntion | 1366 x 768 pixels, 32 bit colour | 1366 x 768 pixels, 32 bit colour | 1920 x 1080 pixels, 32 bit colour | 1920 x 1080 pixels, 32 bit colour |
| Maximum axes | Up to 4 +1 axes 6+1 axes (optional) | Up to 4 +1 axes 6+1 axes (optional) | Up to 8 +1 axes | Up to 8 +1 axes |
| Program method | Numerical 2D graphical programming (optional) | Numerical 2D graphical programming | Numerical 2D graphical programming3D simulation | Numerical 2D graphical programming3D graphical programming |
| Touch sensor | Full touch screen control (PCT-touch) | Full touch screen control (PCT-touch) | Industrial PCT touch screen control | Industrial PCT touch screen control |
| Storage capacity | 1 GB | 1 GB | 4 GB | 4 GB |
| Tooling | -Tool library 30 punches / 30 dies-Alphanumeric tool identification-Hemming tools-Radius tools | -Tool library 99 punches /99 dies-Alphanumeric tool identification-Free graphical tool programming-Hemming tools-Radius tools | -Graphical tool configuration-Multiple tool station set-ups-Tool segmentation visualization-Alphanumeric tool identification-Free graphical tool programming-Hemming tools-Radius tools-Tool adapter support-DXF tool import (optiona) | -Graphical tool configuration-Multiple tool station set-ups-Tool segmentation visualisation-Alphanumeric tool identification-Free graphical tool programming-Hemming tools-Radius tools-Tool adapter support-DXF tool import |
| Networking | Optional | Optional | Standard Windows® networking | Standard Windows® networking |
| Bend sequence calculation | / | Standrad | Standrad | Standrad |
| Offline software | Profile-53TL | Profile-58TL | Profile-S2D | Profile-S3D |
| Tandem capability | Optional | Optional | Standrad | Standrad |
| Language | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR | BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR |
| Control Axes | ||
| Ram stroke | ||
| Y1 | Left cylinder Electro-hydraulic synchronous closed loop control axes | |
| Y2 | Right cylinder Electro-hydraulic synchronous closed loop control axes | |
| Back Guage | ||
| X | Back gauge moving axes (front and back) Standrad:X axes---one servo motor Upgraded:X1,X2 axes---two servo motors | |
| R | Back gauge moving axes (up and down) Standrad:R axes---one servo motor Upgraded:R1,R2 axes---two servo motors | |
| Z | Back gauge stopper fingers moving axes (left and right) Standrad:Z axes---Manually Upgraded:Z1,Z2 axes---two servo motors | |
| Worktable Crowning | ||
| W | CNC Worktable Crowning Standrad:W axes---Motorized crowning | |
Back Guage Display (X,R,Z axes)
1 AXES BACK GAUGE(X)
1 axes back gauge, actually we mean 3+1 axes.1 axes back gauge is X axes. Z axes with manual linear guide. Fingers up and down, left and right can be moved manually.
2 AXES BACK GAUGE(X,R)
2 axes back gauge, actually we mean 4+1 axes. 2 axes back gauge are X axes and R axes Z axes with manual linear guide. Fingers left and right can be moved manually.
4 AXES BACK GAUGE(X,R,Z1,Z2)
4 axes back gauge, actually we mean 6+1 axes.4axes back gauge are X axes, R axes, Z1 axes and Z2 axes.
6 AXES BACK GAUGE
(X1，X2，R1，R2，Z1，Z2)
6 axes back gauge, actually we mean 8+1 axes. 6axes back gauge are X1 axes,X2 axes,R1 axes,R2 axes,Z1 axes and Z2 axes.
CNC Worktable Crowning(W axes)
The CNC crowning system calculates the compensation value according to theoverall deformation of the slider and the table surface.This allows the deformationcurve of the bed to be seamlessly aligned with the compensation curve, ensuringthe best straightness and angular consistency of our products.
Exaggerated to Demonstrate
Standrad:W axes---Motorized crowning
Detail Pictures
The CNC crowning system calculates the compensation value according to theoverall deformation of the slider and the table surface.This allows the deformationcurve of the bed to be seamlessly aligned with the compensation curve, ensuringthe best straightness and angular consistency of our products.
Front
Back
The Z axes stoppers move left and right on two linear guides manually.
The Z1,Z2 stoppers move left and right on two linear guides automatically by CNC controller.
Z axes
2 axes back guage(4+1 axes)
Z1,Z2 axes
4 axes back guage(6+1 axes
Z1,Z2 axes
6 axes back guage(8+1 axes)
Main Motor---Siemens---German brand
-High efficiency, energy-saving capabilities, large starting torque, exceptional reliability
-Easy to use and maintain
Gear pump---First---USA brand
-High-strength castiron, with low operate noise
-Unique internal noise reduction design can standing high pressure
-Low sensitivity to oil pollution, to ensuring long service life
Hydraulic System---Bosch rexroth---German brand
-Continuously working under the rated load,with hydraulic system that maintains stability and precision
-Completely leak-free
Tubing connector---EMB--- Germany Brand
-With high pressure resistant,no oil leak,easy to maintain
Electrical components---Schneider--- France brand
-All electrical components imported from France
-Neat wiring,Stable and durable performance,ensuring long service life
Servo Motor and drive---Fuji---Japan brand
Servo Motor and drive---Inovance---China brand
-satisfy high precision positioning requirements
Seal ring---NOK---Japan brand
-Imported from Japan, good sealing effect, easy to install
-Oil resistance, wear resistance, high temperature resistance, anti-aging, prevent oil leakage
Ball screw ,Linear guide---Hawk King---Taiwan brand
-Backgauge with ball screw and linear guide, high precision, fast speed and low noise.
Grating ruler---GIVI---Italy brand
-High-precision grating scale mounted on C-board.
Double sliding front support arm installed on the linear guide, movable easy.
One-key type quickly release clamping.
The guideway use the brass, wear-resisting,long service life.
Two sides door-type safety guard
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
Hand lubrication pump
| Optional | Name | Description |
 | Main motor servo motor | SVP control technology,energy saving rate over 50%, avoid hydraulic oil fast heating up,reduce hydraulic errors. |
 | Laser safety protection | ●DSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the machine. |
 | Safety light curtain | China brand SDKELI safety light curtain, installed on the back of the machine, if someone enters the machine, the machine ispowered off. |
 | Bending follower | ●Sheet supporting plate can follow the workpiece during the bending. The following degree and speed are controlled by CNC controller. Bending-help device can move along linear guide left and right. ●The height can be adjusted up and down manually, also the device can move front and rear to match the die opening manually. ●Two choices for supporting table: Brush and stainless tube. The bending-help device can be controlled to work simultaneously or independently. |
 | Tool cabinet | Total 6 layers 3 layers for punch 3 layers for die |
 | Double-sided quick release clamping | Both sides can be quickly clamped and released |
 | Oil cooler | Decide the price according to the model |
 | Oil heater | Decide the price according to the model |
 | Automatic Laser bending angle measurement system---DATAM---German brand | ●Angle measurement ●Spring-back measurement ●Very high accuracy ●Works contactless |
 | Wila Hydraulic Clamping | ●Extremely fast press brake tooling changes ●Extremely accurate clamping, positioning and alignment ●Individual clamping pins for each tool segment for superior clamping force ●Vertical and horizontal tool loading and unloading for maximum speed and safety ●Professional finish, including a slide rule for ease of tool positioning |
