Panel Bender
It can easily achieve a variety of complex shapes or forming effects that cannot be achieved by ordinary bending machines without the need for additional special bending dies in actual use. For example, right-angle bending, non-right-angle bending, arc, positive and negative bending, pressure dead edge, and other combinations of complex shapes, apply to different industries in the field of metal forming. The whole machine adopts an all-electric closed-loop servo numerical control system, instead of the traditional hydraulic drive, with energy saving and environmental protection, high speed, high precision, light maintenance, or maintenance-free advantages.
Performance Parameters
| DES-2500 | ||||
| Fastest bending speed | ≤0.2 sec/knife | |||
| Maximum bending length | 2500mm | |||
| Bending height | 175mm | |||
| rated voltage | 380V | |||
| peak power | 25KW | |||
| average power | ≈2.5KW | |||
| noise value | ≈40db | |||
| Overall dimensions | About: L600cm X W340cm X H420cm | |||
| total mass | About 20 tons | |||

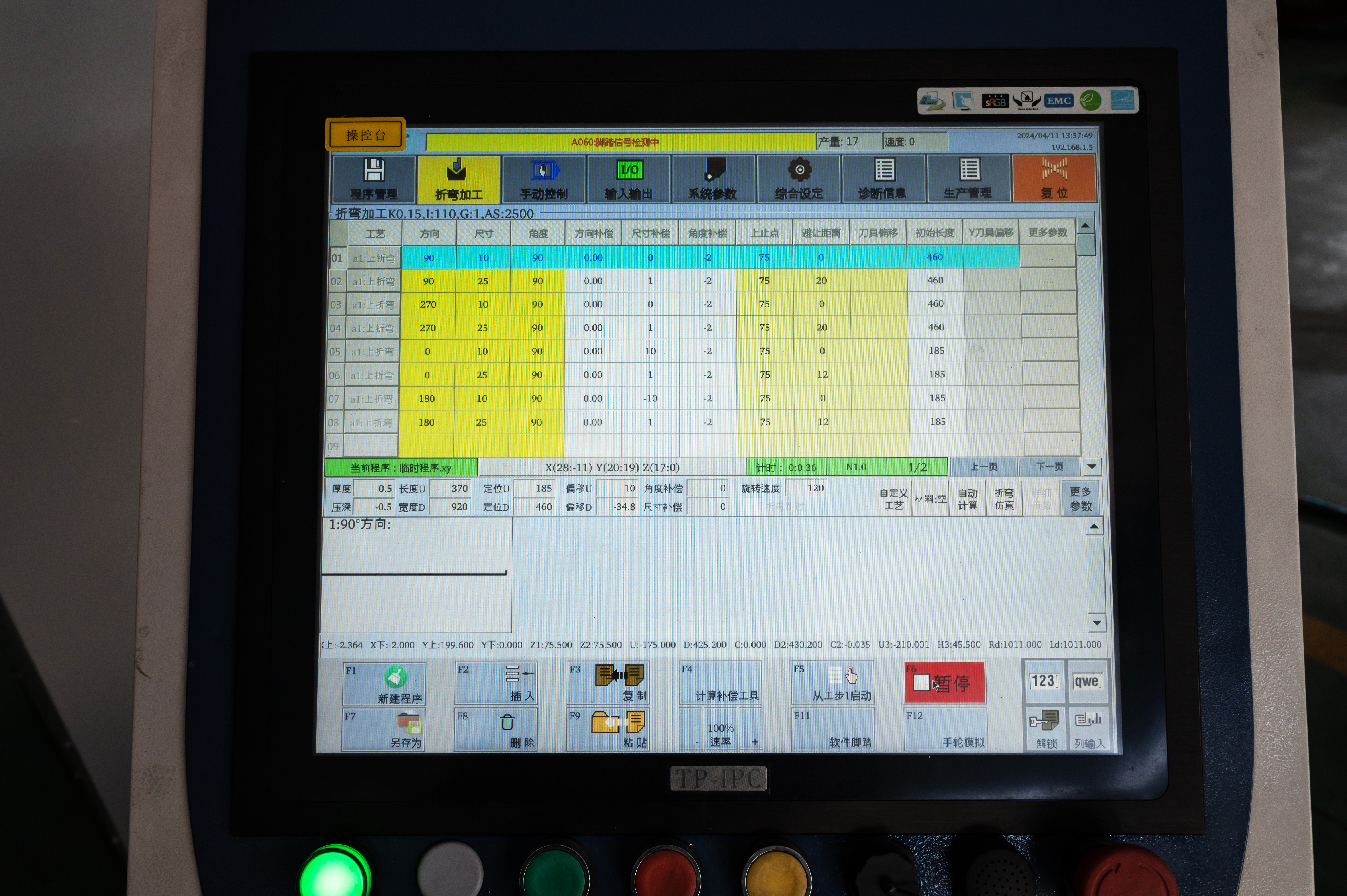

| software running platform | Windows CE | |||
| software | Kingball self-developed | |||
| Clamping method | Custom made | |||
| Maximum bending thickness (standard knife) | Stainless steel 1.0mm | Special panels can be customized | ||
| Cold plate 1.5mm | ||||
| Aluminum plate 1.6mm | ||||
| Minimum material thickness | 0.35mm | |||
| Minimum size for quadrilateral forming | Custom made | |||
| Minimum size of bilateral one-time forming | About 220mm | Can Be Customized | ||
| Hinge knives (2 sets) | Apolegamy | |||
| Advanced Instructions | √ | Standard Configuration | ||
| arc command | √ | Standard Configuration | ||
| Replaceable fixtures | √ | Apolegamy | ||
| C-axis > 360° | √ | Standard Configuration | ||
| Self-lubricating systems | √ | Standard Configuration | ||
| Partial load detection | √ | Standard Configuration | ||
| Partial load follow-up | √ | Standard Configuration | ||
| Plate thickness detection | √ | Standard Configuration | ||
| Automated loading and unloading interface | √ | Standard Configuration | ||
| Flattening function | √ | Standard Configuration | ||
| Pressing the dead edge up and down | √ | Standard Configuration | ||
| handwheels | √ | Standard Configuration | ||
| Automated Pipeline Interface | √ | Standard Configuration | ||
| Warranty | 1 year | Lifetime technical support | ||
Configuration List
| NO. | Name | Supplier/Brand |

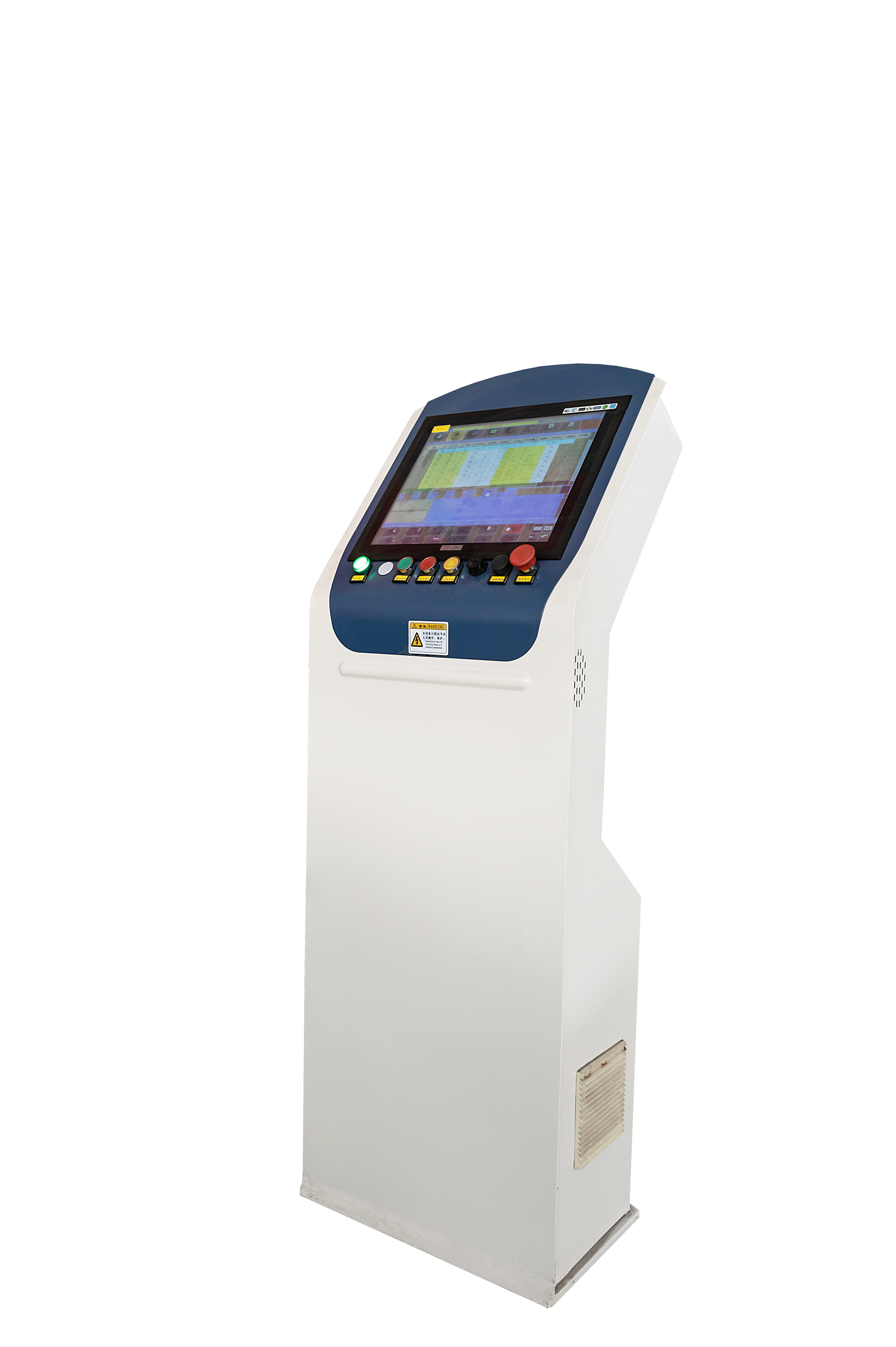

| 1 | control system | Kingball Technology independently develops a new generation of control systems for flexible bending machines. |
| 2 | Operating system | Genuine Microsoft Windows CE operating system for CNC |
| 3 | C rotating mechanism | High-precision rotary platform |
| 4 | Servo drive | Imported servo driver |
| 5 | Screw rod | Taiwan Shangyin/Nanjing Craft |
| 6 | bearing | Japan NSK/NACHI |
| 7 | slideway | Taiwan Shangyin/Nanjing Craft |
| 8 | Bed body | Patented design welding integrated body |
| 9 | Upward and downward curved knives | Patented spherical bending blade |
| 10 | Pneumatic accessories | Taiwan Yadeke AirTAC |
| 11 | coupling | Taiwan Linke |
| 12 | Oil system | Taiwan Yushiang |

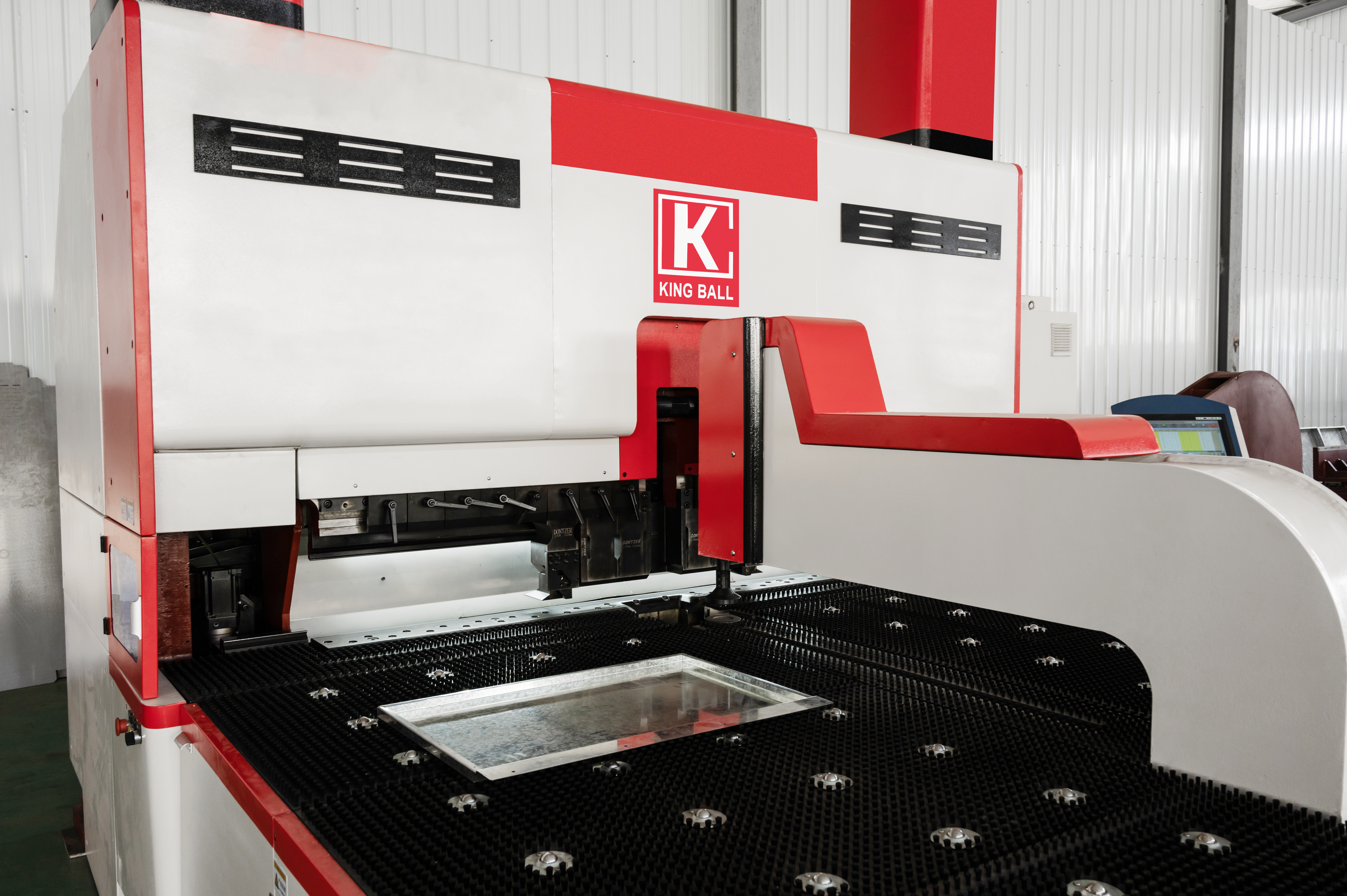

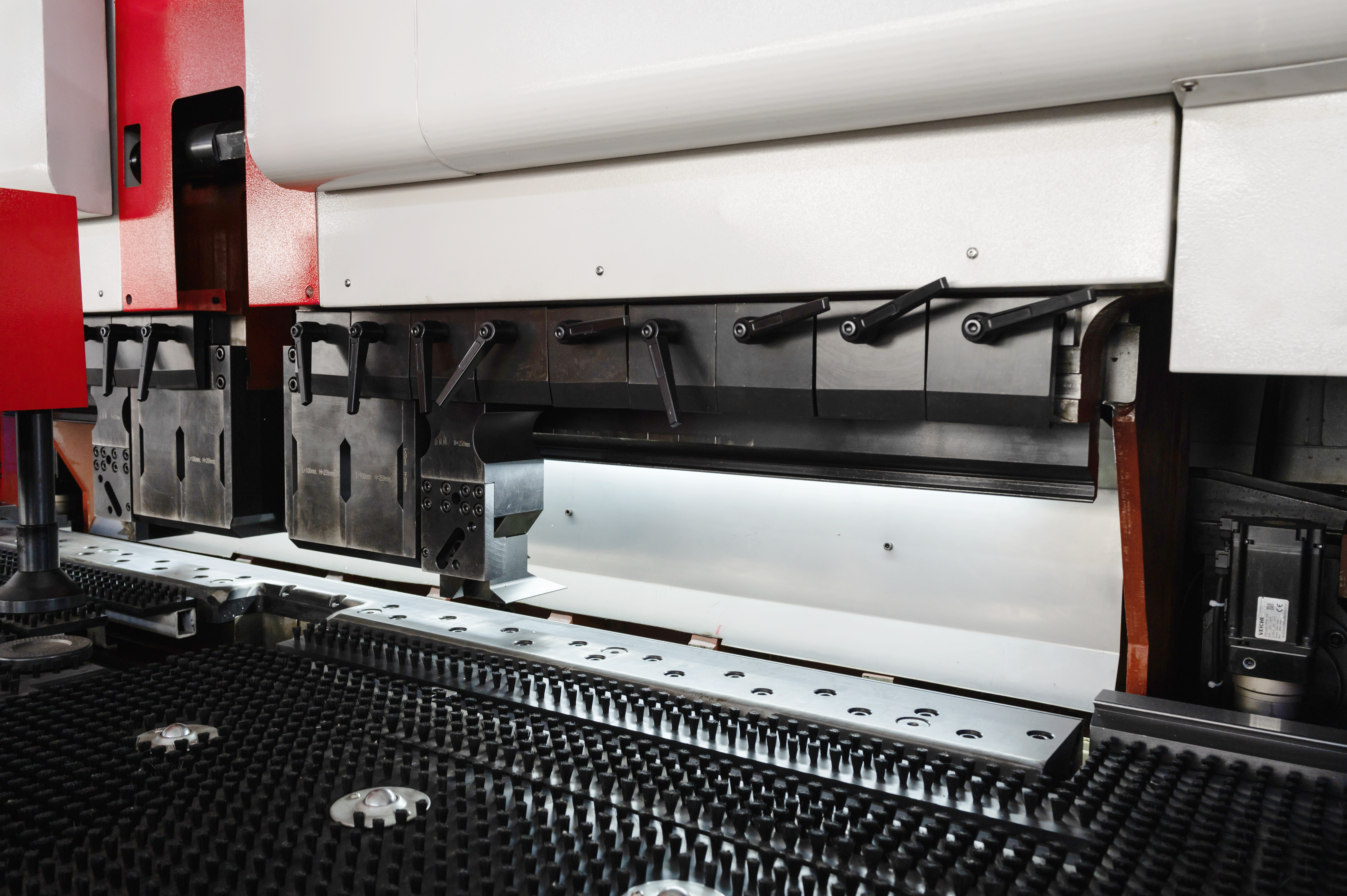

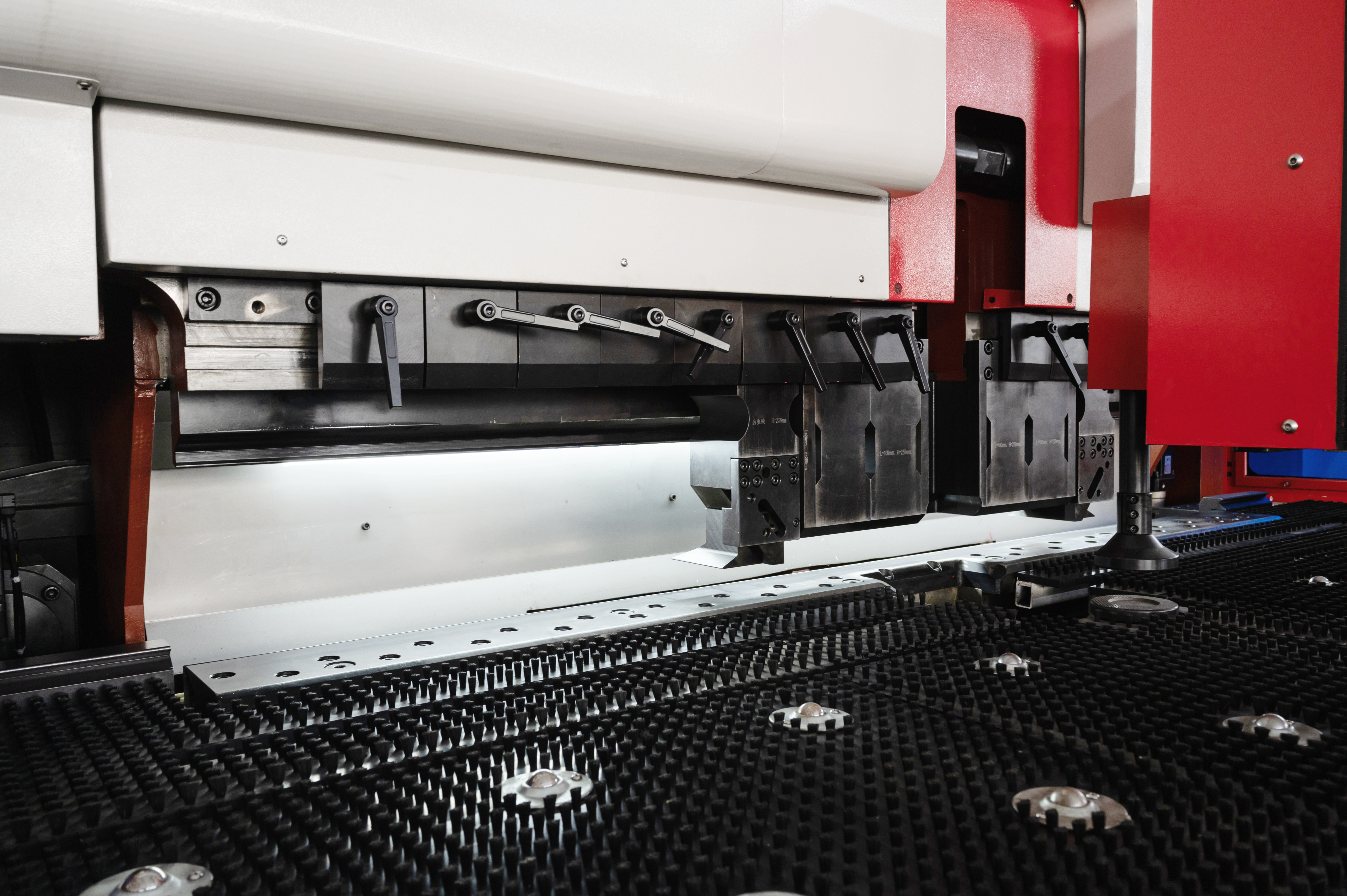

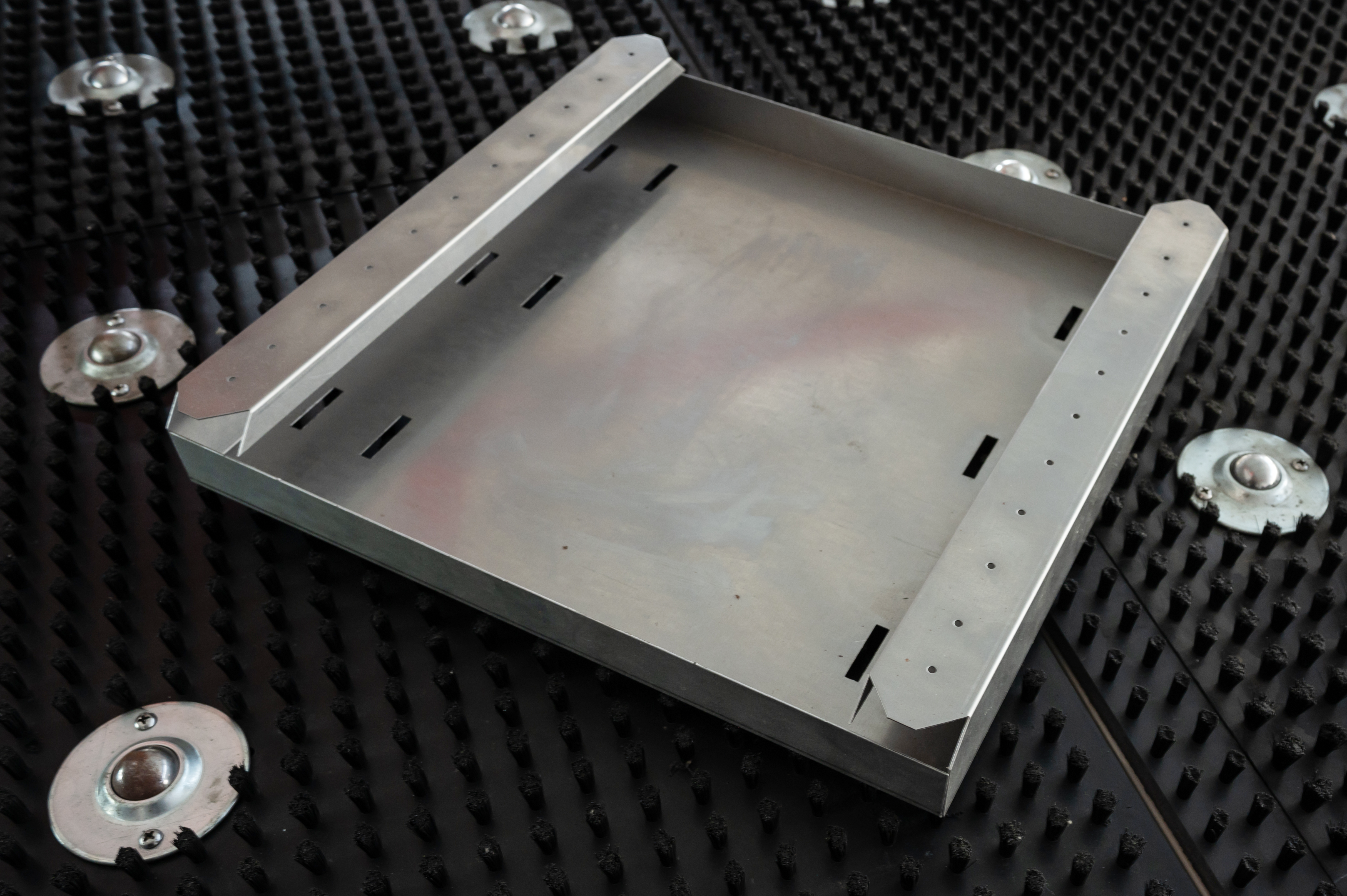

Detail Pictures
The Panel Bender warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.

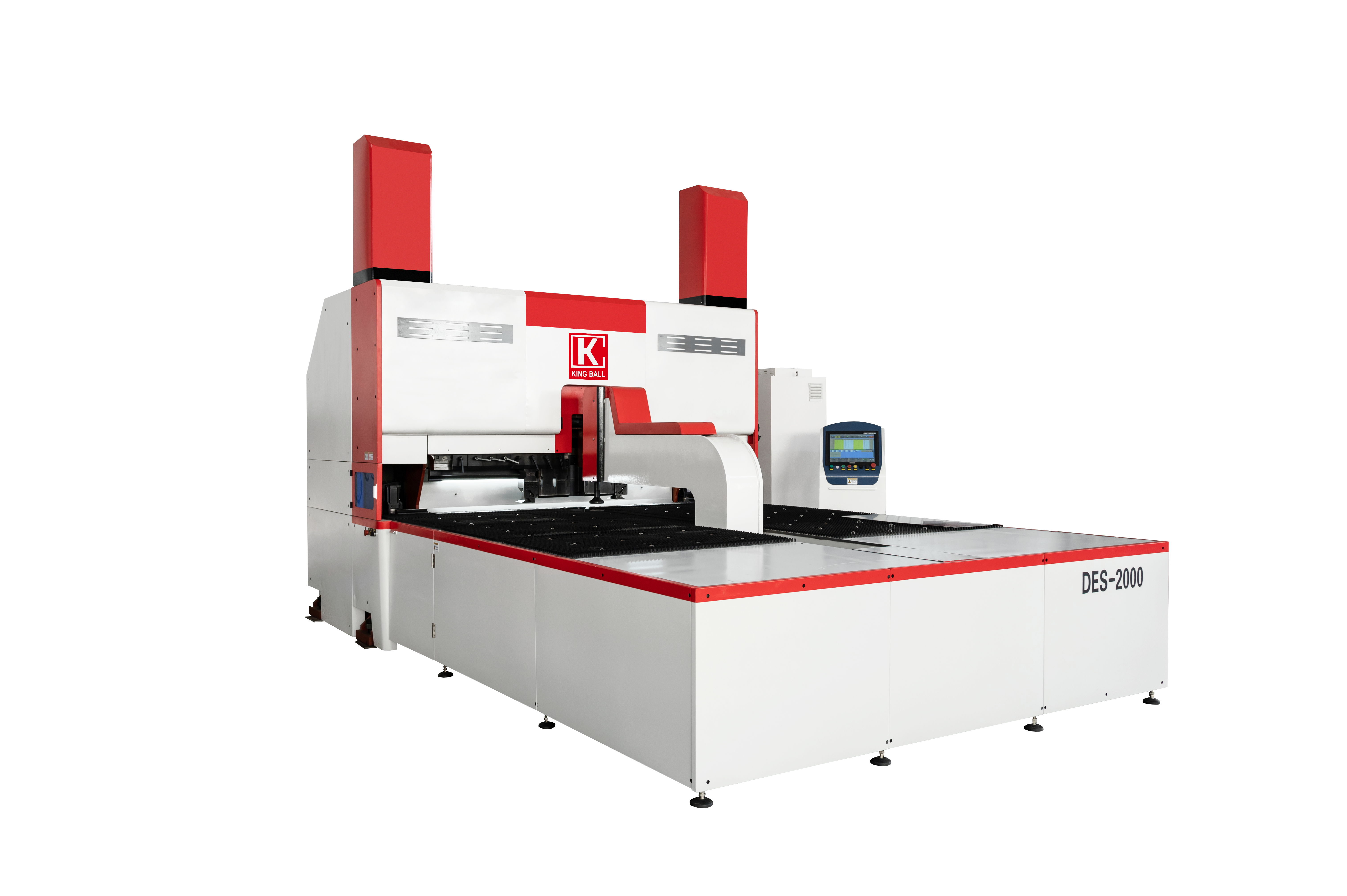

Front

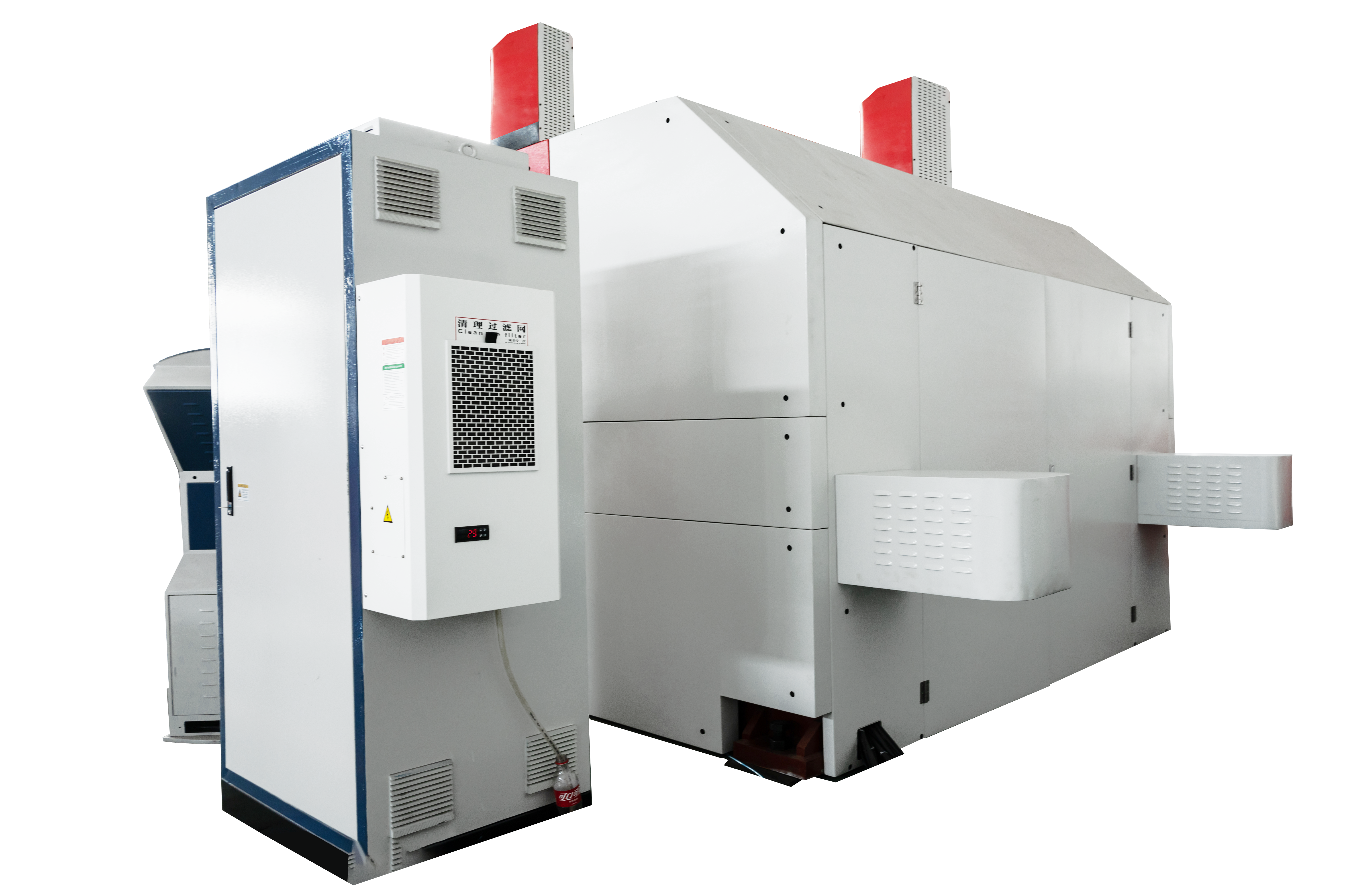

Back
| Optional |
 |
 |
 |
 |
 |
 |
 |
