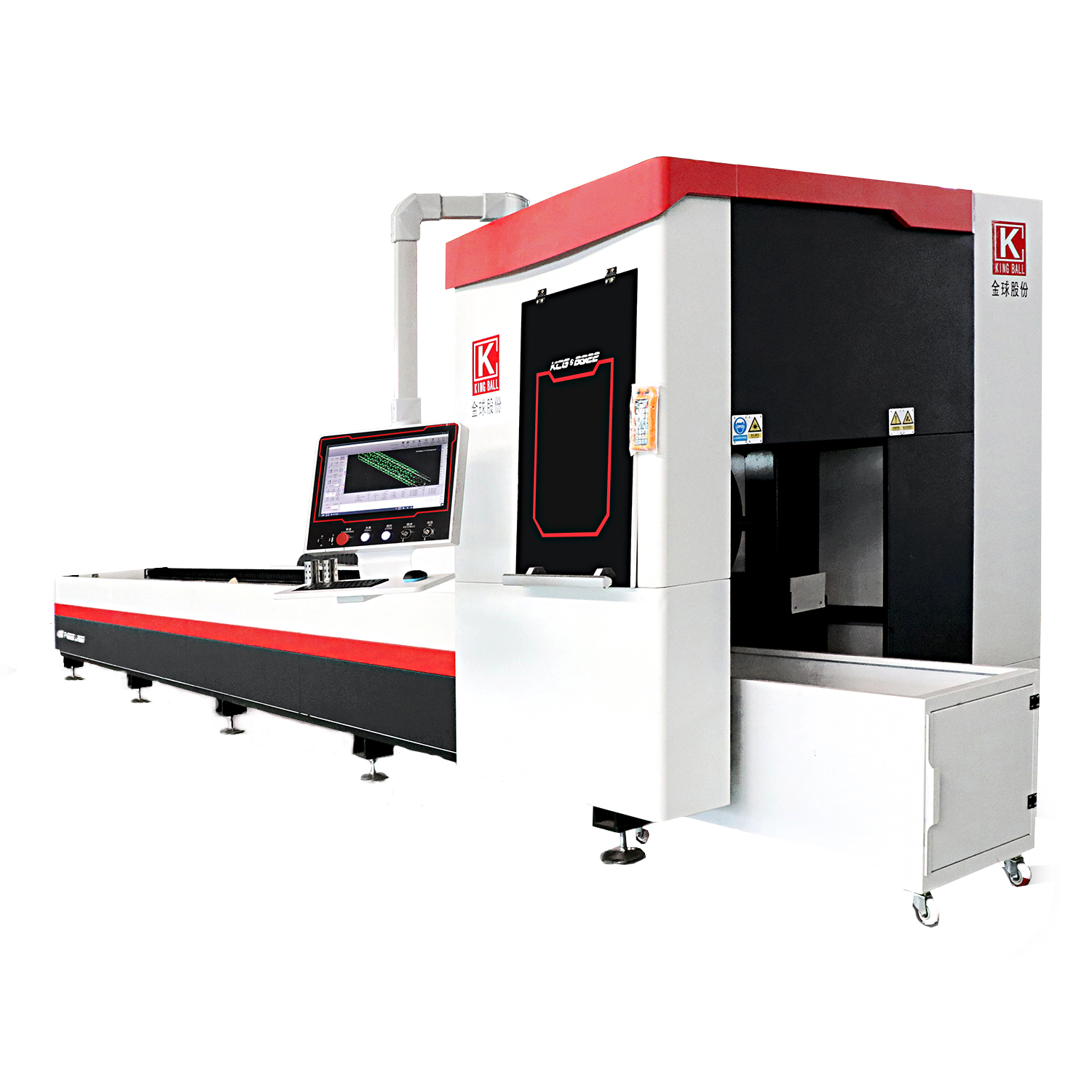

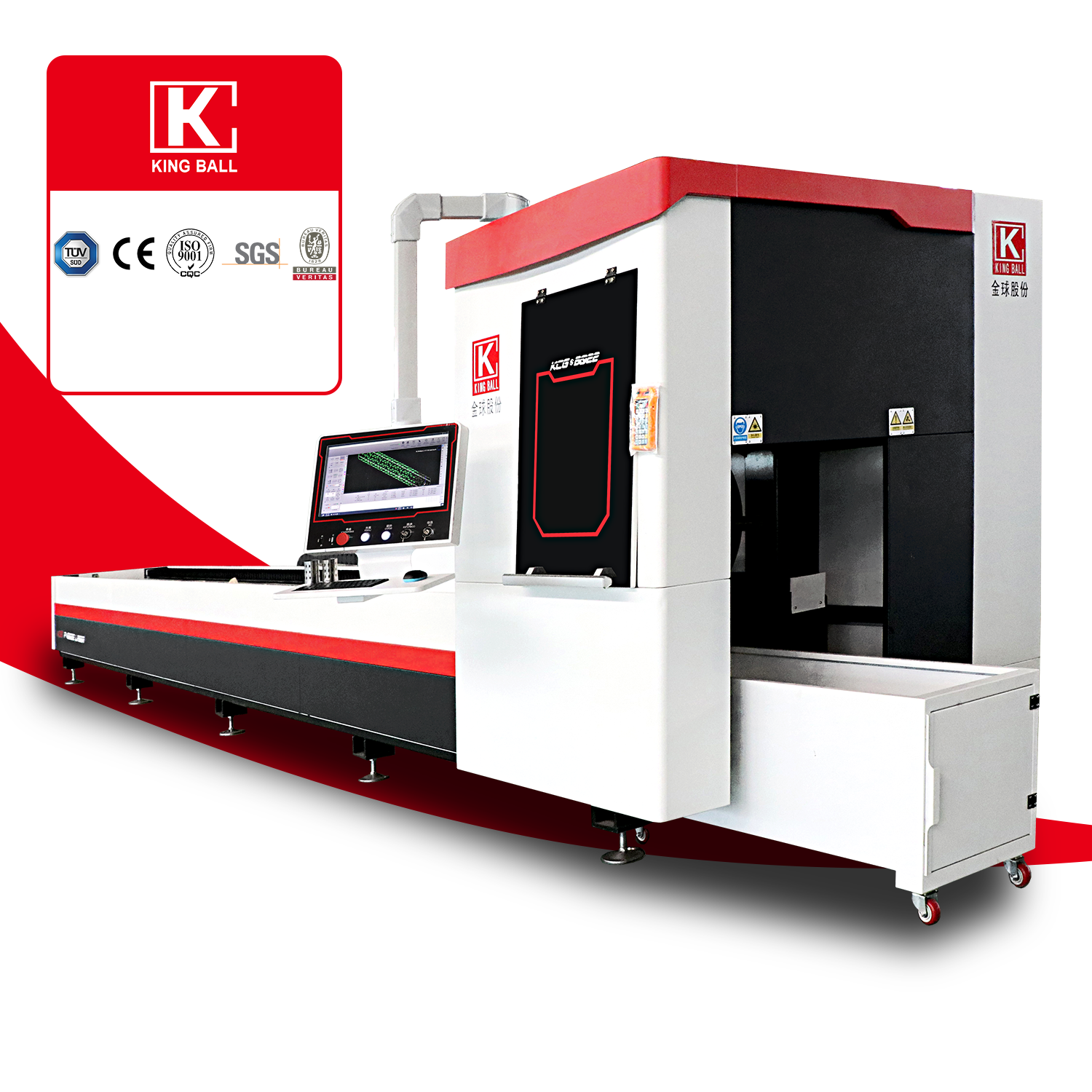

Fiber Laser Tube Cutting Machine
The special pipe laser cutting machine is composed of 7 axes.
lt can cut round pipe, square pipe, rectangular pipe, oval pipe and other pipes.
The whole machine is up to 1 1m long, which can realize the one-time forming and processing of 6m pipe.* The equipment is equipped with feeding shaft and puling shaft, which can greatly reduce the waste of processingtailings.
Be able to cut multiple pipes with different directions and diameters on the main pipe
Capable of cutting variable angle groove surface
Known as the expert of cutting pipe and material in the industry.
Configuration List
| Component | Configuration / Brand | ||
| Laser Source | 3000w Max, China | ||
| Industrial Water Chiller | Hanli, China | ||
| Fiber Laser Cutting Machine Body & Control Cabinet | Laser Cutting Head | Raytools, Switzerland(Pointed End Laser Head with Auto-focus Function and Height Adjust System) | |
| Control System | Cypcut, Shanghai | ||
| Machine Bed Structure | Thick Pipe Welding Bed (Heat Treatment Process & CNC Milling Process) | ||
| Position Type | Red Dot | ||
| Maximum Diameter for Cutting | 220mm | ||
| Maximum Pipe Length for Cutting | 6m | ||
| Front & Back Chucks | Both Automatic Pneumatic Chucks | ||
| Electrical Parts | Schneider, France | ||
| Pneumatical Parts | SMC, Japan | ||
| Guiding Rail | Hawk king, Taiwan | ||
| Rack | YYC, Taiwan | ||
| Servo Motor & Drive | Fuji, Japan | ||
| Reducer | France Motoreducer | ||
| Automatic Oiling | Automatic Lubrication System | ||
Detail Pictures
The Fiber Laser Tube Cutting Machine warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
Front
| Optional | Description |

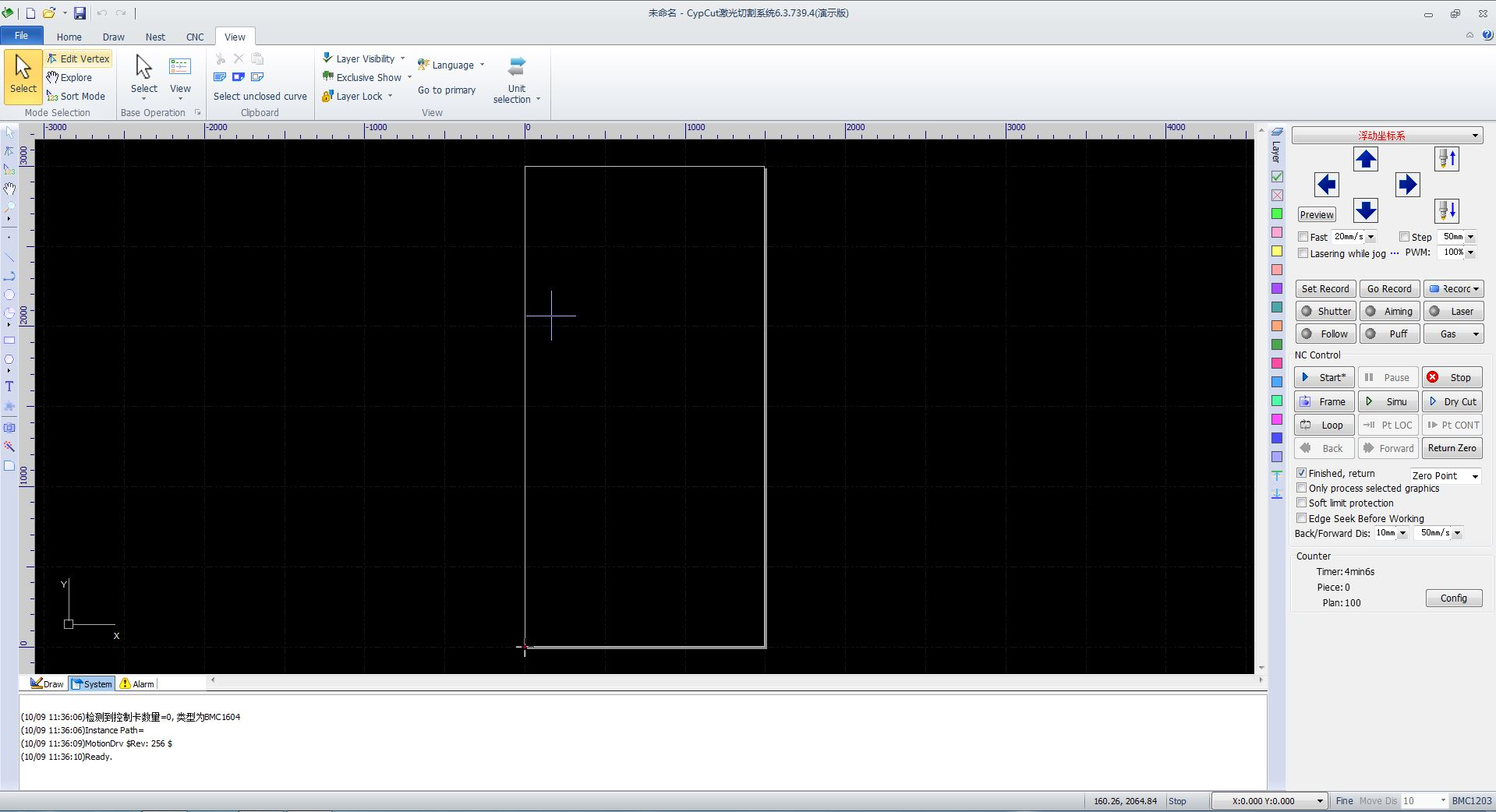

 | Control System Cypcut is exclusively designed for fiber laser cutting machines for metal tube and metal sheet. Create cutting programs and simple drawings fast and directly at the machine. |

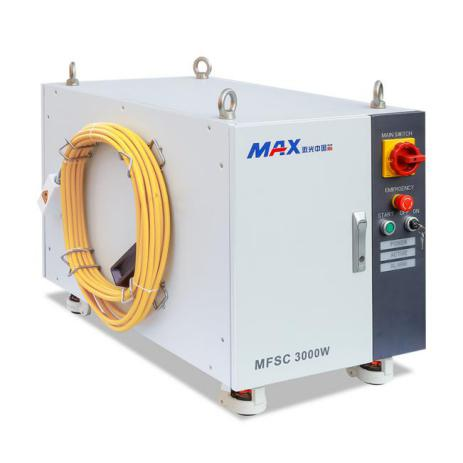

 | Laser Source Chinese enterprise engaged in the research, development and scale production of high-power fiber lasers and core devices. It has the largest fiber laser R&D and production base with global influence in China. Max laser source have very similar performance with IPG, including stability, quality, broken rate etc. But its price is much lower than IPG. |

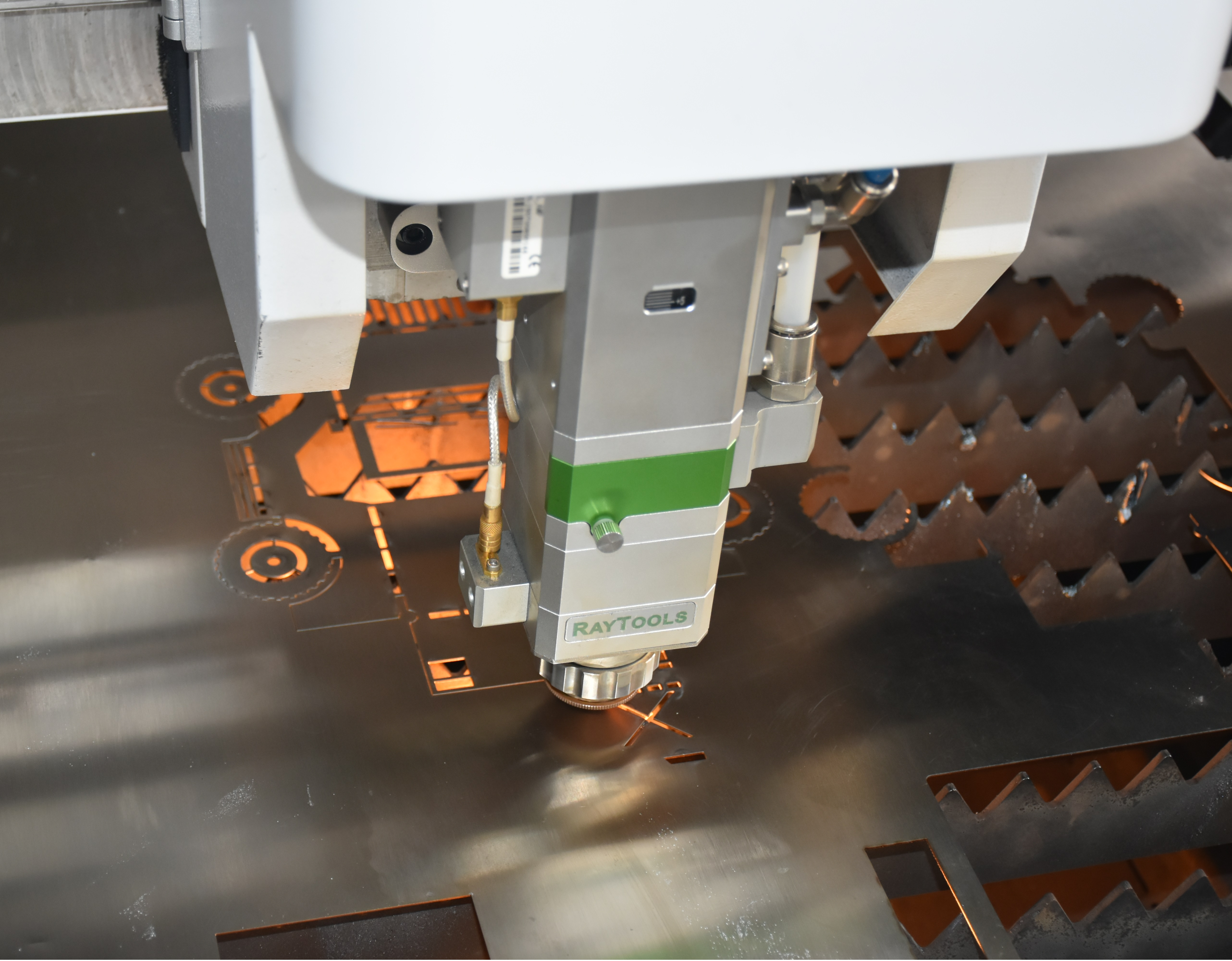

 | Laser Cutting Head Raytools is the famous brand recognized by more than 300 enterprises with stable operation in 20,000 fiber laser cutting machines. It cuts metal sheets with process reliablity and good quality. The focal position adjusts automatically for piercing and cutting to increase productivity and improve piercing quality |

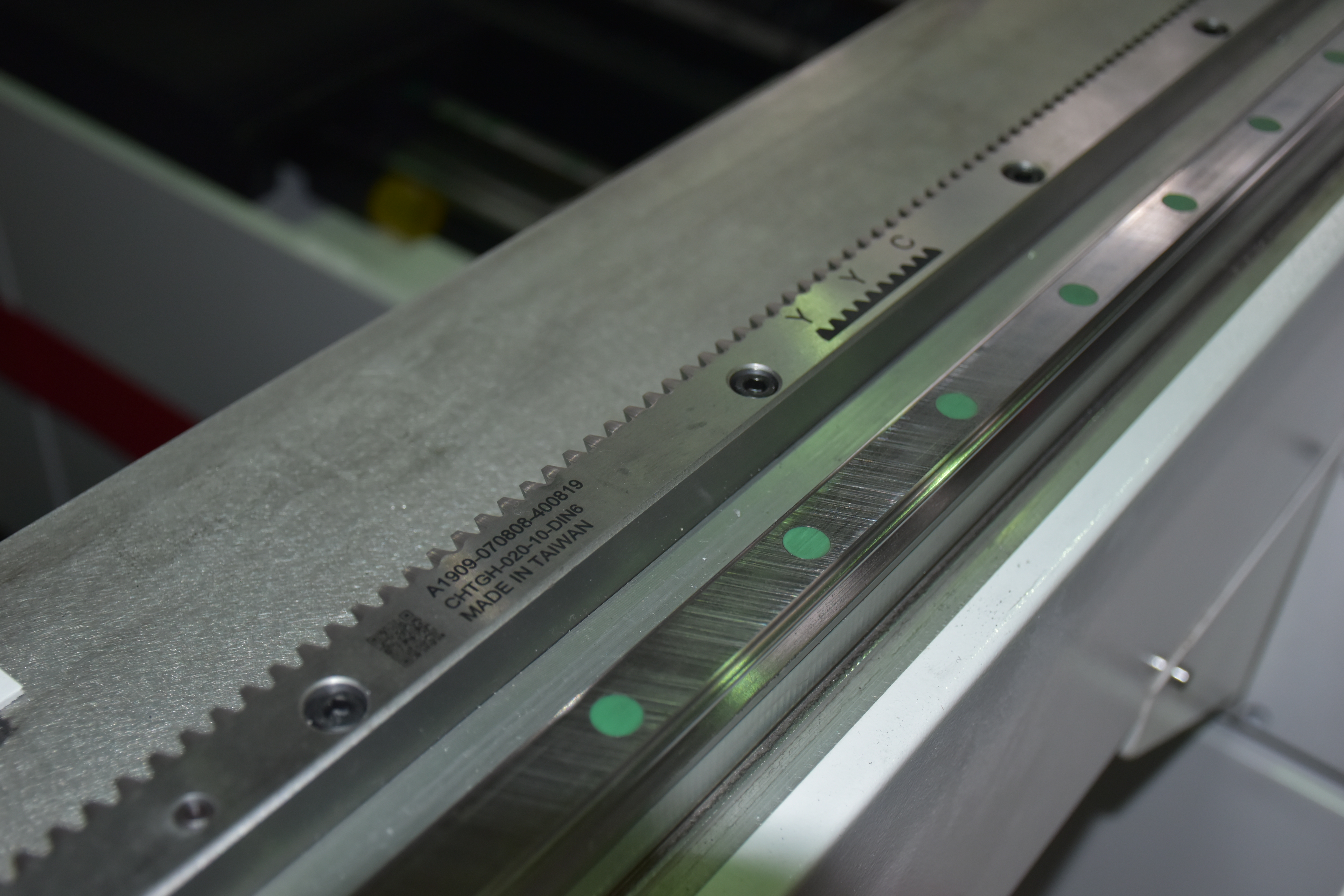

 | Taiwan Imported Guiding Rail & Rack With dust cover it can keep high guiding precision. |
 | Japan Fuji Servo Motor and Drive Famous Japan brand Fuji to ensure the machine fast and steady running. |
 | France Motoreducer Under each servo motor to keep steady running. |

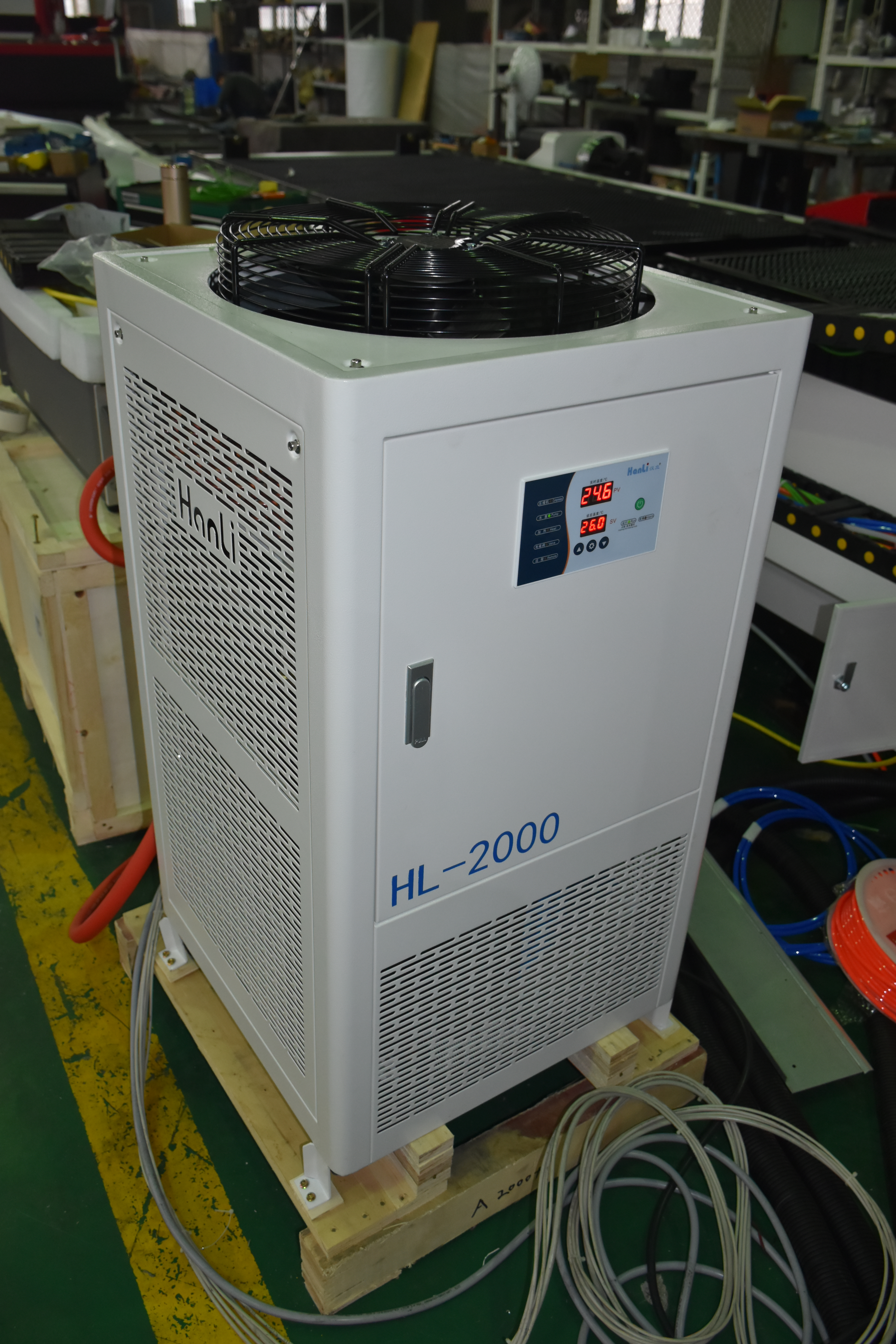

 | China Hanli Industrial Water Chiller Designed for industrial use. With dual-cooling function for laser source, laser head and other key components all get sufficient cooling to ensure smoothly and safe running of the machine. |

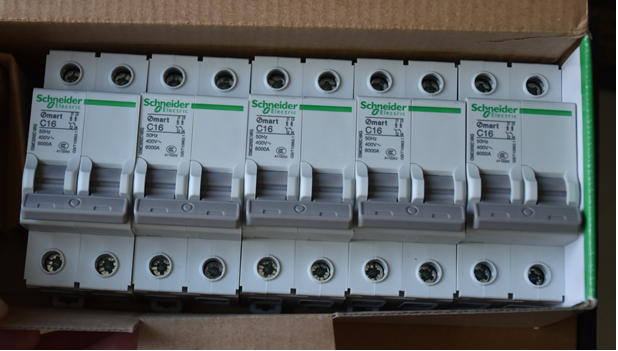

 | France Schneider Electronic Components Circuit protection against short-circuit / overload currents. |

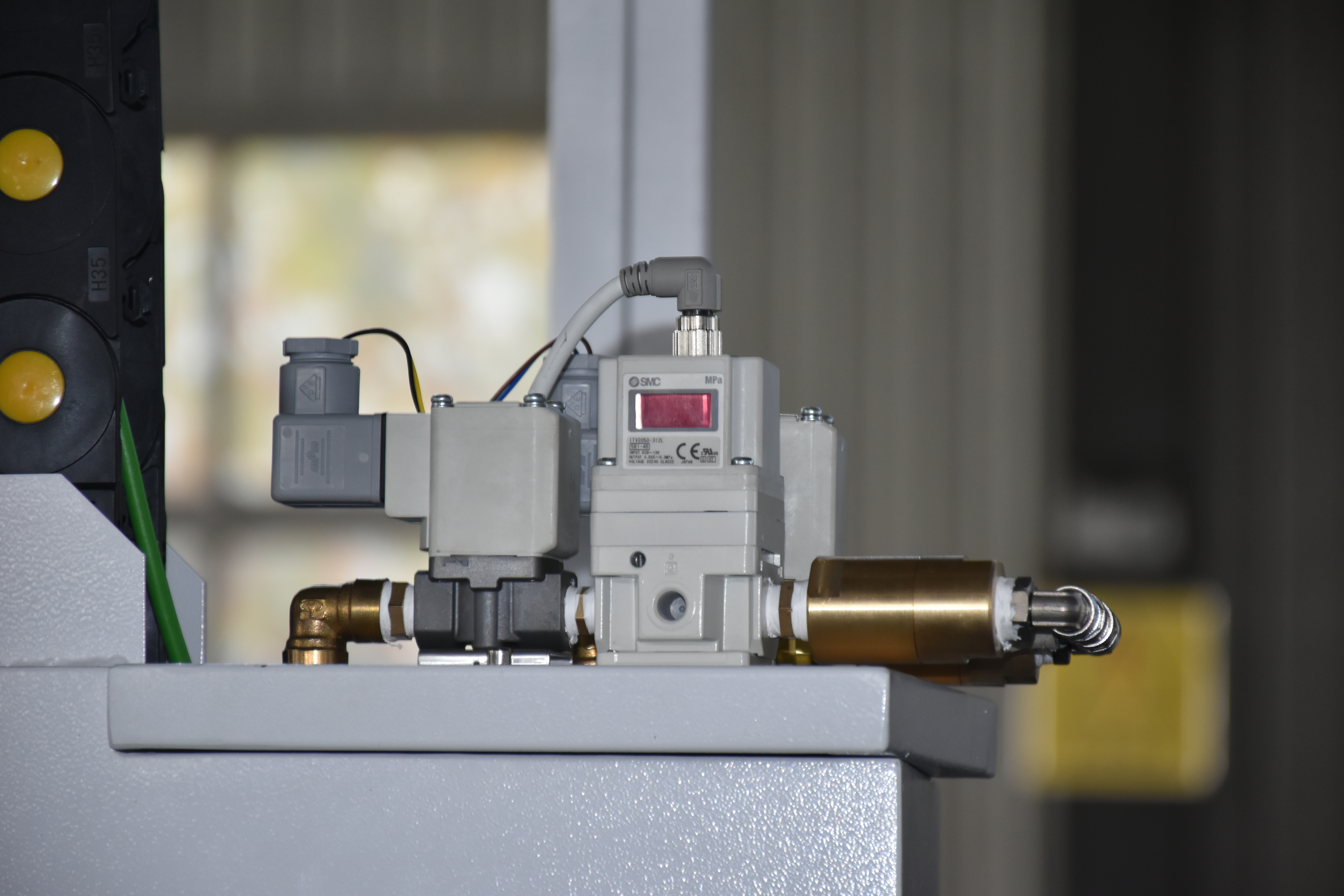

 | Japan SMC Proportional Valve To control Gas flow |

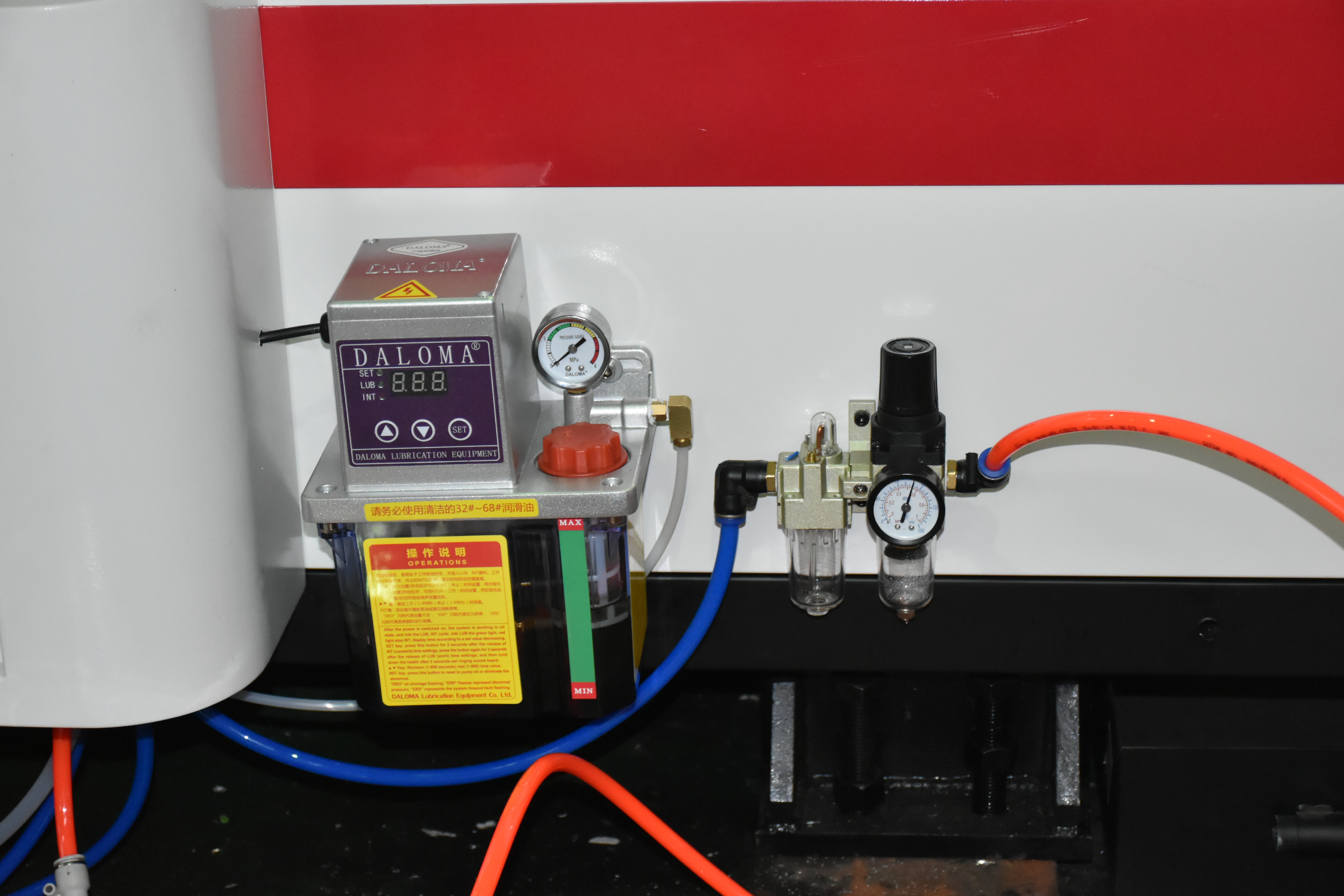

 | Auto Lubrication System Keep the guide rail and rack lubricating during machine running for X axis, Y axis and Z axis. Free of maintenance during high-speed cutting. |
