Gantry type CNC Grooving Machine
X axes: Control beam movement
Y1 axes: Control the blade holder forward and backward movement
Y2 axes: Control the mobile clamp forward and backward movement
Z axes: Control blade holder up and down movement
Performance Parameters
Example model：
| NO. | Item | Parameter | Unit | ||
| 1 | Cutting length | 4000 | mm | ||
| 2 | Cutting width | 1250 | mm | ||
| 3 | Sheet thickness | 0.4-6 | mm | ||
| 4 | Cutting speed | 5-70 | m/ min | ||
| 5 | X axes Min setting | 0.01 | mm | ||
| 6 | X axes accuracy | ±0.05 | mm | ||
| 7 | Y axes Min setting | 0.01 | mm | ||
| 8 | Y axes accuracy | ±0.05 | mm | ||
| 9 | Z axes Min setting | 0.01 | mm | ||
| 10 | Z axes accuracy | ±0.03 | mm | ||
| 11 | Y1,Y2 axes motor power | 1.0/1.0 | kW | ||
| 12 | X axes motor power | 5.5 | KW | ||
| 13 | Z axes motor power | 1.0 | KW | ||
| 14 | Worktable flatness | ±0.03 | mm | ||
| 15 | Oil pump motor | 1.5 | KW | ||
| 16 | Machine dimension | 6200x2150x1580 | mm | ||
| 17 | Machine weight | 8100 | kg | ||
Configuration List
| Name | Producer |
| CNC system | Esaycat China brand |
| servo driver | Easycat China brand |
| Servo motor | Easycat China brand |
| Star reducer | Easycat China brand |
| Pneumatic solenoid valve | AirTAC China Taiwan brand |
| Pneumatic two-piece | AirTAC China Taiwan brand |
| Single / bipolar air switch | Schneider France brand |
| AC contactor, thermal relay | Schneider France brand |
| Circuit breaker, button | Schneider France brand |
| Miniature relay | Schneider France brand |
| Machine tool flexible power cable | IGUS Germany brand |
| Proximity switch | OMRON Japan brand |
| Linear Guide | Hawk King China Taiwan brand |
| High-precision ball screw | Hawk King China Taiwan brand |
| Precision gear rack | YYC China Taiwan brand |
Main functions and features
This equipment is full CNC gantry grooving machine, it adopts advanced CNC system with novel design.It has the characteristics of high processing accuracy, simple operation, no noise and no vibration. This machine tool is used to process V-grooves, U-grooves and other irregular grooves on sheet metal parts, and is especially suitable for V-groove processing before sheet metal parts are bent,Including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates and other special plates.
Detail Pictures
The CNC Hydraulic Guillotine Shearing Machine warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
Front
Back
Structure Introduction
LM gantry series CNC metal grooving machine adopts frame structure, the whole machine has compact structure, reliable performance and convenient operation.And the processing control uses all hydraulic devices, customers will greatly reduce the use cost and maintenance cost. Its structure is mainly composed of four groups of servo motor drive system, hydraulic clamp system and main body steel frame.
Beam axes system
The beam axes system of this equipment is composed of main motor 5.5KW spindle servo motor, 1: 7 star reducer timing belt, synchronous wheel, high-precision rack and pinion, linear guide and other components.
Its function is that the servo motor drives the precision gear through the star reducer to drive the tool holder to move linearly on the linear guide to provide the cutting power.
Y1, Y2 axes system
The Y1, Y2 axes system of this equipment is composed of 1KW AC servo motor, timing belt, timing wheel, ball screw, mobile clamp and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with power to achieve accurate positioning of the V-groove.

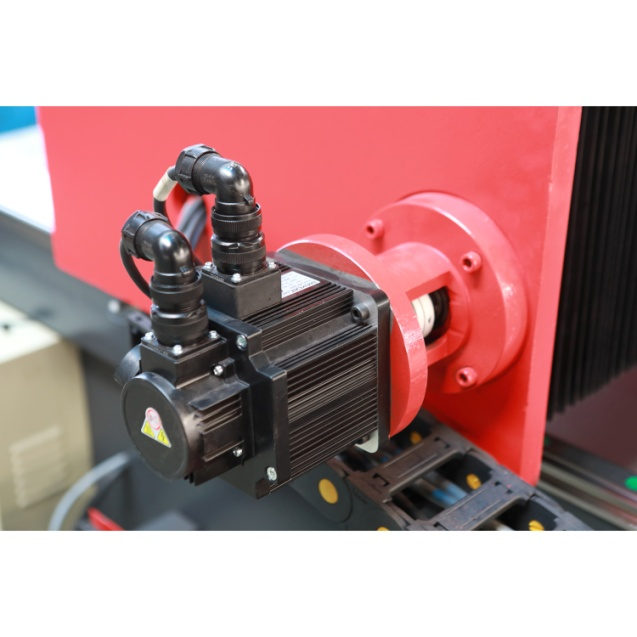

Z axes system
The Z-axes system of this equipment is composed of 1KW AC servo motor, precision coupling, ball screw, tool holder and other parts. Its function is that the motor drives the tool post for linear motion by driving the ball screw to provide precise positioning of the tool post mechanism.

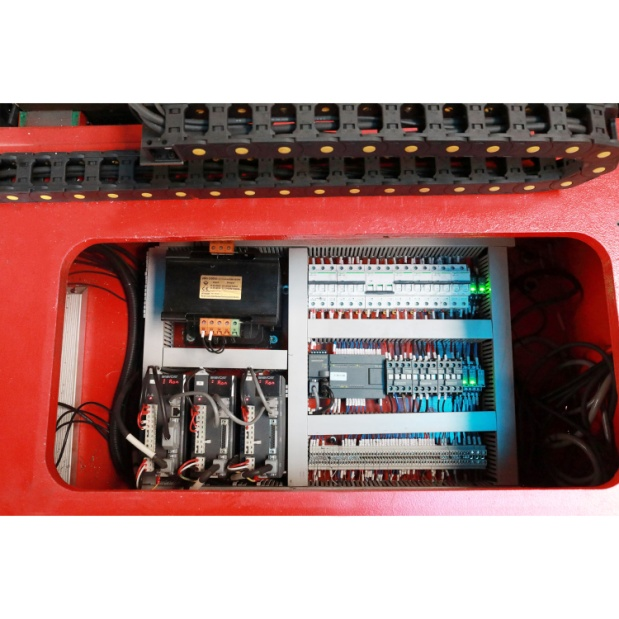

Electrical control system
The electrical control system of this equipment is composed of HUST special grooving machine system, driver, electric control element, electrical board and other accessories. The electrical board is installed on the inside of the machine for easy maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.
