Fiber Laser Metal Sheet And Tube Cutting Machine

库存： 0

Inquire

Add to Basket

Performance Parameters

NO.	model	Item	Parameter	Unit
1	KCL-T3015	Processing format	3000x1500/4000x2000/6000x2000	mm
2	KCL-T4020	Pipe cutting length	6000	mm
3	KCL-T4020		Chuck diameter	220/320	mm
4	KCL-T6020	Laser power	1000-20000	W
5	KCL-T6020		Max. positioning acceleration	10	m/s2
6	KCL-T6025	Positing accuracy	±0.02	mm/m
7	KCL-T6025		Reposition accuracy	±0.03	mm

Configuration List

Name	Fiber Laser Metal Sheet And Tube Cutting Machine
Control System	Cypcut，raytools
Laser Source	Max
Laser Head	Raytools Automatic Focus Laser Head
Plate Bed	Steel Sheet and Pipe Welding
Chuck	Front and Rear are pneumatic chuck
Cutting Platform	single working table
Water Chiller	Hanli
Servo Motor	Inovance
Rails and racks	Taiwan Hawk King rails and YYC racks
Transmission section	Gear double drive
Reducer	France Motoreducer
Electrical Parts	Schneider
Pneumatic Components	SMC Valves
Gross Weight	4500kg
Red Light Positioning	Yes
Automatic filling	Yes
Function	Equipment can cut aluminum and copper Error in cutting standard profiles≤±0.03mm
Random accessories list	Protection lens 5pcs、Cutting copper nozzle 5pcs
Power	380V, 50Hz, 3 Phase

Detail Pictures

The fiber laser cutting machine warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.

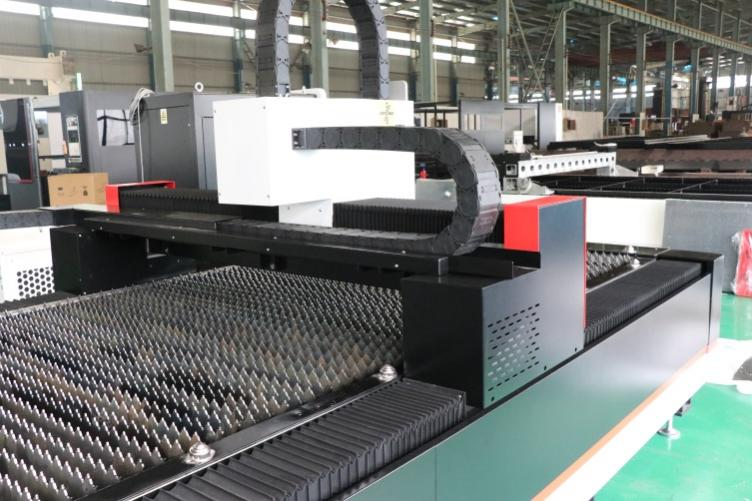

Front

Back

Name	Description
	Steel Sheet and Pipe Welding

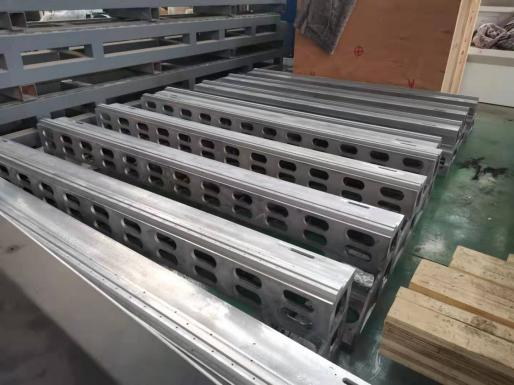

	Cast aluminum

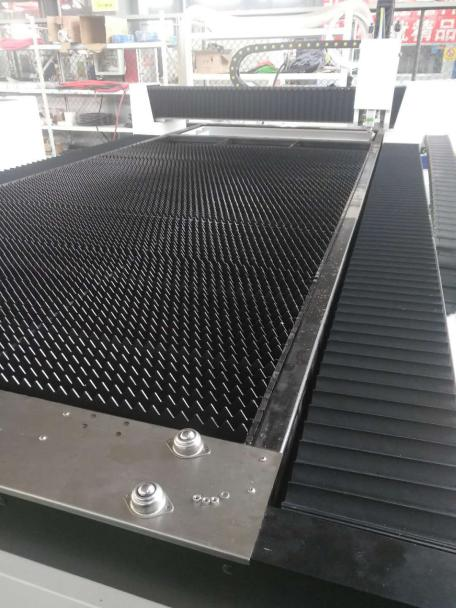

	Thick Blade Working Table with Loading Rolls

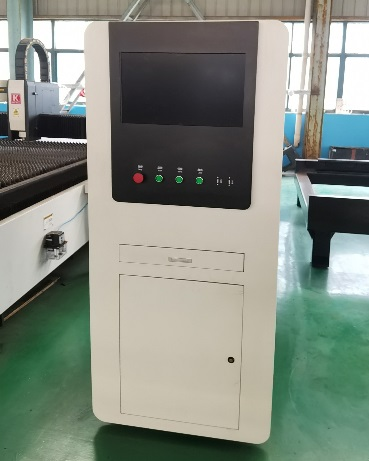

	Cypcut Control Can realize wireless handle control, Beside the machine bed, easy to operate and watch the machine working

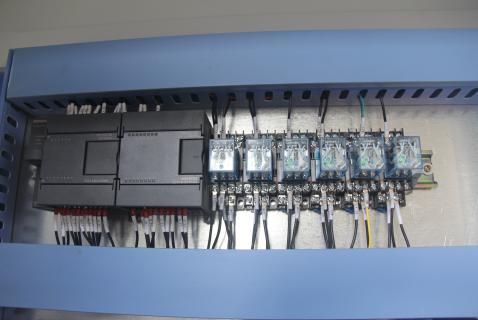

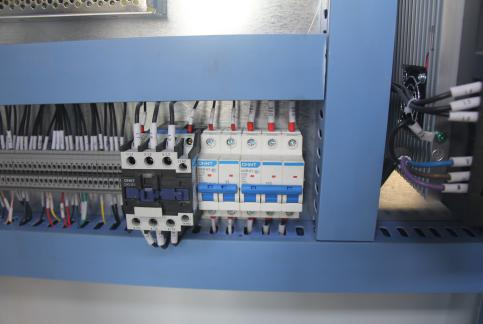

	Clear wiring, clear primary and secondary, easy to check and replace parts

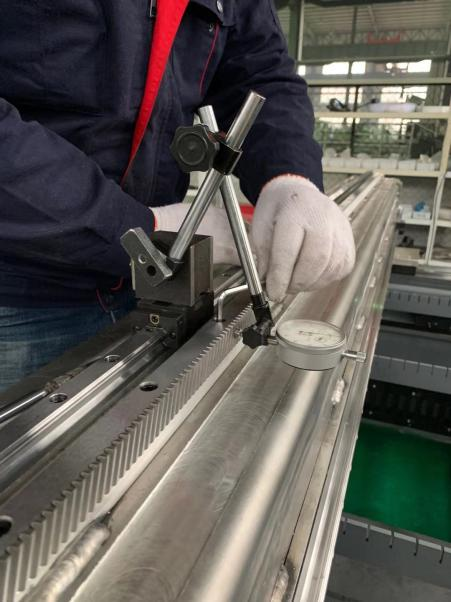

	Calibration of mechanical accuracy

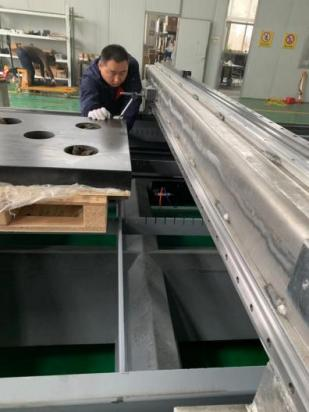

	Calibration of mechanical accuracy

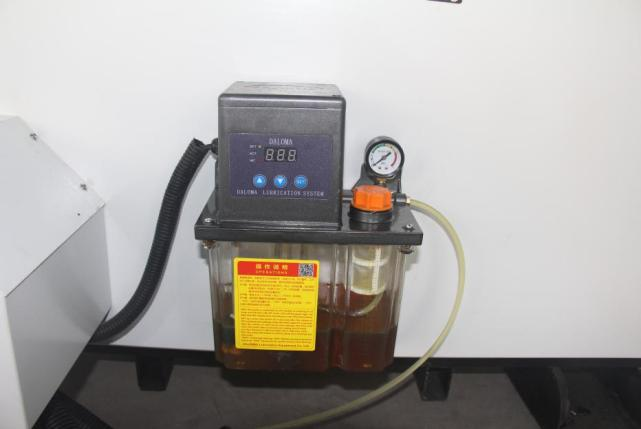

	Automatic Lubrication System
	5 Pcs Protection Lens, 5 pcs Nozzels, 1pc Ceramic Ring
