Full Cover Fiber Laser Metal Sheet And Tube Cutting Machine With Exchange Table
Full cover design, ÃU CE standard protective glass, leading the world
Automatic exchange of working platforms within 1 5 seconds,effectively improving cutting efficiency
Equipped with pipe cutting device, one machine for two purposes
Electric clamping chuck, suitable for pipes of different specifications and sizes
Good transmission efficiency and high cutting precision
库存： 0
Inquire
Add to Basket
Specifications
| NO. | Name | Fiber Laser Metal Sheet And Tube Cutting Machine |
| 1 | Control System | Cypcut |
| 2 | Laser Source | MAX 3000W |
| 3 | Laser Head | Raytools laser Head with autofocus BM110 |
| 4 | Plate Bed | Steel Sheet and Pipe Welding |
| 5 | Cutting Platform | With exchange table |
| 6 | Water Chiller | Hanli |
| 7 | Servo Motor | FUJI |
| 8 | Rails and racks | Hawk KingRails and YYC Racks |
| 9 | Transmission section | Gear double drive |
| 10 | Reducer | France Motoreducer |
| 11 | Electrical Parts | France Schneider |
| 12 | Pneumatic Components | SMC Valve |
| 13 | Ventilation device | KINGBALL |
| 14 | Gross Weight | About 6.8T |
| 15 | Red Light Positioning | Yes |
| 16 | Automatic filling | Yes |
| 17 | Protective Cover | Yes |
| 18 | Function | Equipment can cut aluminum and copperError in cutting standard profiles≤±0.03mm |
| 19 | Random accessories list | Protection lens 5pcs、Cutting copper nozzle 5pcs |
| 20 | Cutting area | 3000x1500mm |
| 21 | Power | 380V,50Hz,3Phase |
Detail Pictures
The Full Cover Fiber Laser Metal Sheet And Tube Cutting Machine With Exchange Table warranty period is 2 years, will run since bill of lading date, if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free.
| Optional | Name |

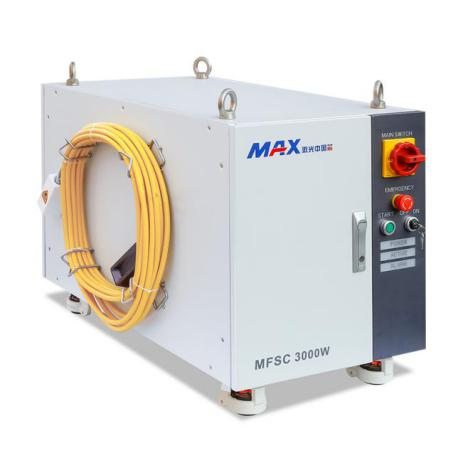

 | 3000w MAX Laser Source |

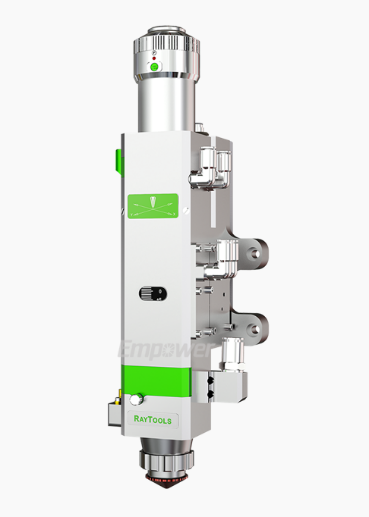

 | Raytools laser head with Autofocus BM110 |

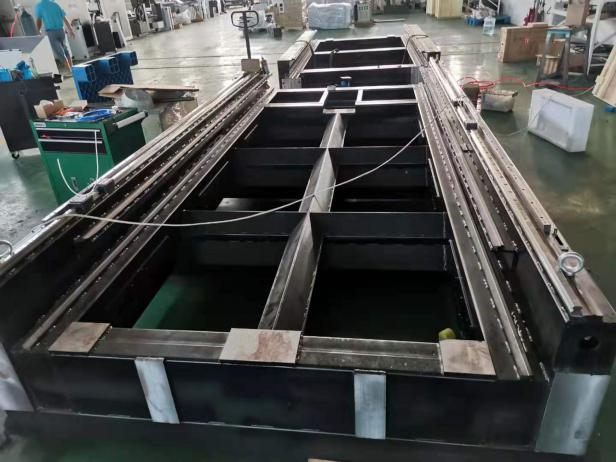

 | Steel Pipe Welding |

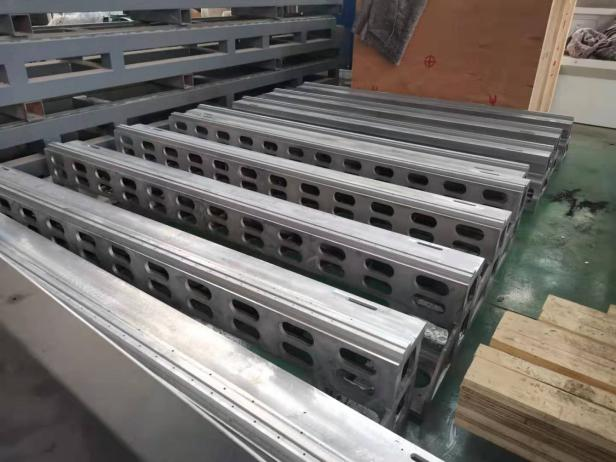

 | Cast aluminum |
 | Thick Blade Working Table |

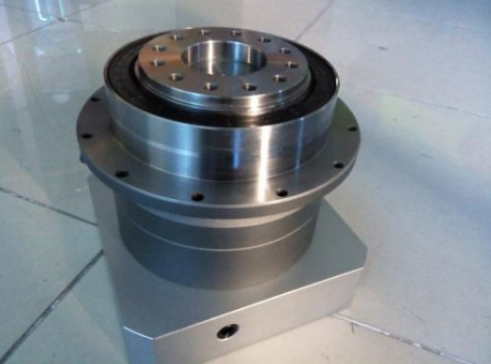

 | Motoreducer |

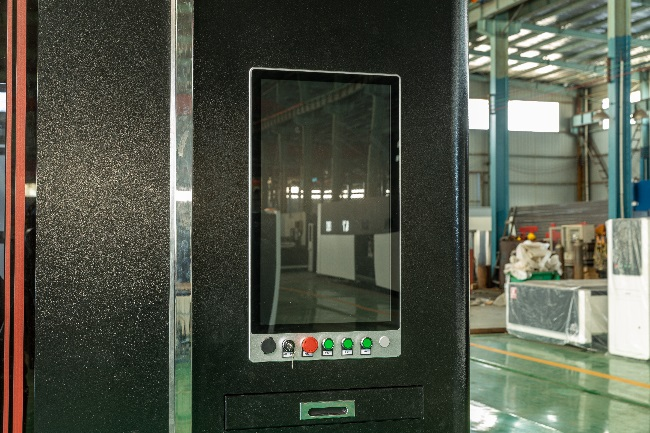

 | Touch Screen Can realize wireless handle control, easy and intuitive operation |

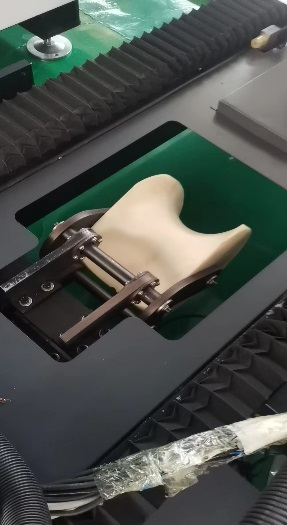

 | Pneumatic Support for Long Pipe |

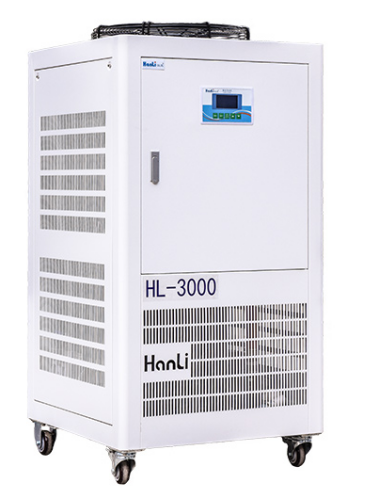

 | HL-3000 Hanli Water Chiller |

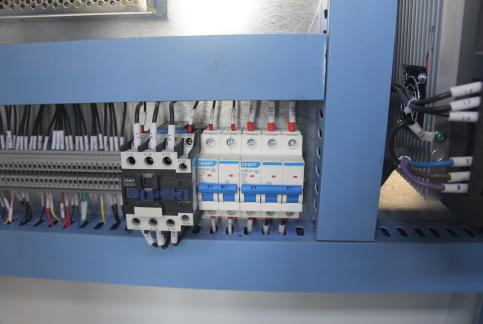

 | Clear wiring, clear primary and secondary, easy to check and replace parts |

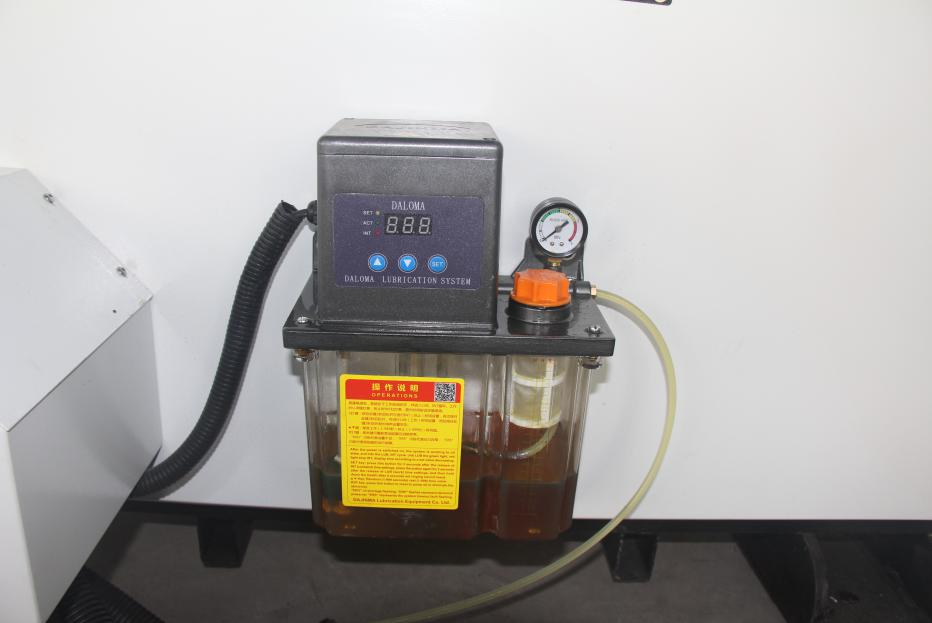

 | Automatic Lubrication System |

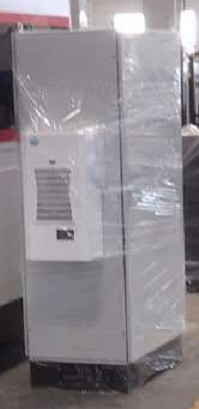

 | Single control cabinet with air conditioner |
 | 4pcs cameras |

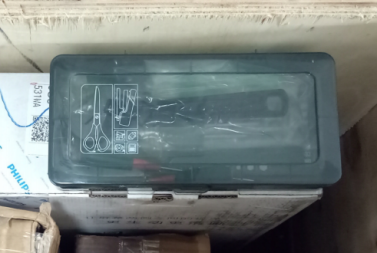

 | Tool Box |

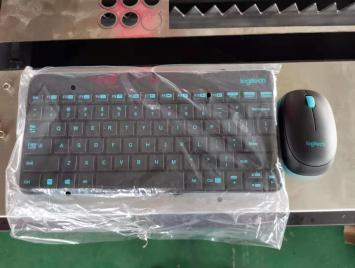

 | The Keyboard and the Mouse |

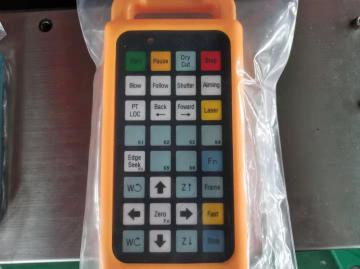

 | Wireless Handle Control |
