Bending accuracy drives the heartbeat of heavy fabrication and high-volume sheet metal shops today. Even minor angular deviations can quickly sabotage downstream welding efficiency and inflate daily scrap rates. Precision is no longer a luxury but an absolute baseline for modern manufacturing success. Traditional torsion bar press brakes consistently struggle under this intense production pressure. Mechanical limitations cause them to lose consistent angles across long workpieces or varying material thicknesses. As internal components wear down over time, operators face constant trial-and-error setups just to maintain basic part tolerances. Upgrading to an Electrohydraulic Synchronous CNC Press Brake rapidly eliminates these frustrating mechanical discrepancies. This advanced machinery utilizes real-time, closed-loop feedback systems to perfectly control ram positioning throughout the bend cycle. Read on to discover how this automated technology significantly reduces manual rework. You will learn to leverage these modern systems to unlock high-tolerance, highly automated production across your entire shop floor.
Closed-Loop Synchronization: Dual linear encoders and proportional valves adjust the Y1 and Y2 cylinders independently in milliseconds, preventing ram tilt.
Automated Deflection Compensation: CNC-integrated crowning systems counteract natural machine bed deflection, ensuring consistent angles across the entire bend length.
Material Variability Management: Advanced CNC controllers adjust for material thickness and springback variations, reducing trial-and-error setups.
ROI Factor: The shift from mechanical to electrohydraulic synchronization requires higher initial capital and stricter maintenance but pays off through minimized scrap and faster cycle times.
Minor bending errors quickly compound into massive headaches for downstream assembly teams. A deviation of just one or two degrees on a long flange might seem negligible at the press brake. However, when that part reaches the welding station, a one-degree error translates into a significant physical gap. Welders must then spend expensive labor hours clamping, grinding, and manually filling these gaps. This rework directly destroys project margins and slows down your entire production schedule. You cannot achieve lean manufacturing when your primary forming equipment generates inconsistent parts.
Traditional press brakes rely on a mechanical torsion bar mechanism to synchronize their hydraulic cylinders. A massive steel shaft physically connects the left and right sides of the ram. This shaft forces both cylinders to move at the same speed. Unfortunately, this design fails under real-world conditions. When operators bend small parts off-center, asymmetrical loads twist the torsion bar. Over months of heavy use, the mechanical linkages stretch and wear down. The ram inevitably tilts, and your bending angles become completely unpredictable.
Modern fabrication demands a paradigm shift. Shops must transition away from mechanical linkages. Winning high-tolerance OEM contracts requires guaranteed repeatability. Furthermore, integrating robotic bending cells demands parts that fit perfectly every single time. Robots cannot manually adjust for a badly bent flange. Upgrading to an Electrohydraulic Synchronous CNC Press Brake becomes a strict operational necessity. This transition replaces failing physical connections with hyper-accurate digital control systems.
Comparison Factor | Torsion Bar Mechanism | Electrohydraulic System |
|---|---|---|
Synchronization Method | Physical steel torsion shaft | Digital closed-loop feedback |
Off-Center Bending | Prone to twisting and severe ram tilt | Highly stable; axes adjust independently |
Long-Term Wear | Mechanical linkages degrade over time | Valves and encoders maintain strict precision |
Automation Readiness | Poor; requires manual adjustments | Excellent; easily integrates into robotic cells |

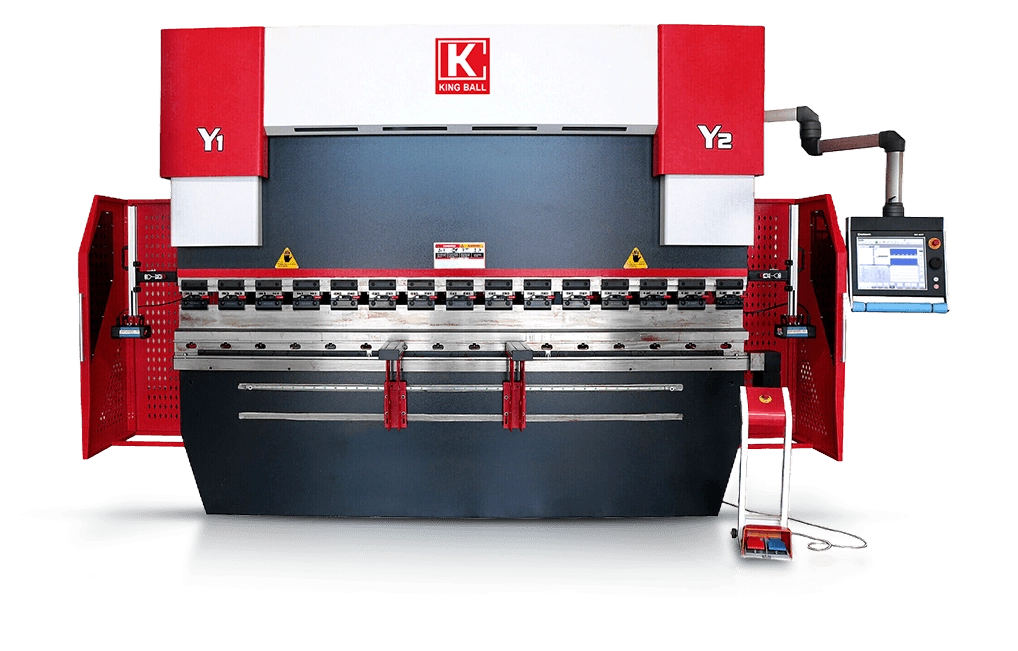

To understand true precision, we must look at how the machine controls its hydraulic power. The most critical innovation involves independent axis control. An Electrohydraulic Synchronous CNC Press Brake separates the left and right hydraulic cylinders entirely. We refer to these as the Y1 and Y2 axes. They do not rely on a shared physical shaft. Instead, the CNC controller commands each cylinder individually. This separation allows the machine to instantly correct any imbalance during the bending cycle.
The machine achieves this correction through high-resolution linear glass encoders, commonly called scales. Engineers mount these scales on independent "C" frames attached to the side of the machine. Crucially, these C-frames remain completely isolated from the main machine bed. When the massive side frames flex under thousands of tons of pressure, the isolated C-frames stay perfectly still. The glass scales read the exact vertical position of the Y1 and Y2 axes without any distortion from machine deflection.
Once the scales read the position, they send data back to the CNC controller in milliseconds. The controller instantly processes this information. It then commands advanced proportional servo valves to adjust the hydraulic fluid flow to each cylinder. If the left side begins to lag by even a fraction of a millimeter, the proportional valve increases fluid flow to compensate. This closed-loop communication ensures the ram stays perfectly parallel to the bed. It operates within strict micrometer tolerances across the entire stroke.
You must keep one critical reality in mind. While an Electrohydraulic Synchronous CNC Press Brake guarantees perfect positional repeatability, actual bending accuracy requires more. The machine places the ram in the exact same spot every time. However, final bend angles still depend heavily on your material properties. Variations in sheet thickness, grain direction, and tooling quality will alter your final angle. Closed-loop systems control the machine perfectly, but operators must still manage material variability.
We must acknowledge the fundamental physics of sheet metal bending. All press brakes deflect under high tonnage. No matter how thick the steel frame is, the sheer force of forming metal causes distortion. The side frames naturally stretch upward. The center of the machine bed naturally bows downward. In the industry, we call this the "canoe effect." If you bend a long piece of metal without correcting this deflection, you get an uneven angle. The ends of your workpiece will over-bend, and the middle will severely under-bend.
An Electrohydraulic Synchronous CNC Press Brake solves this physics problem through integrated automated crowning. The CNC controller acts as the brain of the operation. Before the ram even moves, the controller calculates the exact amount of deflection expected. It uses several key variables to compute this curve:
Material Type: Stainless steel requires more force and causes more deflection than mild steel.
Workpiece Length: Longer bends distribute tonnage differently across the machine bed.
Material Thickness: Thicker plates demand exponentially higher tonnage.
V-Die Opening: Smaller die openings increase the necessary bending force.
Based on these calculations, the controller commands a crowning system hidden inside the lower bed. This system pushes the center of the bed upward to perfectly match the bow of the upper ram. Manufacturers typically use two main types of crowning. CNC-controlled hydraulic bed crowning utilizes a series of small hydraulic cylinders spaced along the bed. They push up independently to form a precise curve. Alternatively, motorized mechanical wedge crowning uses a series of precision-machined opposing wedges. A servo motor drives these wedges horizontally to force the bed upward. Both methods synchronize seamlessly with the main electrohydraulic program. They ensure linear precision and perfectly consistent angles from end to end.
Purchasing an advanced forming system represents a major capital investment. You must evaluate these machines beyond their basic tonnage and bending length specifications. Focus heavily on the core components driving the closed-loop system. Use the following framework to assess any potential machine addition for your shop.
Controller Capabilities: The software interface determines your daily setup speed. You need a controller offering 2D and 3D offline programming. It should allow your engineering team to simulate bends in the office. Look for built-in springback databases and automatic collision detection. These features save hours of wasted setup time on the floor.
Hydraulic System Components: The reliability of your closed-loop system depends entirely on the hydraulic block. You must demand verifiable, industry-standard components. Brands like Rexroth or Hoerbiger set the global standard. They provide exceptional thermal stability. Their proportional valves deliver reliable response times even during continuous three-shift operations. Cheap hydraulic blocks suffer from heat expansion, which destroys ram accuracy.
Frame Rigidity and Machining: Software cannot fix a badly built frame. Evaluate the structural integrity of the machine housing. The manufacturer must stress-relieve the welded frame before final machining. An advanced electrohydraulic system simply cannot compensate for a poorly machined or thermally warped frame. The physical geometry must start perfectly true.
Scalability: Think about your production needs five years from now. Consider whether the system architecture supports future retrofitting. You may want to add automated sheet followers to handle heavy plates. You might need to integrate robotic arms or automated tool changers. Ensure the CNC interface features open communication protocols to support these future upgrades.
Component Focus | What to Look For | Why It Matters |
|---|---|---|
CNC Controller | 3D Simulation, collision detection | Reduces scrap and off-line programming time. |
Hydraulic Valves | Rexroth/Hoerbiger proportional valves | Ensures thermal stability and rapid reaction times. |
Machine Frame | Stress-relieved, single-setup machining | Prevents mechanical warping from ruining digital accuracy. |
Automation Ports | Standardized I/O and robot interfaces | Allows future expansion without buying a new machine. |
Upgrading your forming department introduces new operational responsibilities. An Electrohydraulic Synchronous CNC Press Brake operates like a precision instrument. You cannot treat it like an old mechanical stomper. Maintenance realities require strict attention. Electrohydraulic systems remain highly sensitive to oil contamination and drastic temperature fluctuations. Microscopic dirt particles will jam the sensitive proportional servo valves. You must treat clean hydraulic fluid and regular filter changes as non-negotiable rules. Failure to maintain fluid cleanliness results in erratic ram movements and sudden accuracy loss.
You also face a significant tooling variable. Precision machinery demands precision accessories. Investing in a highly accurate machine requires a matching investment in precision-ground tooling. Many shops try to save money by reusing their old, standard-planed dies. Worn tooling completely negates the machine's accuracy. If your punch has worn unevenly, the closed-loop system will still push it perfectly straight. The resulting bend will still be wrong. You must pair high-tech machines with high-quality, perfectly ground punches and dies.
Finally, you must actively manage operator adoption. Transitioning from manual setups to digital workflows challenges experienced operators. Veteran fabricators often rely on "feeling" the bend. They use shims and manual pressure tweaks to force a good part. Electrohydraulic systems require them to trust the offline programming. Operators must shift their mindset. They need to rely on controller parameters rather than manual overrides. Providing comprehensive training ensures they leverage the technology rather than fight against it. When operators embrace the digital workflow, your entire production speed multiplies.
An Electrohydraulic Synchronous CNC Press Brake is far more than a hardware upgrade; it represents a fundamental shift toward data-driven, closed-loop fabrication.
When shortlisting equipment, buyers must prioritize structural machine rigidity, trusted hydraulic brands, and robust post-sale technical support over raw tonnage or a low base price.
To verify accuracy claims before purchase, buyers should mandate a live bend-test or a detailed time-study using their shop's own difficult material samples.
Upgrading your tooling library to precision-ground punches and dies remains a critical step to extract the full value from your new electrohydraulic investment.
A: An NC (Numerical Control) machine typically handles only simple positional tasks, often relying on mechanical torsion bars to keep the ram level. It lacks real-time feedback. A full CNC electrohydraulic press brake utilizes a closed-loop system. It independently controls the left and right hydraulic cylinders using proportional valves and linear encoders, ensuring micrometric precision and active correction during the bend.
A: These machines deliver exceptional positional precision, offering ram repeatability benchmarks commonly around ±0.01 mm. The hydraulic system places the ram in the exact same location every cycle. However, final bend angle accuracy still remains subject to external variables, especially material thickness variations and natural springback properties inherent to the specific metal you are forming.
A: No machine can physically prevent material springback, as it is a natural metallurgical property. However, advanced CNC controllers paired with electrohydraulics can effectively manage it. The software references extensive material databases to calculate the expected springback. It then automatically commands the ram to over-bend the material by the precise amount needed to compensate dynamically.
A: Closed-loop systems operate largely as self-monitoring entities, constantly checking their own positional data. However, you should schedule standard preventive maintenance every six to twelve months. During these visits, technicians should perform physical geometry checks on the machine frame, ensure the glass scales remain clean, and verify that the proportional valves respond accurately to controller signals.
