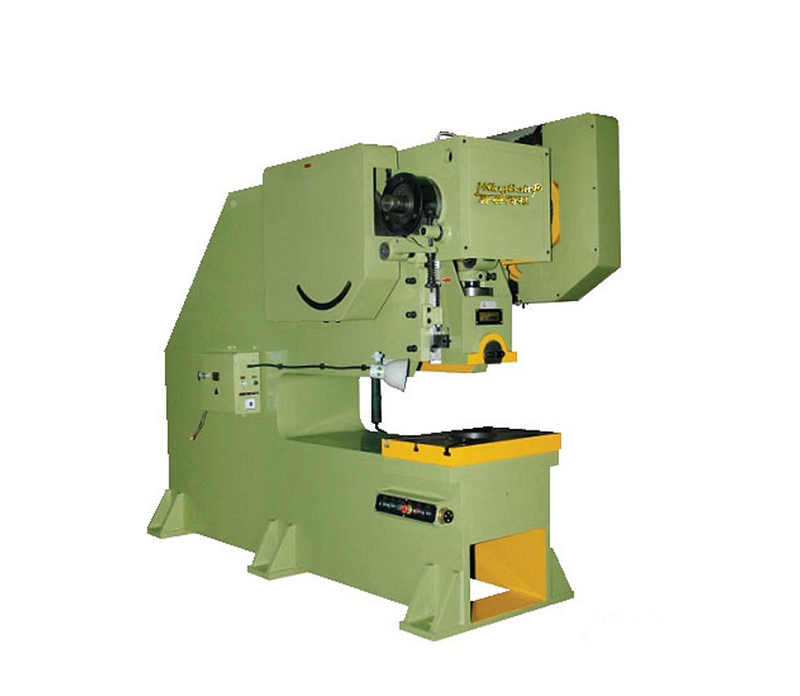

| J21S-6.3 | J21S-10 | J21S-16 | J21S-25A | J21S-40A | |
| Capacity | kN | 63 | 100 | 160 | 250 | 400 |
| Nominal Force | mm | 2 | 2 | 2 | 2.5 | 4 |
| Slide Stroke | mm | 35 | 60 | 70 | 80 | 120 |
| SPM | min-1 | 170 | 145 | 125 | 60 | 55 |
| Max. Die Height | mm | 110 | 130 | 170 | 180 | 220 |
| Die Height Adjustment | mm | 30 | 35 | 45 | 70 | 80 |
| Between Slide Center & Frame | mm | 700 | 700 | 700 | 700 | 700 |
| Bolster (FB×LR) | mm | 200×310 | 240×360 | 320×480 | 400×600 | 480×700 |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ60 | Φ120×20×Φ100 | Φ100 | Φ120 | Φ220×25×Φ180 |
| Bolster Thickness | mm | 40 | 50 | 60 | 70 | 80 |
| Bolster Opening (Dia.×FB×LR) | mm | Φ140×110×160 | Φ130×90×180 | Φ210×160×240 | 200×200 | 200×240 |
| Slide Area (FB×LR) | mm | 120×140 | 150×170 | 180×200 | 210×250 | 270×320 |
| Shank Hole (Dia.×Dpth) | mm | Φ30×55 | Φ30×55 | Φ40×60 | Φ40×70 | Φ50×70 |
| Between Columns | mm | 162 | 182 | 220 | 350 | 390 |
| Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 |
| Outline Size (FB×LR×H) | mm | 1540×700×1525 | 1620×730×1800 | 1680×840×1880 | 1790×990×2288 | 1965×1180×2295 |
|
| J21S-63A | J21S-80A | JD21S-100A | JD21S-125A | |
| Capacity | kN | 630 | 800 | 1000 | 1250 |
| Nominal Force | mm | 4 | 5 | 6 | 6 |
| Slide Stroke | mm | 120 | 130 | 140 | 140 |
| SPM | min-1 | 50 | 45 | 38 | 38 |
| Max. Die Height | mm | 270 | 290 | 320 | 320 |
| Die Height Adjustment | mm | 80 | 100 | 100 | 100 |
| Between Slide Center & Frame | mm | 450/800 | 450/800 | 450/760 | 450/760 |
| Bolster (FB×LR) | mm | 480×710 | 580×860 | 710×1100 | 720×1200 |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ200×45×Φ180 | Φ200×45×Φ180 | Φ260×50×Φ220 | Φ260×50×Φ220 |
| Bolster Thickness | mm | 90 | 100 | 120 | 120 |
| Bolster Opening (Dia.×FB×LR) | mm | 200×250 | 220×260 | 260×290 | 260×290 |
| Slide Area (FB×LR) | mm | 280×320 | 280×380 | 420×560 | 420×560 |
| Shank Hole (Dia.×Dpth) | mm | Φ50×80 | Φ60×75 | Φ60×80 | Φ60×80 |
| Between Columns | mm | 450 | 450 | 580 | 580 |
| Motor Power | kW | 5.5 | 7.5 | 7.5 | 11 |
| Outline Size (FB×LR×H) | mm | 2220×1350×2600 | 2220×1380×2650 | 2530×1555×2990 | 2550×1610×2990 |
|
