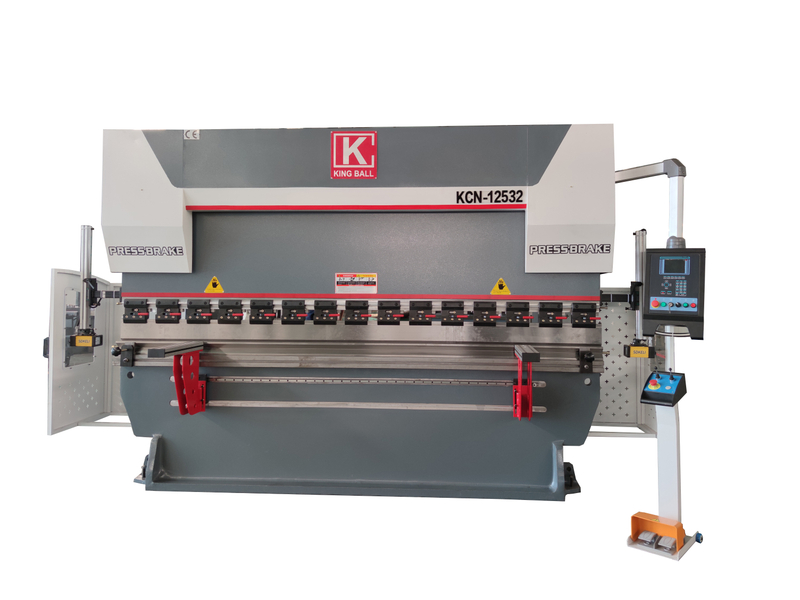

Torsion bar Synchronous CNC Press Brake

Main Features of the CNC Hydraulic Press Brake
1. The CNC hydraulic press brake is completely streamlined and meets EU production requirements. The body construction is completed by automated robotic welders and it undergoes a stress relief process with an annealing treatment.
2. The bending brake employs an integrated hydraulic system that is reliable and easy to maintain designed by Bosch-Rexroth in Germany.
3. Work pieces are bent with maximum precision thanks to the sheet metal bending machine's mechanical synchronous mechanism and complex compensator.
4. The stroke and distance of the metal bender's backgauge is automatically adjusted by the motor and can be adjusted by hand as well. The adjustments are displayed with digital meters.
5. Inch, single, and continuous operation modes are designed for the metal forming machine to be controlled using time relays.
6. A Safety barrier and electric interlocker are designed for the hydraulic press brake to ensure maximum operation safety.

Standard Designs for the Hydraulic Press Brake

The brake press is fitted with fast clamps
Plate support arms
Powered adjustment of axis depth
Backstop
Light guards
Top and bottom tooling
Estun E200 CNC control or Delem DA41CNC control
German Bosch-Rexroth hydraulic system
Telemecanique/Schneider Electric components
Hydraulic and electrical overload protection
Squaring arm and front support arms
Servo motor with ball screw and polished rod with 0.03 mm accuracy.

Torsion Bar Press Brake			KCN-6325	KCN-10032	KCN-10040	KCN-12532	KCN-12540	KCN-16032	KCN-16040	KCN-20032	KCN-20040
Capacity		kN	630	1000	1000	1250	1250	1600	1600	2000	2000
Max. Bending Length		mm	2500	3200	4000	3200	4000	3200	4000	3200	4000
Between Columns		mm	2100	2600	3100	2600	3100	2600	3100	2600	3100
Max. Shut Height		mm	365	410	410	410	410	480	480	480	480
Slide Stroke		mm	120	150	150	150	150	200	200	220	220
Throat Depth		mm	250	320	320	320	320	320	320	350	350
Down Speed		mm/min	120	100	100	100	100	100	100	100	100
Pressing Speed		mm/min	10	10	10	10	10	10	10	8	8
Return Speed		mm/min	90	90	90	90	90	90	90	90	90
Main Motor Power		kW	5.5	7.5	7.5	7.5	7.5	11	11	15	15
X axis stroke		mm	500	500	500	500	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300	300	300	300	300
R axis stroke		mm	150	150	150	150	150	150	150	150	150
R axis speed		mm/s	50	50	50	50	50	50	50	50	50
Outline Size	L	mm	3000	3700	4500	3700	4500	3700	4500	3700	4500
	W	mm	1500	1750	1750	1800	1800	1870	1920	1920	1950
	H	mm	2200	2630	2630	2630	2630	2700	2700	2780	2780
Weight		kg	4500	6800	7500	7200	8800	9600	11000	12500	13600

			KCN-25032	KCN-25040	KCN-25060	KCN-30032	KCN-30040	KCN-30060	KCN-40040	KCN-40050	KCN-40060
Capacity		kN	2500	2500	2500	3000	3000	3000	4000	4000	4000
Max. Bending Length		mm	3200	4000	6000	3200	4000	6000	4000	5000	6000
Between Columns		mm	2700	3200	5000	2700	3200	5000	3200	4000	5000
Max. Shut Height		mm	530	530	530	530	530	530	590	590	590
Slide Stroke		mm	250	250	250	250	250	250	300	300	300
Throat Depth		mm	400	400	400	400	400	400	500	500	500
Down Speed		mm/min	100	100	100	100	100	100	100	100	100
Pressing Speed		mm/min	8	8	8	8	8	8	7	7	7
Return Speed		mm/min	90	90	90	80	80	80	76	76	76
Main Motor Power		kW	18.5	18.5	18.5	22	22	22	30	30	30
X axis stroke		mm	500	500	500	500	500	500	600	600	600
X axis speed		mm/s	300	300	200	300	300	200	300	200	200
R axis stroke		mm	150	150	150	150	150	150	150	150	150
R axis speed		mm/s	50	50	50	50	50	50	50	50	50
Outline Size	L	mm	3700	4500	6500	3700	4500	6500	4500	5500	6500
	W	mm	2150	2150	2200	2180	2250	2300	2400	2600	2650
	H	mm	3000	3000	3400	3100	3200	3500	4000	4150	4300
Weight		kg	19000	20200	27500	20500	22500	30000	25000	29000	35000
