Upgrading fabrication equipment requires balancing upfront capital expenditure (Capex) with long-term operational efficiency (Opex). For modern sheet metal processing, legacy mechanical systems are no longer sufficient. Meanwhile, fully electric setups may lack necessary tonnage or easily exceed budget constraints.
You must bridge the gap between raw power and micro-level precision. We define the Electrohydraulic Synchronous CNC Press Brake as the industry standard. It serves facilities requiring versatile, heavy-duty forming combined with automated accuracy.
By leveraging closed-loop feedback systems and independent cylinder control, electrohydraulic press brakes offer the highest ROI. They perfectly suit mid-to-high volume fabricators seeking scalability, complex multi-axis bending, and true automation readiness.
**Precision Leap:** Transitions shop floor accuracy from typical 0.1mm (torsion-bar) to 0.01mm via closed-loop CNC systems.
**Unmatched Versatility:** Combines the high-tonnage capabilities of traditional hydraulics with the programmable logic of modern servo-driven valves.
**Future-Proof Scalability:** Easily integrates with automated robotic cells and multi-axis backgauges (4+ axes) for complex part geometries.
**Calculated ROI:** Offsets higher initial costs through drastic reductions in scrap rates, faster cycle times, and lower reliance on highly skilled legacy operators.
Fabricators relying on traditional torsion-axis machines face diminishing returns. These legacy systems use mechanical synchronization. They often produce inconsistent bend angles. You will notice high scrap rates, especially on long parts. Furthermore, these machines require a heavy reliance on operator experience. Veteran operators must manually tweak settings to compensate for mechanical wear. This manual calibration consumes valuable production time.

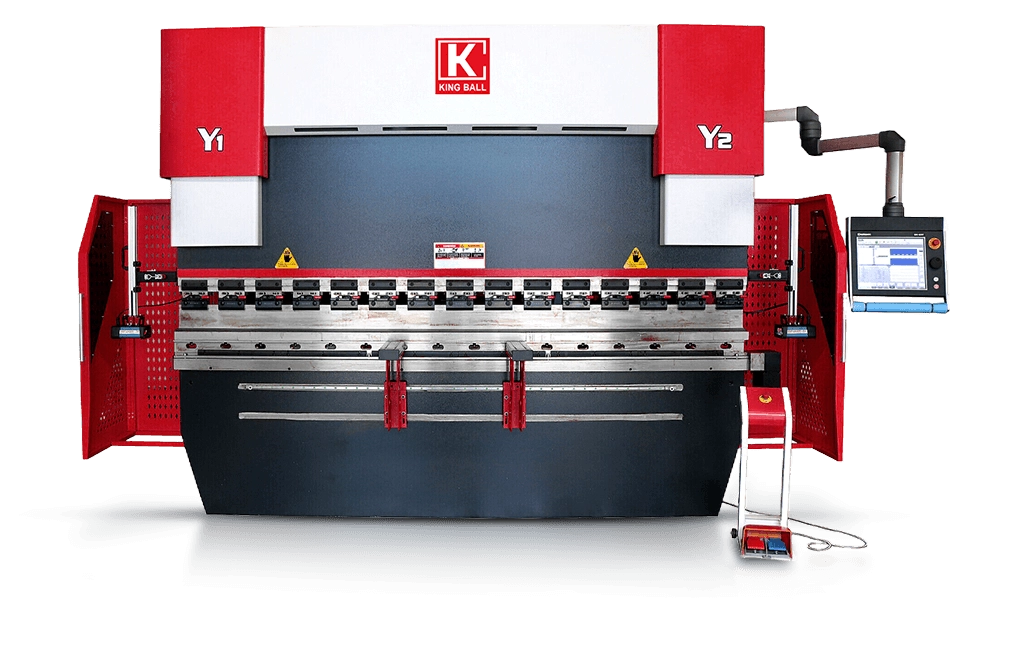

Modern engineering eliminates the mechanical torsion bar entirely. Instead, an Electrohydraulic Synchronous CNC Press Brake utilizes independent Y1 and Y2 cylinders. Precise electronic signals govern these cylinders. You no longer depend on a physical steel bar to force the ram down evenly. Digital precision takes over.
We can break this down into a direct feature-to-outcome relationship:
Feature: Dual linear optical encoders (grating rulers) dynamically monitor ram position on both sides of the machine.
Outcome: This eliminates asymmetric bending. If the load sits off-center, the system auto-corrects in milliseconds. You guarantee consistent angles across the entire bed length.
While torsion-bar machines are cheaper upfront, they carry significant hidden penalties. You will experience manual calibration downtime. You will face high material waste during complex production runs. A seasoned shop manager knows these production delays quickly erode any initial savings. Precision directly impacts your bottom line.
Think of this system as possessing a "Brain" and "Muscle." The CNC controller acts as the brain. It continuously compares the actual ram position against programmed values. Meanwhile, proportional servo valves serve as the muscle. They adjust hydraulic flow in real-time. If one side lags by even a fraction of a millimeter, the brain tells the valves to push more oil to that specific cylinder.
Mechanical systems typically operate at fixed speeds. Closed-loop electrohydraulic valves operate differently. They allow for rapid approach speeds. They enable highly controlled bending speeds. They also provide swift return strokes. You directly increase parts-per-hour output. Operators spend less time waiting for the ram to cycle and more time bending metal.
Heavy loads cause the press brake bed to bow slightly. Industry experts call this the "canoe effect." Electrohydraulic systems solve this by integrating CNC-controlled mechanical or hydraulic crowning systems. They automatically bow the bed upward to counteract ram deflection. You achieve perfectly straight bends on long parts without manual shimming.
Performance Chart: Torsion-Bar vs. Closed-Loop Synchronous
Feature Matrix | Legacy Torsion-Bar | Electrohydraulic Synchronous |
|---|---|---|
Synchronization Method | Mechanical steel bar | Digital closed-loop feedback |
Positional Accuracy | ±0.1 mm | ±0.01 mm |
Deflection Compensation | Manual or non-existent | Fully automated CNC crowning |
Off-Center Bending | Highly restricted | Fully supported via independent cylinders |
We must acknowledge the upfront numbers. An electrohydraulic system carries a higher initial price tag than basic hydraulic models. However, it costs significantly less than a fully electric press brake. You secure top-tier precision without overspending on pure electric drive systems. The investment targets long-term operational stability.
The manufacturing sector faces a severe shortage of skilled tradespeople. Electrohydraulic machines reduce the dependency on veteran "tribal knowledge." Modern CNC interfaces feature 3D visual programming. Less experienced operators can execute complex, multi-step bends. The controller calculates the bend sequence and backgauge positions automatically. You transform junior staff into highly productive operators rapidly.
You can further optimize Opex by selecting "Oil-Electric Hybrid" (Pump-Controlled) setups within this category. Traditional hydraulics run the pump constantly. Servo-pump hybrids operate differently. They only draw maximum power during the actual bending phase. This innovation delivers remarkable benefits:
Reduces factory electricity consumption by up to 30-50%.
Lowers hydraulic fluid temperatures significantly.
Extends the lifespan of hydraulic oil and internal seals due to lower heat generation.
Modern fabrication rarely involves simple 90-degree brackets. Electrohydraulic systems natively support advanced backgauges. You need this flexibility to process complex, asymmetrical parts in a single handling. A robust setup typically involves multiple axes:
X-Axis: Controls the inward and outward depth of the backgauge.
R-Axis: Controls the vertical height of the backgauge fingers.
Z1 & Z2 Axes: Independently control the left and right horizontal spacing of the fingers.
Y1 & Y2 Axes: Deliver independent cylinder control for precision ram leveling.
Manual handling becomes a bottleneck in high-volume environments. Because electrohydraulic synchronization is entirely digital, these machines serve as the perfect foundation for automated robotic bending cells. The CNC controller speaks the same digital language as industrial robots. You can seamlessly synchronize robotic arm movements with the press brake cycle.
Modern CNC controls allow for extensive production tracking. They integrate smoothly with factory ERP systems. You gain strict parameter logging capabilities. This traceability remains essential for aerospace, medical, or defense contractors. Auditors require proof of consistent manufacturing parameters, and these machines generate those logs automatically.
While highly advanced, these machines still rely on hydraulic fluid dynamics. We must remain transparent. They are not entirely maintenance-free like pure electric models. You trade some maintenance routines for massive tonnage capability and lower upfront costs. Understanding these dynamics ensures maximum machine uptime.
Operators must understand the "morning warm-up" reality. Hydraulic oil viscosity changes with ambient temperature. Cold oil behaves differently than warm oil. This thermal shift can slightly affect initial bend angles until the machine reaches its optimal operating temperature. It represents a minor issue. You can easily mitigate it by implementing standard morning Standard Operating Procedures (SOPs). Running the ram up and down for a few minutes stabilizes the fluid.
Consistent preventative maintenance protects your investment. Clean oil is the lifeblood of proportional servo valves. If contaminants enter the fluid, valve response times suffer. We recommend adhering strictly to the following milestones.
Standard Maintenance Schedule
Component | Inspection Interval | Replacement Action |
|---|---|---|
Hydraulic Oil Levels | Weekly | Top up as needed to maintain pressure. |
Oil Filters | Every 1,000 hours | Replace completely to protect servo valves. |
Hydraulic Fluid | Every 2,000 hours | Drain and replace to ensure correct viscosity. |
Cylinder Seals | Annually | Inspect for weeping; replace if worn. |
You cannot place a high-tonnage precision machine on a weak floor. Ensure your shop floor has an adequate structural concrete foundation. Heavy machines require deep, reinforced pads. Additionally, you must provide stable three-phase power. Voltage spikes can damage sensitive CNC electronics and optical encoders. Installing dedicated power conditioning equipment is highly recommended.
Selecting the right technology dictates your operational success for the next decade. Use this framework to guide your procurement strategy.
Your facility requires moderate to high tonnage (over 100 tons) for medium-to-thick plate fabrication.
You process complex parts requiring multi-axis backgauging and high repeatability (±0.01mm).
You plan to scale into robotic automation within the next 3–5 years.
You need high processing speeds but cannot justify the premium price of fully electric models.
Pure Electric: You exclusively bend very thin materials (under 3mm). You require extremely fast cycle times for small electronic parts. You prioritize zero-oil environments, such as medical cleanrooms.
Torsion-Bar: You operate a low-volume job shop doing simple brackets. Ultra-precision is not a strict requirement for your clients. Your capital budget constraints remain extremely rigid.
The electrohydraulic synchronous setup represents the undisputed "sweet spot" in metal fabrication equipment. It successfully merges raw hydraulic force with surgical digital precision. You gain the heavy lifting power of traditional hydraulics alongside the intelligence of closed-loop CNC technology.
Upgrading to this technology is not just about replacing an aging machine. It is a strategic move to eliminate process bottlenecks. You will drastically reduce material scrap rates. Furthermore, you will future-proof the production floor against skilled labor shortages and increasing automation demands.
We encourage buyers to take actionable next steps. Request a thorough time-study based on your specific part geometries. Analyze your material types and expected daily volumes. A detailed cycle-time comparison will quickly validate this powerful investment.
A: Torsion-bar machines generally hold tolerances around 0.1mm due to mechanical linkage wear and manual adjustments. Electrohydraulic systems use closed-loop feedback via optical encoders to constantly auto-correct. This allows them to achieve outstanding precision up to 0.01mm.
A: While the internal technology is highly advanced, modern CNC controllers actually make the machine easier to operate. The software calculates bending deductions, sequences, and backgauge positions automatically. This drastically reduces the need for manual trial-and-error traditionally performed by veteran operators.
A: Routine maintenance typically involves checking oil levels weekly. You should replace the hydraulic fluid and filters every 1,000 to 2,000 operating hours, depending on your workload. Clean oil is absolutely critical to protect the sensitive proportional servo valves from contamination.
